AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..LHD

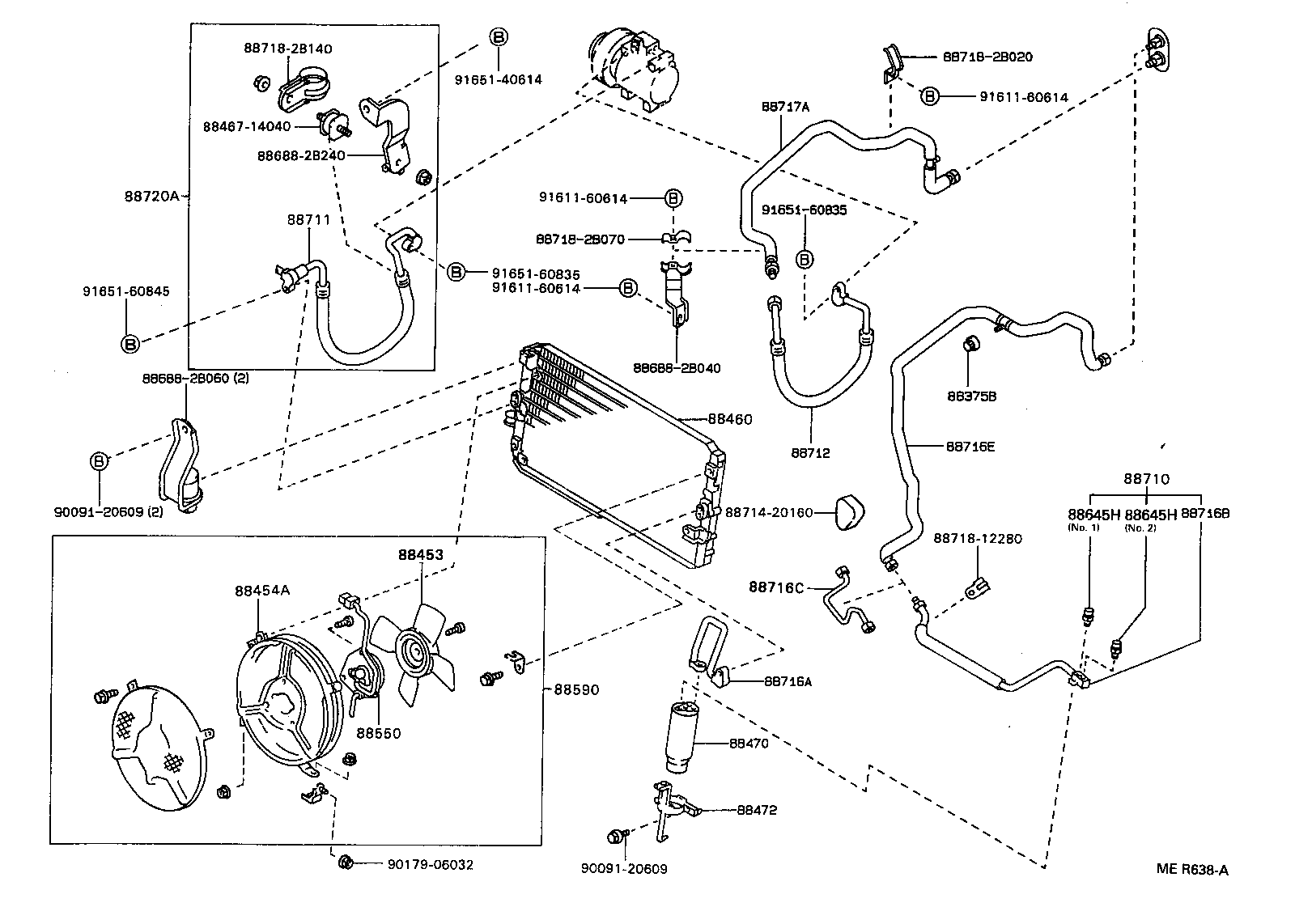

Click highlighted areas on diagram

diagram 88375B 88453 88454A 88460 8846714040 88470 88472 88550 88590 88645H 88645H 886882B040 886882B060 886882B240 88710 88711 88712 8871420160 88716A 88716B 88716C 88716E 88717A 8871812280 887182B020 887182B070 887182B140 88720A 9009120609 9009120609 9017906032 9161160614 9161160614 9161160614 9165140614 9165160835 9165160835 9165160845
Part # Description Qty Price
88454A - SHROUD, FAN
88454-20060

AT171

 1
88460 - CONDENSER ASSY, COOLER
88460-20260

AT171,ST171..LHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12010

AT171,ST171

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20040

AT171,ST171..LHD

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20180

AT171..G;AT171..RHD

 1
88710 - TUBE ASSY, AIR CONDITIONER
88706-20020

AT171,ST171..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20610

AT171

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20830

AT171..GL..G..CBR

 1
88712-20860

AT171..LHD..GL..CBR

W(*66)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B500

AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B500

CT170..RHD;AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B590

AT171..GL..G..CBR

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2B690

AT171..LHD..GL;AT171..XL..EFI

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B460

AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B600

AT171..LHD..GL..CBR

DEALER OPTION & W(*66)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20750

AT171,ST171..LHD

 1
Common parts
88467-14040
88688-2B040
88688-2B060
88688-2B240
88714-20160
88718-12280
88718-2B020
88718-2B070
88718-2B140
90091-20609
90179-06032
91611-60614
91651-40614
91651-60835
91651-60845
