AT171L-ALMNUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )

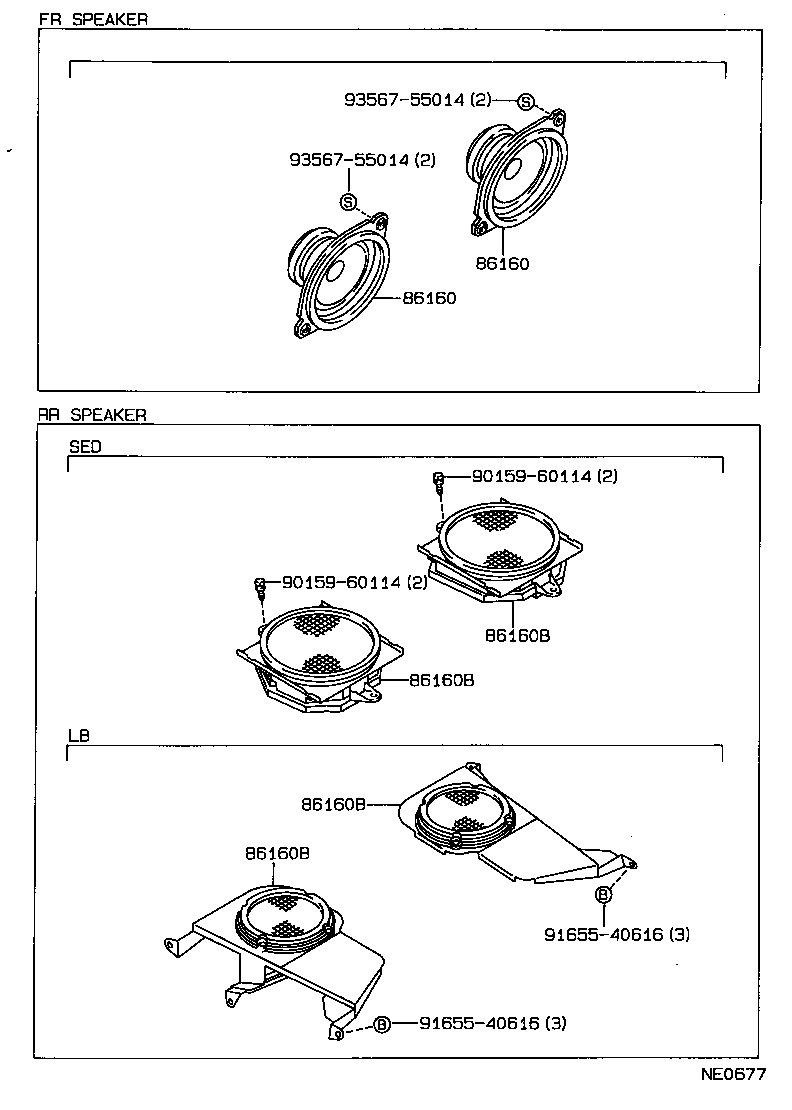

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20320 |
AT171,CT170,ST171 MATSUSHITA |
2 | ||
| 86160-12280 |
AT171,CT170,ST171 TEN |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20320 |
AT171,CT170,ST171 MATSUSHITA |
2 | ||
| 86160-12280 |
AT171,CT170,ST171 TEN |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20340 |
AT171,CT170,ST171..LB RH |
1 | ||
| 86160-20350 |
AT171,CT170,ST171..LB LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20340 |
AT171,CT170,ST171..LB RH |
1 | ||
| 86160-20350 |
AT171,CT170,ST171..LB LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20340 |
AT171,CT170,ST171..LB RH |
1 | ||
| 86160-20350 |
AT171,CT170,ST171..LB LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20340 |
AT171,CT170,ST171..LB RH |
1 | ||
| 86160-20350 |
AT171,CT170,ST171..LB LH |
1 | ||
| Common parts | ||||
| 90159-60114 | ||||
| 91655-40616 | ||||
| 93567-55014 | ||||
