AT171L-ALMNUG (1987)
Toyota Carina 2
(8712-8911)

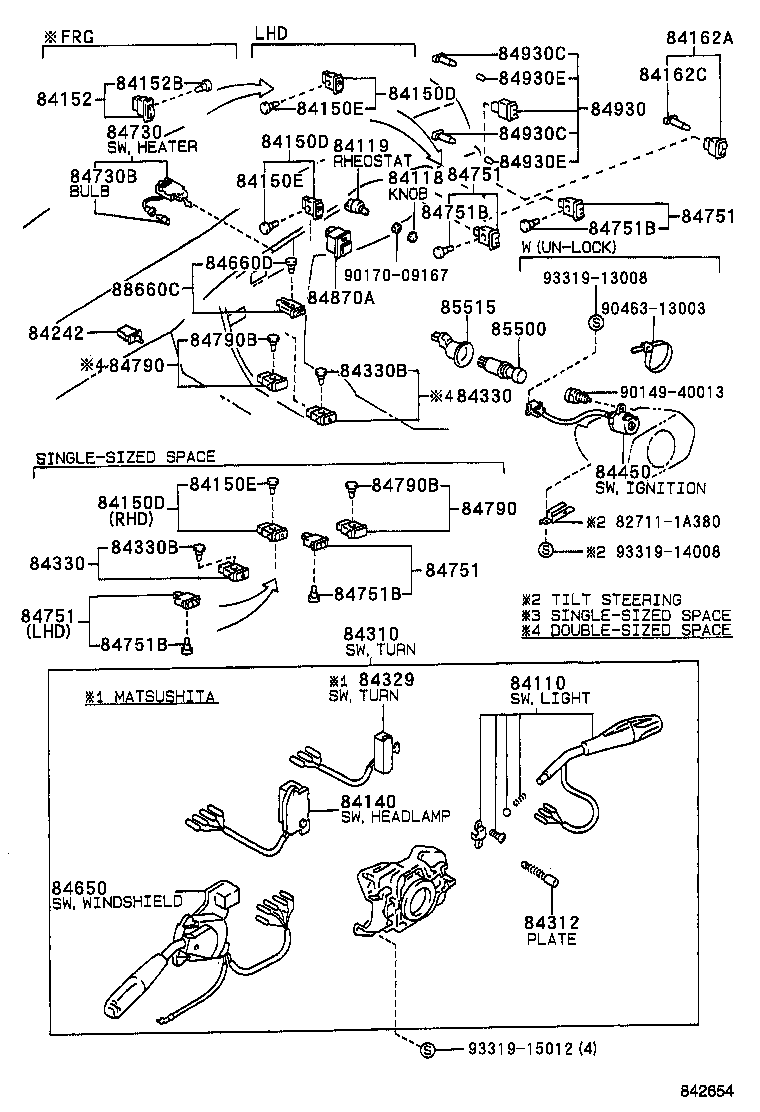

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80001 |
AT171,CT170,ST171..LHD MATSUSHITA |
1 | ||
| 84112-80002 |
AT171,CT170,ST171..LHD TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
AT171,CT170,ST171 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AT171,CT170,ST171 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AT171,CT170,ST171..LHD MATSUSHITA |
1 | ||
| 84140-12260 |
AT171,CT170,ST171..LHD TOKAIRIKA |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-20020 |
AT171,CT170,ST171..LHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-20020 |
AT171,CT170,ST171..LHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-20020 |
AT171,CT170,ST171..LHD |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-20080 |
AT171,CT170,ST171 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10130 |
AT171,CT170,ST171 12V 0.56W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT171,CT170,ST171..GL |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2D760 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 84310-2D780 |
AT171,CT170,ST171..LHD..LB W(*VIW) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AT171,CT170,ST171 TOKAIRIKA |
1 | ||
| 84312-12050 |
AT171,CT170,ST171 MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AT171,CT170,ST171..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20210 |
AT171,CT170,ST171 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20210 |
AT171,CT170,ST171 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12160 |
AT171 W(TILT STEERING) OR W(*EL) |
1 | ||
| 84450-12150 |
AT171,CT170,ST171 |
1 | ||
| 84450-12150 |
AT171 W(POWER STEERING & TILT STEERING) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2B890 |
AT171,CT170,ST171..LHD..LB MATSUSHITA |
1 | ||
| 84652-2B880 |
AT171,CT170,ST171..LHD..LB TOKAIRIKA |
1 | ||
| 84652-2D020 |
AT171,CT170,ST171..LHD..LB W(*VIW),TOKAIRIKA |
1 | ||
| 84652-2D010 |
AT171,CT170,ST171..LHD..LB W(*VIW),MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20210 |
AT171,CT170,ST171 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT171,CT170,ST171 14V 1.4W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20070 |
AT171,CT170,ST171..LHD DOUBLE-SIZED SPACE |
2 | ||
| 84751-20060 |
AT171,CT170,ST171..LHD SINGLE-SIZED SPACE |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20070 |
AT171,CT170,ST171..LHD DOUBLE-SIZED SPACE |
2 | ||
| 84751-20060 |
AT171,CT170,ST171..LHD SINGLE-SIZED SPACE |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20070 |
AT171,CT170,ST171..LHD DOUBLE-SIZED SPACE |
2 | ||
| 84751-20060 |
AT171,CT170,ST171..LHD SINGLE-SIZED SPACE |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20070 |
AT171,CT170,ST171..LHD DOUBLE-SIZED SPACE |
2 | ||
| 84751-20060 |
AT171,CT170,ST171..LHD SINGLE-SIZED SPACE |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20240 |
AT171,CT170,ST171 |
1 | ||
| 84790-20250 |
AT171,CT170..LHD..(CBR,DSL) W(TIMER) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20240 |
AT171,CT170,ST171 |
1 | ||
| 84790-20250 |
AT171,CT170..LHD..(CBR,DSL) W(TIMER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
ST171..LB;AT171,CT170..GL;ST171..LHD..SED |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-16010J0 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
AT171,CT170,ST171..LB,SED SHADOW GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AT171,CT170,ST171 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-20030 |
AT171,CT170,ST171 |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-20130 |
AT171,CT170,ST171..LHD |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90170-09167 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||

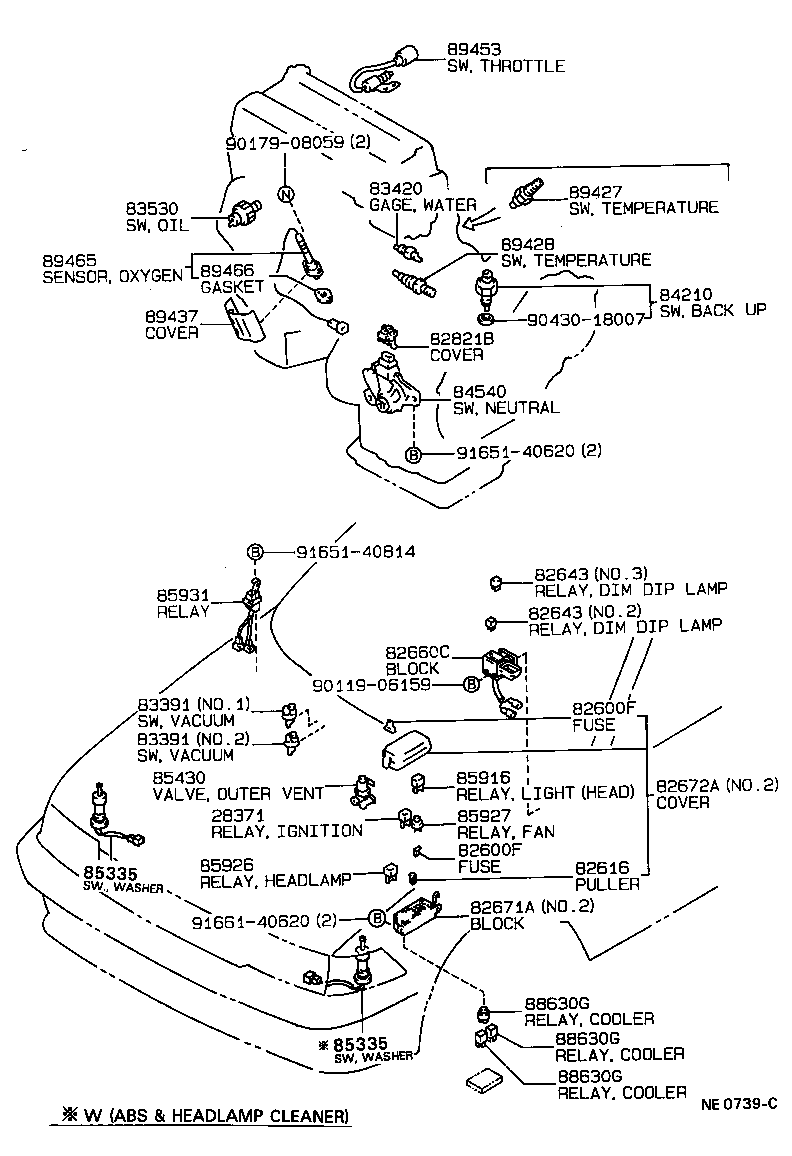

(8712- )CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4AF#,2C,3SFE..AT171,CT170,ST171 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT171,CT170,ST171..LHD 10A |
3 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
5 | ||
| 90982-09003 |
AT171..SED..GL..G..CBR;AT171..LB..5F..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171,CT170,ST171 15A |
5 | ||
| 90982-09003 |
AT171,CT170,ST171..LHD 15A |
2 | ||
| 90982-09004 |
AT171,CT170,ST171 20A,YELLOW |
1 | ||
| 90982-07011 |
AT171,CT170,ST171 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT171,CT170,ST171..LHD 10A |
3 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
5 | ||
| 90982-09003 |
AT171..SED..GL..G..CBR;AT171..LB..5F..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171,CT170,ST171 15A |
5 | ||
| 90982-09003 |
AT171,CT170,ST171..LHD 15A |
2 | ||
| 90982-09004 |
AT171,CT170,ST171 20A,YELLOW |
1 | ||
| 90982-07011 |
AT171,CT170,ST171 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AT171,CT170,ST171 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20120 |
CT170,ST171..LHD;AT171..LHD..(LB,WG);AT171..LHD..SED..4FC;AT171..SED..5F..XL..G;AT171..LHD..SED..5F..GL NO.3 |
1 | ||
| 82671-20120 |
AT171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20100 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W NO.1 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20140 |
AT171,ST171..LHD..GL;AT171..SED..5F..XL..W NO.3 |
1 | ||
| 82671-32030 |
AT171..CBR NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20440 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20441 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20340 |
AT171,CT170,ST171..LHD NO.1 |
1 | ||
| 82672-20320 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171..G..CBR NO.2 |
1 | ||
| 83391-12210 |
AT171..G..CBR NO.1 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171..G..CBR NO.2 |
1 | ||
| 83391-12210 |
AT171..G..CBR NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AT171,ST171 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AT171 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AT171,CT170,ST171..5F |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09011 |
AT171..G..CBR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT171,CT170,ST171 HEADLAMP |
1 | ||
| 90987-02002 |
AT171,CT170,ST171 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
AT171,CT170,ST171 TAIL LAMP,*ND |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
AT171,CT170,ST171..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AT171,CT170,ST171 |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-20020 |
AT171..G..CBR |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-20090 |
AT171..CBR MB4 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..CBR M4 TYPE |
1 | ||
| 88630-20090 |
AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR MB4 TYPE |
1 | ||
| 88630-32010 |
ST171..XL;AT171..CBR;ST171..RHD MB5 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR M4 TYPE |
1 | ||
| 88630-32010 |
ST171..RHD;AT171..(LB,WG)..CBR;AT171,ST171..XL..EFI;AT171..LHD..SED..CBR MB5 TYPE |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-20090 |
AT171..CBR MB4 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..CBR M4 TYPE |
1 | ||
| 88630-20090 |
AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR MB4 TYPE |
1 | ||
| 88630-32010 |
ST171..XL;AT171..CBR;ST171..RHD MB5 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR M4 TYPE |
1 | ||
| 88630-32010 |
ST171..RHD;AT171..(LB,WG)..CBR;AT171,ST171..XL..EFI;AT171..LHD..SED..CBR MB5 TYPE |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-20090 |
AT171..CBR MB4 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..CBR M4 TYPE |
1 | ||
| 88630-20090 |
AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR MB4 TYPE |
1 | ||
| 88630-32010 |
ST171..XL;AT171..CBR;ST171..RHD MB5 TYPE |
1 | ||
| 90987-02004 |
ST171..XL;AT171..(LB,WG)..CBR;AT171..LHD..SED..CBR M4 TYPE |
1 | ||
| 88630-32010 |
ST171..RHD;AT171..(LB,WG)..CBR;AT171,ST171..XL..EFI;AT171..LHD..SED..CBR MB5 TYPE |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AT171..G..CBR |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AT171 ENGINE |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-32020 |
ST171..G;AT171..G..CBR |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12040 |
AT171..G..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29245 |
ST171..G;AT171..G..CBR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AT171,ST171..G |
1 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91661-40620 | ||||

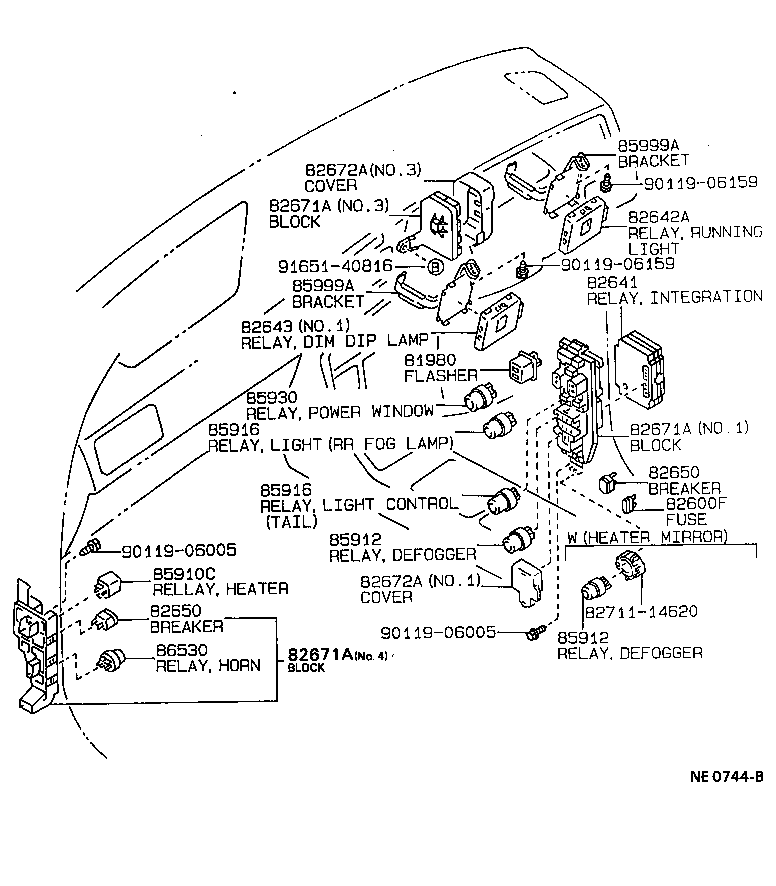

(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT171,CT170,ST171 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT171,CT170,ST171..LHD 10A |
3 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
5 | ||
| 90982-09003 |
AT171..SED..GL..G..CBR;AT171..LB..5F..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171..GL..G..CBR 15A |
1 | ||
| 90982-09003 |
AT171,CT170,ST171 15A |
5 | ||
| 90982-09003 |
AT171,CT170,ST171..LHD 15A |
2 | ||
| 90982-09004 |
AT171,CT170,ST171 20A,YELLOW |
1 | ||
| 90982-07011 |
AT171,CT170,ST171 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AT171,CT170,ST171 7.5A |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20110 |
AT171,CT170,ST171 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-32030 |
ST171..G;AT171..G..CBR |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT171,CT170,ST171 30A |
1 | ||
| 82650-20020 |
AT171,CT170,ST171 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT171,CT170,ST171 30A |
1 | ||
| 82650-20020 |
AT171,CT170,ST171 40A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20120 |
CT170,ST171..LHD;AT171..LHD..(LB,WG);AT171..LHD..SED..4FC;AT171..SED..5F..XL..G;AT171..LHD..SED..5F..GL NO.3 |
1 | ||
| 82671-20120 |
AT171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20100 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W NO.1 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20140 |
AT171,ST171..LHD..GL;AT171..SED..5F..XL..W NO.3 |
1 | ||
| 82671-32030 |
AT171..CBR NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20120 |
CT170,ST171..LHD;AT171..LHD..(LB,WG);AT171..LHD..SED..4FC;AT171..SED..5F..XL..G;AT171..LHD..SED..5F..GL NO.3 |
1 | ||
| 82671-20120 |
AT171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20100 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W NO.1 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20140 |
AT171,ST171..LHD..GL;AT171..SED..5F..XL..W NO.3 |
1 | ||
| 82671-32030 |
AT171..CBR NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20120 |
CT170,ST171..LHD;AT171..LHD..(LB,WG);AT171..LHD..SED..4FC;AT171..SED..5F..XL..G;AT171..LHD..SED..5F..GL NO.3 |
1 | ||
| 82671-20120 |
AT171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20100 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W NO.1 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20120 |
AT171..GL..G W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3 |
1 | ||
| 82671-20140 |
AT171,ST171..LHD..GL;AT171..SED..5F..XL..W NO.3 |
1 | ||
| 82671-32030 |
AT171..CBR NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20440 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20441 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20340 |
AT171,CT170,ST171..LHD NO.1 |
1 | ||
| 82672-20320 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20440 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20441 |
AT171..LHD..CBR NO.2 |
1 | ||
| 82672-20340 |
AT171,CT170,ST171..LHD NO.1 |
1 | ||
| 82672-20320 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT171,CT170,ST171 NO.1 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
ST171..LHD..GL;AT171..LHD..GL..CBR FR & RR |
2 | ||
| 90987-02004 |
AT171,CT170,ST171 NIPPONDENSO,RR |
1 | ||
| 90987-02002 |
AT171,CT170,ST171 MARUKO,RR |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
ST171..LHD..GL;AT171..LHD..GL..CBR FR & RR |
2 | ||
| 90987-02004 |
AT171,CT170,ST171 NIPPONDENSO,RR |
1 | ||
| 90987-02002 |
AT171,CT170,ST171 MARUKO,RR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT171,CT170,ST171 HEADLAMP |
1 | ||
| 90987-02002 |
AT171,CT170,ST171 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
AT171,CT170,ST171 TAIL LAMP,*ND |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT171,CT170,ST171 HEADLAMP |
1 | ||
| 90987-02002 |
AT171,CT170,ST171 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
AT171,CT170,ST171 TAIL LAMP,*ND |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
AT171,CT170,ST171 MARUKO |
1 | ||
| 90987-02004 |
AT171,CT170,ST171 NIPPONDENSO |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-20310 |
ST171..G;AT171..G..CBR |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-20310 |
ST171..G;AT171..G..CBR |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AT171,CT170,ST171 MARUKO |
1 | ||
| 90987-02004 |
AT171,CT170,ST171 NIPPONDENSO |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90119-06005 | ||||
| 90119-06159 | ||||
| 91651-40816 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

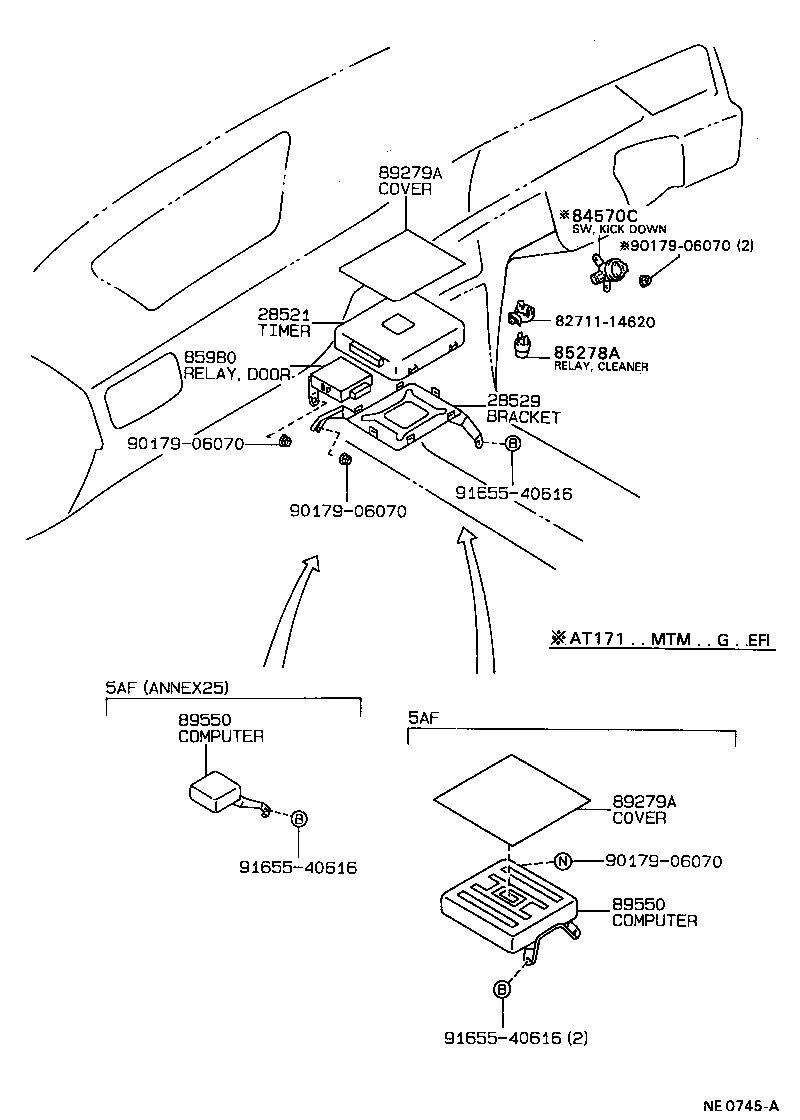

| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20110 |
AT171..G..CBR |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12040 |
AT171..G..CBR |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12040 |
AT171..G..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-20550 |
AT171..G..CBR ANNEX 25 |
1 | ||
| 89550-20560 |
AT171..G..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-20550 |
AT171..G..CBR ANNEX 25 |
1 | ||
| 89550-20560 |
AT171..G..CBR |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

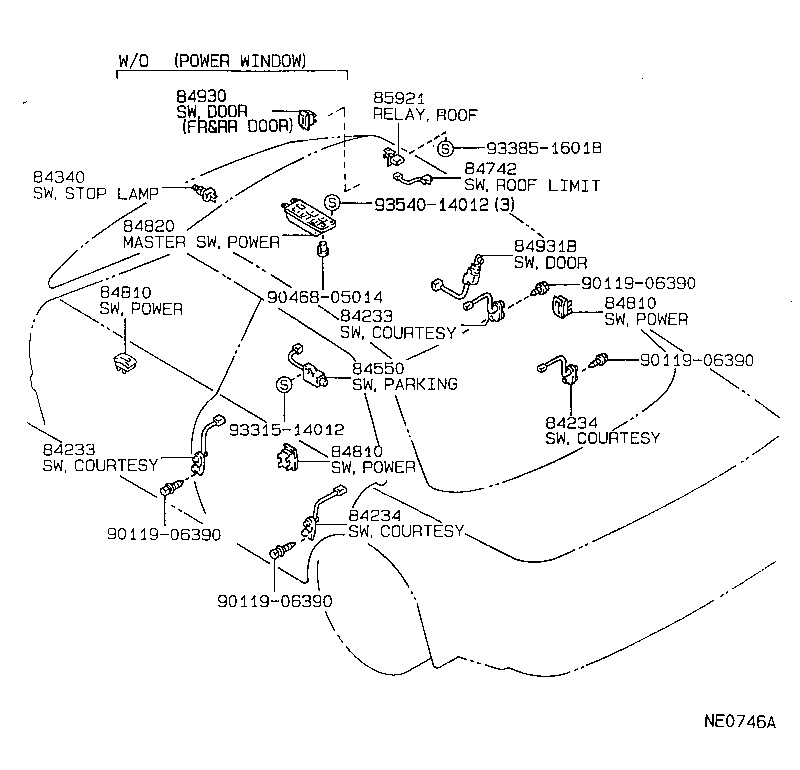

| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
AT171,CT170,ST171 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
AT171,CT170,ST171 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-32020 |
AT171,CT170,ST171 |
2 | ||
| 84231-20160 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-32020 |
AT171,CT170,ST171 |
2 | ||
| 84231-20160 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AT171,CT170,ST171 TOKAIRIKA |
1 | ||
| 84340-30030 |
AT171,CT170,ST171 MATSUSHITA |
1 | ||
| 84340-30030 |
AT171,CT170,ST171 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
AT171,CT170,ST171 |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20030 |
AT171,CT170,ST171 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2009006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4#,REAR DOOR |
2 | ||
| 84810-2009003 |
AT171,CT170,ST171 GRAY,TRIM1#,REAR DOOR |
2 | ||
| 84810-30130 |
AT171,CT170,ST171 FRONT DOOR |
1 | ||
| 84810-2009004 |
AT171,CT170,ST171 BLUE,TRIM8#,REAR DOOR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2009006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4#,REAR DOOR |
2 | ||
| 84810-2009003 |
AT171,CT170,ST171 GRAY,TRIM1#,REAR DOOR |
2 | ||
| 84810-30130 |
AT171,CT170,ST171 FRONT DOOR |
1 | ||
| 84810-2009004 |
AT171,CT170,ST171 BLUE,TRIM8#,REAR DOOR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2009006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4#,REAR DOOR |
2 | ||
| 84810-2009003 |
AT171,CT170,ST171 GRAY,TRIM1#,REAR DOOR |
2 | ||
| 84810-30130 |
AT171,CT170,ST171 FRONT DOOR |
1 | ||
| 84810-2009004 |
AT171,CT170,ST171 BLUE,TRIM8#,REAR DOOR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20240 |
AT171,CT170,ST171..LHD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-16010J0 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
AT171,CT170,ST171..LB,SED SHADOW GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-29025 |
AT171,CT170,ST171 |
1 | ||
| 84931-20071 |
AT171,CT170,ST171 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-30020 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90468-05014 | ||||
| 93315-14012 | ||||
| 93385-16018 | ||||
| 93540-14012 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

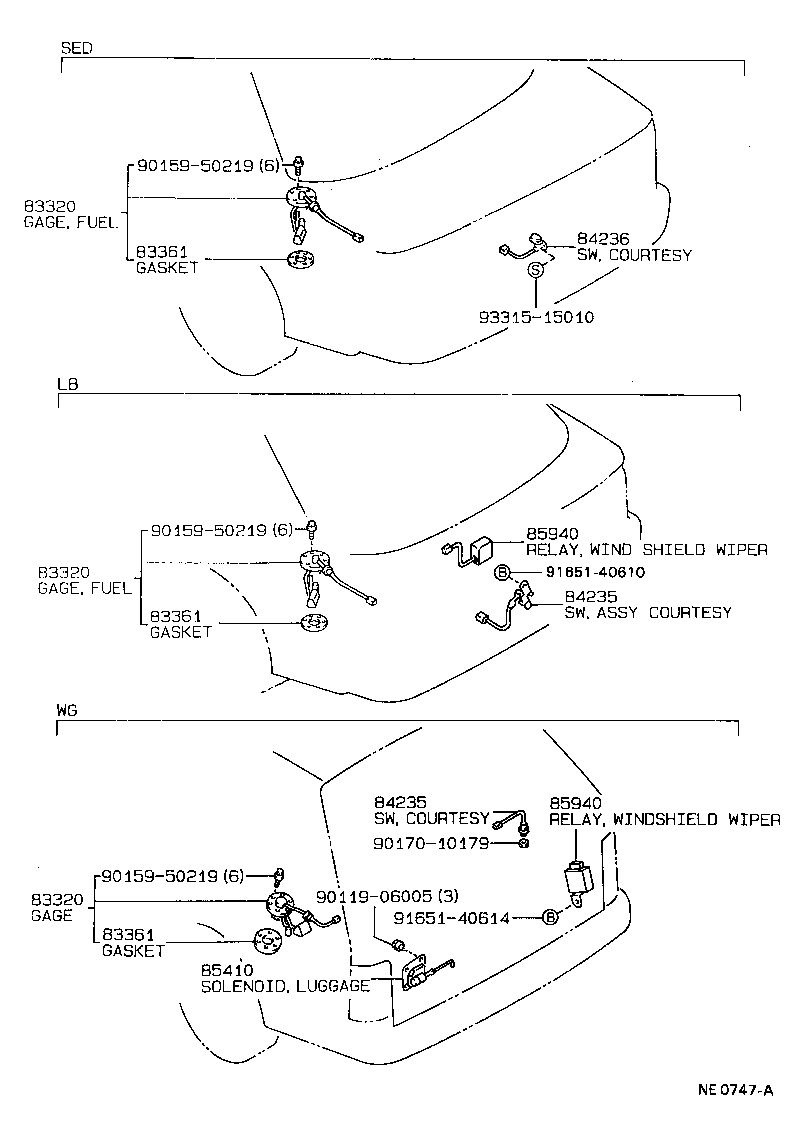

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80097 |
AT171,ST171 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80097 |
AT171,ST171 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80097 |
AT171,ST171 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AT171,CT170,ST171 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AT171,CT170,ST171 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AT171,CT170,ST171 |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20140 |
AT171,CT170,ST171..LB |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20140 |
AT171,CT170,ST171..LB |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20090 |
AT171,CT170,ST171..LB |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20090 |
AT171,CT170,ST171..LB |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90159-50219 | ||||
| 90170-10179 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
