AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

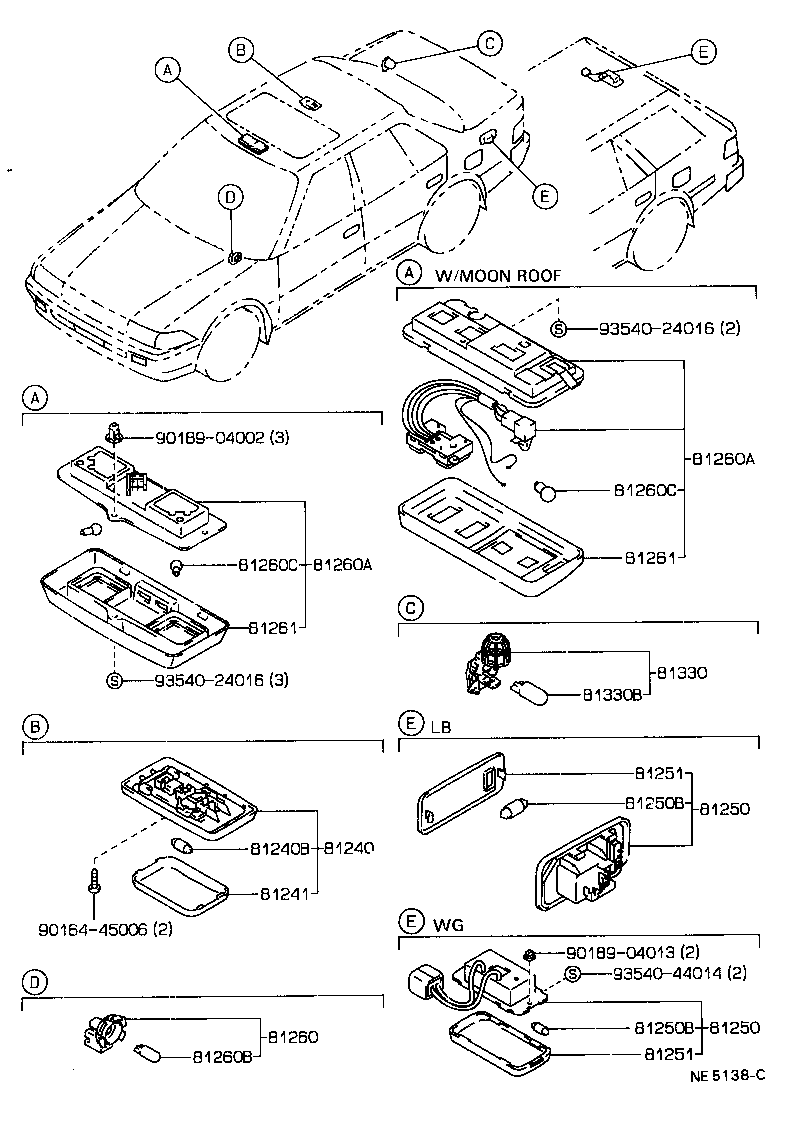

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81251 81251 81260 81260A 81260A 81260B 81260C 81260C 81261 81261 81330 81330B 9016445006 9018904002 9018904013 9354024016 9354024016 9354044014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2009004

AT171,CT170,ST171

W(MOON ROOF),BLUE,TRIM8#

 1
81240-2010004

AT171,CT170,ST171

BLUE,TRIM8#

 1
81240-2010003

AT171,CT170,ST171

GRAY,TRIM1#

 1
81240-2010006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
81240-2009003

AT171,CT170,ST171

W(MOON ROOF),GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AT171,CT170,ST171

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20090

AT171,CT170,ST171

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1203003

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 1
81250-1203004

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
81250-1203006

AT171,CT170,ST171..LB

BROWN,TRIM4#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1203003

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 1
81250-1203004

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
81250-1203006

AT171,CT170,ST171..LB

BROWN,TRIM4#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT171,CT170,ST171..LB

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT171,CT170,ST171..LB

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AT171,CT170,ST171..LB

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AT171,CT170,ST171..LB

 1
81260 - LAMP ASSY, GLOVE BOX
81260-32071

AT171,CT170,ST171..GL

 1
81260A - LAMP ASSY, MAP
81260-2013003

AT171,CT170,ST171..GL

GRAY,TRIM1#

 1
81260-2015004

AT171,CT170,ST171..GL

W(MOON ROOF),BLUE,TRIM8#

 1
81260-2013004

AT171,CT170,ST171..GL

BLUE,TRIM8#

 1
81260-2015006

AT171,CT170,ST171..(LB,SED)..GL

W(MOON ROOF),SABLE,TRIM4#

 1
81260-2013006

AT171,CT170,ST171..(LB,SED)..GL

SABLE,TRIM4#

 1
81260-2015003

AT171,CT170,ST171..GL

W(MOON ROOF),GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-2013003

AT171,CT170,ST171..GL

GRAY,TRIM1#

 1
81260-2015004

AT171,CT170,ST171..GL

W(MOON ROOF),BLUE,TRIM8#

 1
81260-2013004

AT171,CT170,ST171..GL

BLUE,TRIM8#

 1
81260-2015006

AT171,CT170,ST171..(LB,SED)..GL

W(MOON ROOF),SABLE,TRIM4#

 1
81260-2013006

AT171,CT170,ST171..(LB,SED)..GL

SABLE,TRIM4#

 1
81260-2015003

AT171,CT170,ST171..GL

W(MOON ROOF),GRAY,TRIM1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

AT171,CT170,ST171..GL

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT171,CT170,ST171..GL

12V 10W,W(MOON ROOF)

 1
90981-12005

AT171,CT170,ST171..GL

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

AT171,CT170,ST171..GL

12V 10W,W(MOON ROOF)

 1
90981-12005

AT171,CT170,ST171..GL

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-2015006

AT171,CT170,ST171..(LB,SED)..GL

W(MOON ROOF),SABLE,TRIM4#

 1
81261-2015004

AT171,CT170,ST171..GL

W(MOON ROOF),BLUE,TRIM8#

 1
81261-2015003

AT171,CT170,ST171..GL

W(MOON ROOF),GRAY,TRIM1#

 1
81261-2013006

AT171,CT170,ST171..(LB,SED)..GL

SABLE,TRIM4#

 1
81261-2013003

AT171,CT170,ST171..GL

GRAY,TRIM1#

 1
81261-2013004

AT171,CT170,ST171..GL

BLUE,TRIM8#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2015006

AT171,CT170,ST171..(LB,SED)..GL

W(MOON ROOF),SABLE,TRIM4#

 1
81261-2015004

AT171,CT170,ST171..GL

W(MOON ROOF),BLUE,TRIM8#

 1
81261-2015003

AT171,CT170,ST171..GL

W(MOON ROOF),GRAY,TRIM1#

 1
81261-2013006

AT171,CT170,ST171..(LB,SED)..GL

SABLE,TRIM4#

 1
81261-2013003

AT171,CT170,ST171..GL

GRAY,TRIM1#

 1
81261-2013004

AT171,CT170,ST171..GL

BLUE,TRIM8#

 1
Common parts
90164-45006
90189-04002
90189-04013
93540-24016
93540-44014
