AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB

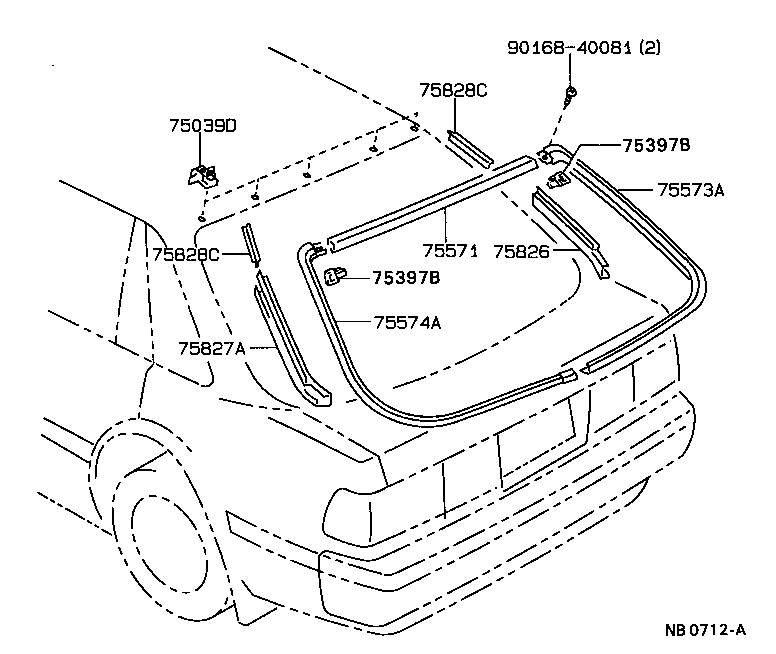

Click highlighted areas on diagram

diagram 75039D 75397B 75397B 75571 75573A 75574A 75826 75827A 75828C 75828C 9016840081
Part # Description Qty Price
75039D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-20010

AT171,CT170,ST171..LB

 5
75397B - CLIP, BACK WINDOW MOULDING, NO.3
75397-20060

AT171,CT170,ST171..LB

RH

 1
75398-20030

AT171,CT170,ST171..LB

LH

 1
75397B - CLIP, BACK WINDOW MOULDING, NO.3
75397-20060

AT171,CT170,ST171..LB

RH

 1
75398-20030

AT171,CT170,ST171..LB

LH

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-20280

AT171,CT170,ST171..LB

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-20220

AT171,CT170,ST171..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-20210

AT171,CT170,ST171..LB

 1
75826 - PAD, BACK DOOR OUTSIDE MOULDING, RH
75826-20010

AT171,CT170,ST171..LB

 1
75827A - PAD, BACK DOOR OUTSIDE MOULDING, LH
75827-20030

AT171,CT170,ST171..LB

 1
75828C - PROTECTOR, BACK DOOR OUTSIDE MOULDING
75828-20020

AT171,CT170,ST171..LB

 2
75828C - PROTECTOR, BACK DOOR OUTSIDE MOULDING
75828-20020

AT171,CT170,ST171..LB

 2
Common parts
90168-40081
