AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

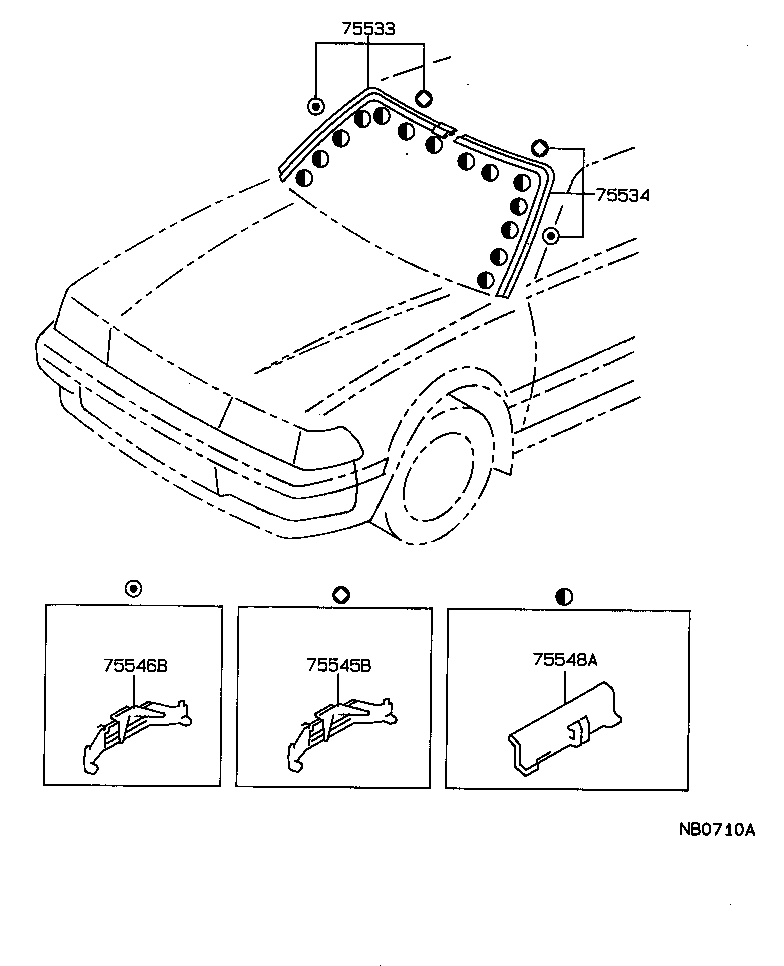

Click highlighted areas on diagram

diagram 75533 75534 75545B 75546B 75548A
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-20270

AT171,CT170,ST171

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-20280

AT171,CT170,ST171

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-20080

AT171,CT170,ST171

 6
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-20110

AT171,CT170,ST171

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20110

AT171,CT170,ST171

 14
