AT171L-ALMNUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )LB

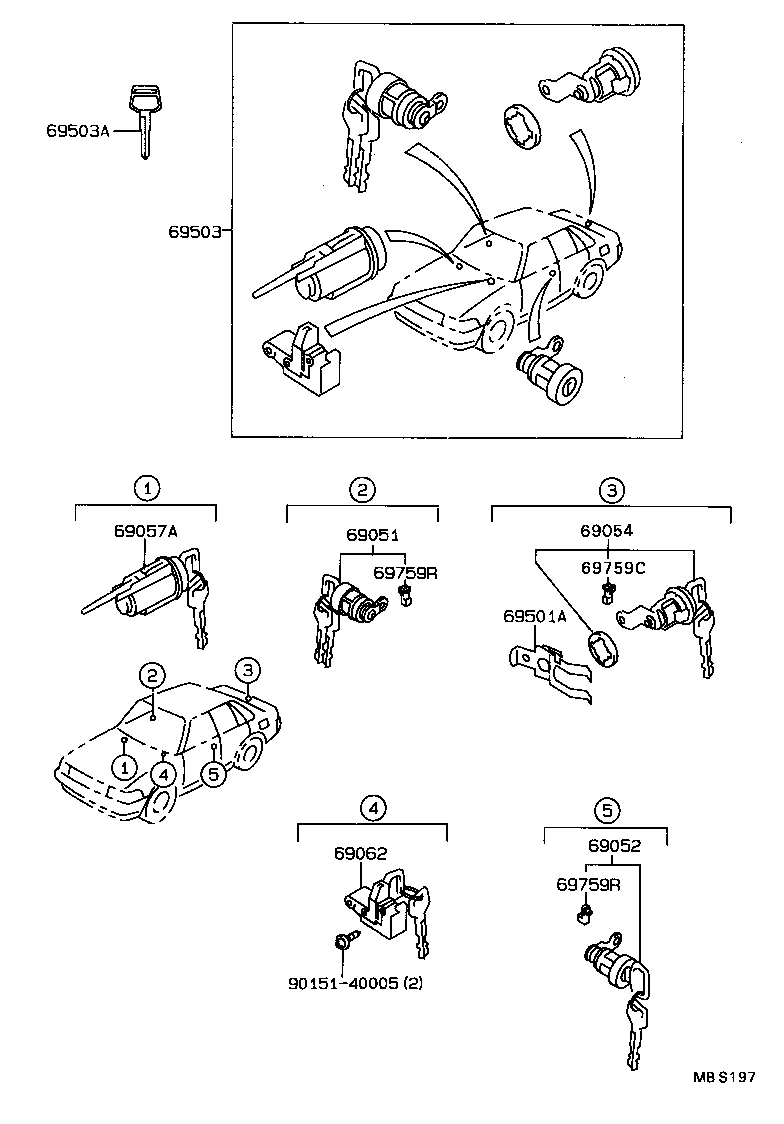

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-20220 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-20210 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-20340 |
AT171,CT170,ST171..LB |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20200 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-20140 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 69501A - RETAINER SUB-ASSY, BACK DOOR CYLINDER | ||||
| 69501-20040 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-20820 |
AT171,CT170,ST171..LB |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00150 |
AT171,CT170,ST171..LB,SED SUB KEY,W(*68) |
1 | ||
| 90999-00149 |
AT171,CT170,ST171..LB,SED MASTER KEY,W(*68) |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-20090 |
AT171,CT170,ST171..LB |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-20090 |
AT171,CT170,ST171 LH |
1 | ||
| 69759-20080 |
AT171,CT170,ST171 RH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-20090 |
AT171,CT170,ST171 LH |
1 | ||
| 69759-20080 |
AT171,CT170,ST171 RH |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
