AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB,SED

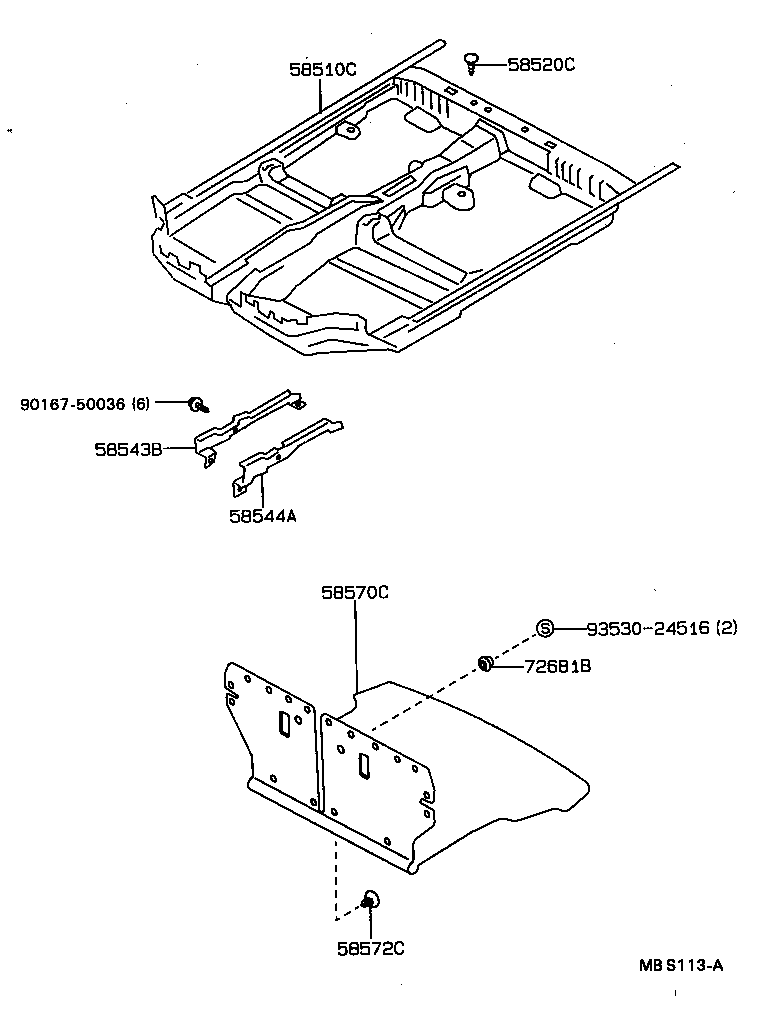

Click highlighted areas on diagram

diagram 58510C 58520C 58543B 58544A 58570C 58572C 72681B 9016750036 9353024516
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2B36006

AT171,ST171..LHD..LB..GL

SABLE,TRIM4#

 1
58510-2B36003

AT171,ST171..LHD..LB..GL

GRAY,TRIM1#

 1
58510-2B37003

AT171,ST171..LHD..LB..GL

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

 1
58510-2B37004

AT171,ST171..LHD..LB..GL

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

 1
58510-2B37006

AT171,ST171..LHD..LB..GL

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

 1
58510-2B36004

AT171,ST171..LHD..LB..GL

BLUE,TRIM8#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-20010

AT171,CT170,ST171

 1
58543-20010

CT170..RHD;AT171..RHD..XL;AT171,ST171..LB,SED;CT170..(LB,SED)..XL

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20010

AT171,CT170,ST171

 1
58544-20010

CT170..RHD;AT171..RHD..XL;AT171,ST171..LB,SED;CT170..(LB,SED)..XL

 1
58570C - CARPET ASSY, REAR FLOOR
58571-2009003

AT171,CT170,ST171..LB..GL

GRAY,TRIM1#

 1
58571-2009006

AT171,CT170,ST171..LB..GL

SABLE,TRIM4#

 1
58571-2009004

AT171,CT170,ST171..LB..GL

BLUE,TRIM8#

 1
58571-2012004

AT171,CT170,ST171..LB..GL

BLUE,TRIM8#

 1
58571-2012003

AT171,CT170,ST171..LB..GL

GRAY,TRIM1#

 1
58571-2012006

AT171,CT170,ST171..LB..GL

SABLE,TRIM4#

 1
58572C - CLIP, REAR FLOOR MAT SET
90467-0601657

AT171,CT170,ST171..LB

SABLE,TRIM4#

 19
90467-0601633

AT171,CT170,ST171..LB

GRAY,TRIM1#

 19
90467-0601640

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 19
72681B - HOOK, REAR SEAT BACK LOCK, LOWER
72681-2001004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 2
72681-16010J1

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 2
72681-1601036

AT171,CT170,ST171..LB

SABLE,TRIM4#

 2
72681-1601034

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 2
72681-1601033

AT171,CT170,ST171..LB

GRAY,TRIM1#

 2
Common parts
90167-50036
93530-24516
