AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LHD

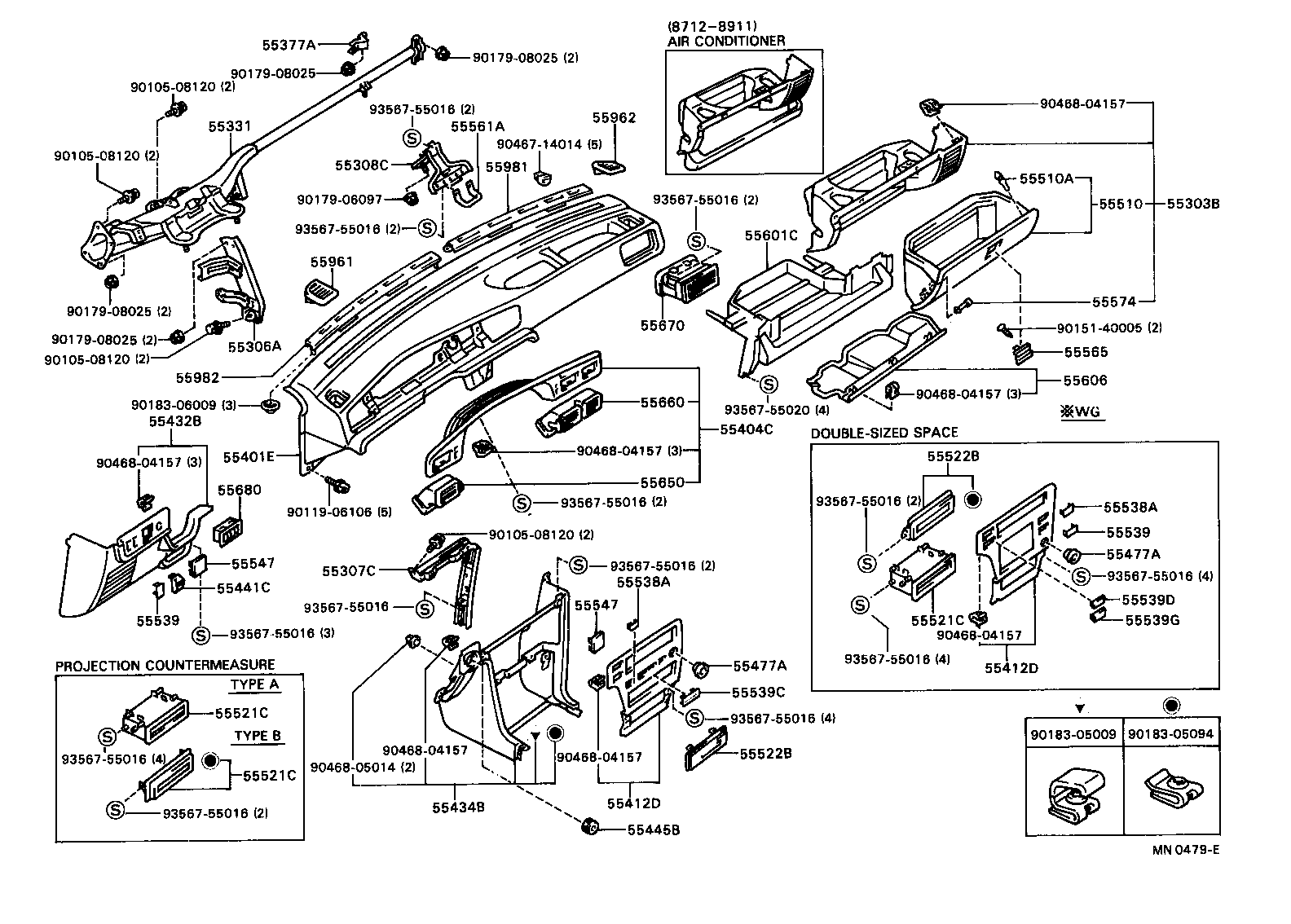

Click highlighted areas on diagram

diagram 55303B 55306A 55307C 55308C 55331 55377A 55401E 55404C 55412D 55412D 55432B 55434B 55441C 55445B 55477A 55477A 55510 55510A 55521C 55521C 55521C 55522B 55522B 55538A 55538A 55539 55539 55539C 55539D 55539G 55547 55547 55561A 55565 55574 55601C 55606 55650 55660 55670 55680 55961 55962 55981 55982 9010508120 9010508120 9010508120 9010508120 9011906106 9015140005 9017906097 9017908025 9017908025 9017908025 9017908025 9018305009 9018305094 9018306009 9046714014 9046804157 9046804157 9046804157 9046804157 9046804157 9046804157 9046804157 9046805014 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755020
Part # Description Qty Price
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-2011003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55303-2011006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55303-2011004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20150

AT171,CT170,ST171..LHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20130

AT171,CT170,ST171..LHD

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20130

AT171,CT170,ST171

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20100

AT171,CT170,ST171..LHD

 1
55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55377-20010

AT171,CT170,ST171..LHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-2053004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55401-2053003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55401-2053104

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55401-2053006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-20240

AT171,CT170,ST171..LHD

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-20340

AT171,CT170,ST171..LHD

DOUBLE-SIZED SPACE

 1
55412-20350

AT171,CT170,ST171..LHD

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-20340

AT171,CT170,ST171..LHD

DOUBLE-SIZED SPACE

 1
55412-20350

AT171,CT170,ST171..LHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-2020003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55432-2020006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55432-2020004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-2012004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55434-2012003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55434-2012006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-20150

AT171,CT170,ST171

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20070

AT171,CT170,ST171

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20070

AT171,CT170,ST171

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-2013006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55550-2013004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55550-2013003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

AT171,CT170,ST171

 3
55521C - COVER, STEREO OPENING
55521-16030

AT171,CT170,ST171..LHD

TYPE A

 1
55521-20120

AT171,CT170,ST171..LHD

TYPE B

 1
55521-20120

AT171,CT170,ST171..LHD

 1
55521C - COVER, STEREO OPENING
55521-16030

AT171,CT170,ST171..LHD

TYPE A

 1
55521-20120

AT171,CT170,ST171..LHD

TYPE B

 1
55521-20120

AT171,CT170,ST171..LHD

 1
55521C - COVER, STEREO OPENING
55521-16030

AT171,CT170,ST171..LHD

TYPE A

 1
55521-20120

AT171,CT170,ST171..LHD

TYPE B

 1
55521-20120

AT171,CT170,ST171..LHD

 1
55522B - COVER, RADIO TUNER OPENING
55522-20060

AT171,CT170,ST171..LHD

1DIN

 1
55522-32010

AT171,CT170,ST171..LHD

2DIN

 1
55522B - COVER, RADIO TUNER OPENING
55522-20060

AT171,CT170,ST171..LHD

1DIN

 1
55522-32010

AT171,CT170,ST171..LHD

2DIN

 1
55538A - COVER, COOLER SWITCH HOLE
55538-16020

AT171,CT170,ST171

 1
55538A - COVER, COOLER SWITCH HOLE
55538-16020

AT171,CT170,ST171

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2401044

AT171,CT170,ST171..LHD

DARK BLUE,TRIM8#

 1
55539-2401013

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55539-2401046

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2401044

AT171,CT170,ST171..LHD

DARK BLUE,TRIM8#

 1
55539-2401013

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55539-2401046

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-20060

AT171,ST171..LHD

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-2003001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-2003001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-12040

AT171,CT170,ST171

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2006003

AT171,CT170,ST171

SHADOW GRAY,TRIM1#

 1
55565-2006004

AT171,CT170,ST171

DARK BLUE,TRIM8#

 1
55565-2006006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AT171,CT170,ST171

 2
55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55601-2007003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55601-2007006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55601-2007004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20180

AT171,CT170,ST171..LHD

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-20120

AT171,CT170,ST171..LHD

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-2011006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55670-2011004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55670-2011003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2014003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55961-2014004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55961-2014006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2014004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55962-2014003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55962-2014006

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-20070P0

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55981-20071R8

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55981-20070E0

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
55981-20070R8

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-20070P0

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
55982-20070R8

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55982-20071R8

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
55982-20070E0

AT171,CT170,ST171..LHD..(LB,SED)

SABLE,TRIM4#

 1
Common parts
90105-08120
90119-06106
90151-40005
90179-06097
90179-08025
90183-05009
90183-05094
90183-06009
90467-14014
90468-04157
90468-05014
93567-55016
93567-55020
