AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

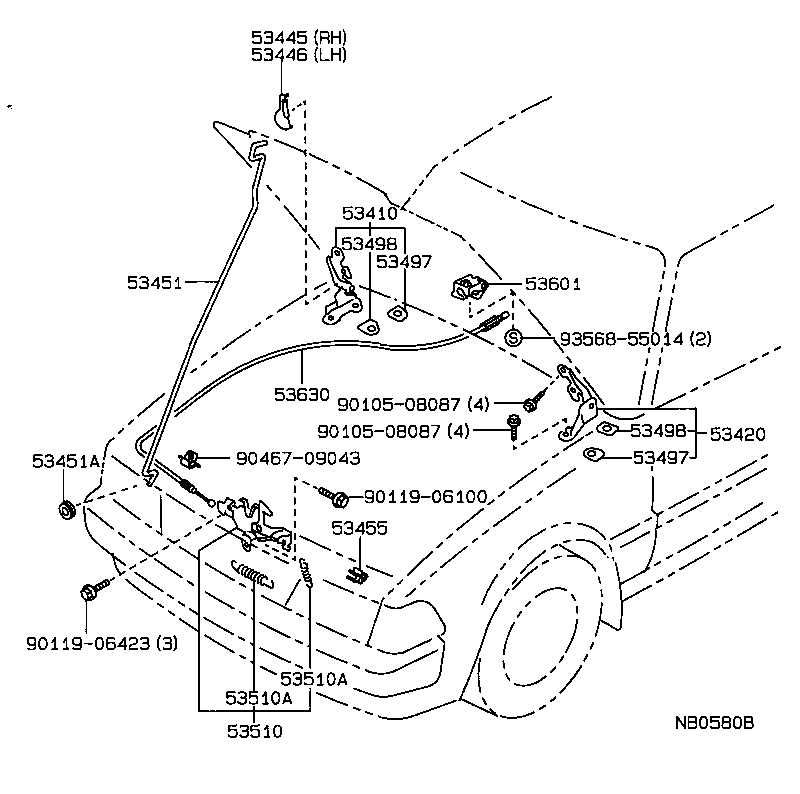

Click highlighted areas on diagram

diagram 53410 53420 53445 53446 53451 53451A 53455 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 9010508087 9010508087 9011906100 9011906423 9046709043 9356855014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20100

AT171,CT170,ST171

 1
53420 - HINGE ASSY, HOOD, LH
53420-20090

AT171,CT170,ST171

 1
53445 - COVER, HOOD HINGE, RH
53445-20010

AT171,CT170,ST171

 1
53446 - COVER, HOOD HINGE, LH
53446-20010

AT171,CT170,ST171

 1
53451 - ROD, HOOD SUPPORT
53451-20070

AT171,CT170,ST171

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15012

AT171,CT170,ST171

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

AT171,CT170,ST171

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20020

AT171,CT170,ST171

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20020

AT171,CT170,ST171

 1
53498 - PAD, HOOD HINGE, NO.2
53498-20010

AT171,CT170,ST171

 1
53498 - PAD, HOOD HINGE, NO.2
53498-20010

AT171,CT170,ST171

 1
53510 - LOCK ASSY, HOOD
53510-20230

AT171,CT170,ST171..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AT171,CT170,ST171

WD=2.0,CW=17,WD=2.0,CW=17

 1
90506-09029

AT171,CT170,ST171

WD=0.9,WD=0.9,CW=26.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AT171,CT170,ST171

WD=2.0,CW=17,WD=2.0,CW=17

 1
90506-09029

AT171,CT170,ST171

WD=0.9,WD=0.9,CW=26.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1002024

AT171,CT170,ST171

DARK BLUE,TRIM8#

 1
53601-1002016

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
53601-1002023

AT171,CT170,ST171

GRAY,TRIM1#

 1
53601-10020J0

AT171,CT170,ST171

DARK BLUE,TRIM8#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20240

AT171,CT170,ST171..LHD

 1
Common parts
90105-08087
90119-06100
90119-06423
90467-09043
93568-55014
