AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8712- )ST171..GL ; (8808- )AT171..LB,SED..GL

Click highlighted areas on diagram

diagram 44510 44543 44543 44545D 44545D 44545D 44546A 44546A 44546A 44551 44552 44552A 44553 44554 44555 44591 44592 44593 47150 9009904400 9011908157 9017908037 9017910074 9161160814 9165160614 9166160814 9411040600 9451100600 9461410600
Part # Description Qty Price
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-20031

AT171..(LB,SED)..GL

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-20031

AT171..(LB,SED)..GL

 1
47150 - VALVE ASSY, PROPORTIONING
47150-20130

AT171,CT170,ST171..LB,SED

 1
Common parts
90099-04400
90119-08157
90179-08037
90179-10074
91611-60814
91651-60614
91661-60814
94110-40600
94511-00600
94614-10600

(8712- )LHD..LB,SED

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 47381 9017906158 9017908146 9046106055 9046106118 9046106119 9048001359 9048001359 9048001359 9094901118 9095901274 9095901278 9161640614 9161640614 9161640614 91656B0616 91656B0616 91656B0616 91656B0616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20130

AT171,CT170,ST171..LB,SED

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20530

AT171,CT170,ST171..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10159

AT171,CT170,ST171..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20230

AT171,CT170,ST171..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20350

AT171,CT170,ST171..LHD

 1
47313-20351

AT171,CT170,ST171..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02565

AT171,CT170,ST171

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT171,CT170,ST171

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT171,CT170,ST171

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT171,CT170,ST171

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20260

AT171,CT170,ST171..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20421

AT171..LHD..GL

W(*66)

 1
47315-20410

AT171,CT170,ST171..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT171,CT170,ST171

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT171,CT170,ST171

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20200

AT171,CT170,ST171..LHD..(LB,SED)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20320

AT171,CT170,ST171..LHD..(LB,SED)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

AT171,CT170,ST171

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

AT171,CT170,ST171

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-20060

AT171,CT170,ST171

 1
Common parts
90179-06158
90179-08146
90461-06055
90461-06118
90461-06119
90480-01359
90949-01118
90959-01274
90959-01278
91616-40614
91656-B0616
96991-10080

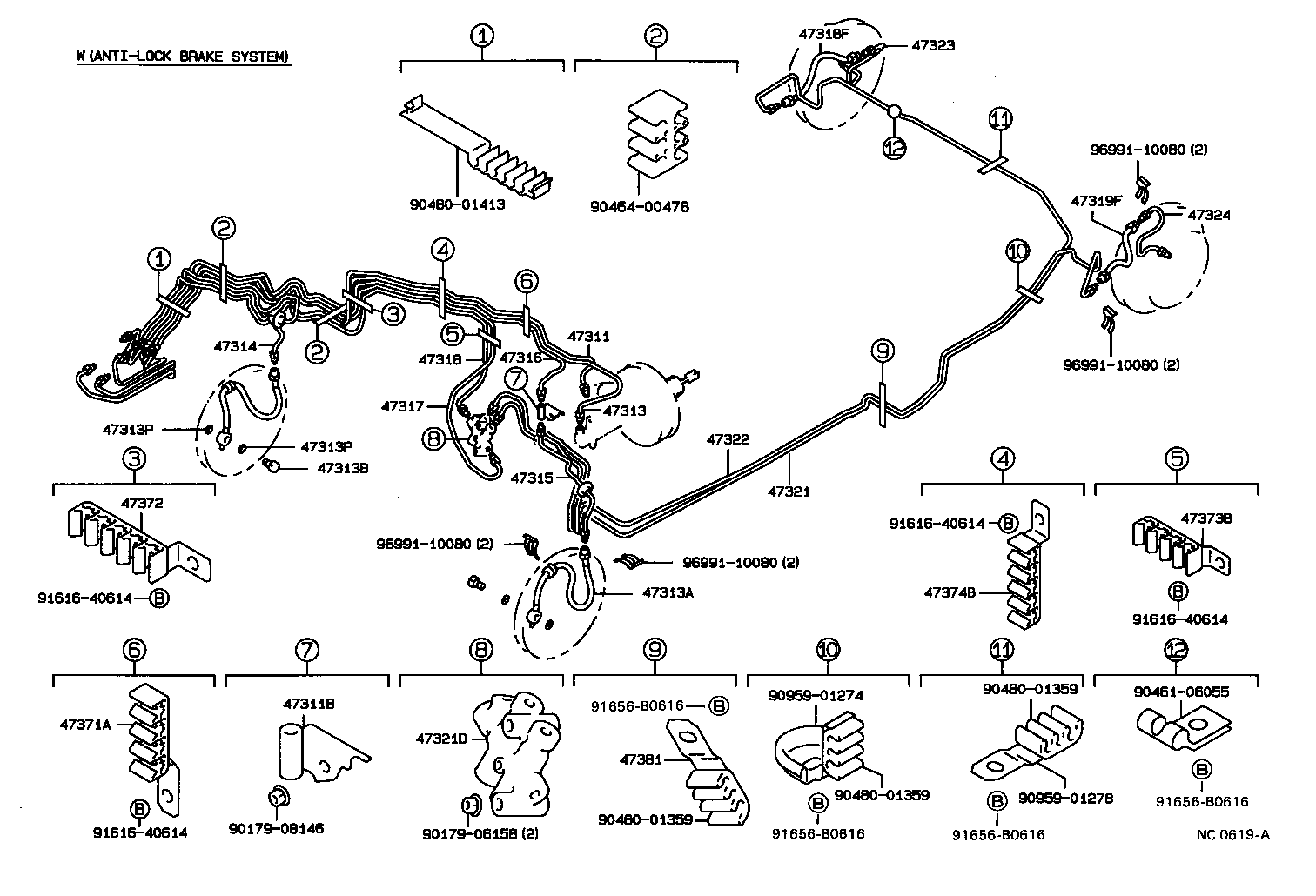

ILLUST NO. 1 OF 2(8808- )AT171..LHD..GL

Click highlighted areas on diagram

diagram 47311 47311B 47313 47313A 47313B 47313P 47313P 47314 47315 47316 47317 47318 47318F 47319F 47321 47321D 47322 47323 47324 47371A 47372 47373B 47374B 47381 9017906158 9017908146 9046106055 9046400478 9048001359 9048001359 9048001359 9048001413 9095901274 9095901278 9161640614 9161640614 9161640614 9161640614 91656B0616 91656B0616 91656B0616 91656B0616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-20530

AT171,CT170,ST171..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10159

AT171,CT170,ST171..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20350

AT171,CT170,ST171..LHD

 1
47313-20351

AT171,CT170,ST171..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02565

AT171,CT170,ST171

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT171,CT170,ST171

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT171,CT170,ST171

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT171,CT170,ST171

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20260

AT171,CT170,ST171..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20421

AT171..LHD..GL

W(*66)

 1
47315-20410

AT171,CT170,ST171..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT171,CT170,ST171

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT171,CT170,ST171

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20200

AT171,CT170,ST171..LHD..(LB,SED)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20320

AT171,CT170,ST171..LHD..(LB,SED)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

AT171,CT170,ST171

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

AT171,CT170,ST171

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-20060

AT171,CT170,ST171

 1
Common parts
90179-06158
90179-08146
90461-06055
90464-00478
90480-01359
90480-01413
90959-01274
90959-01278
91616-40614
91656-B0616
96991-10080
