AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..LHD

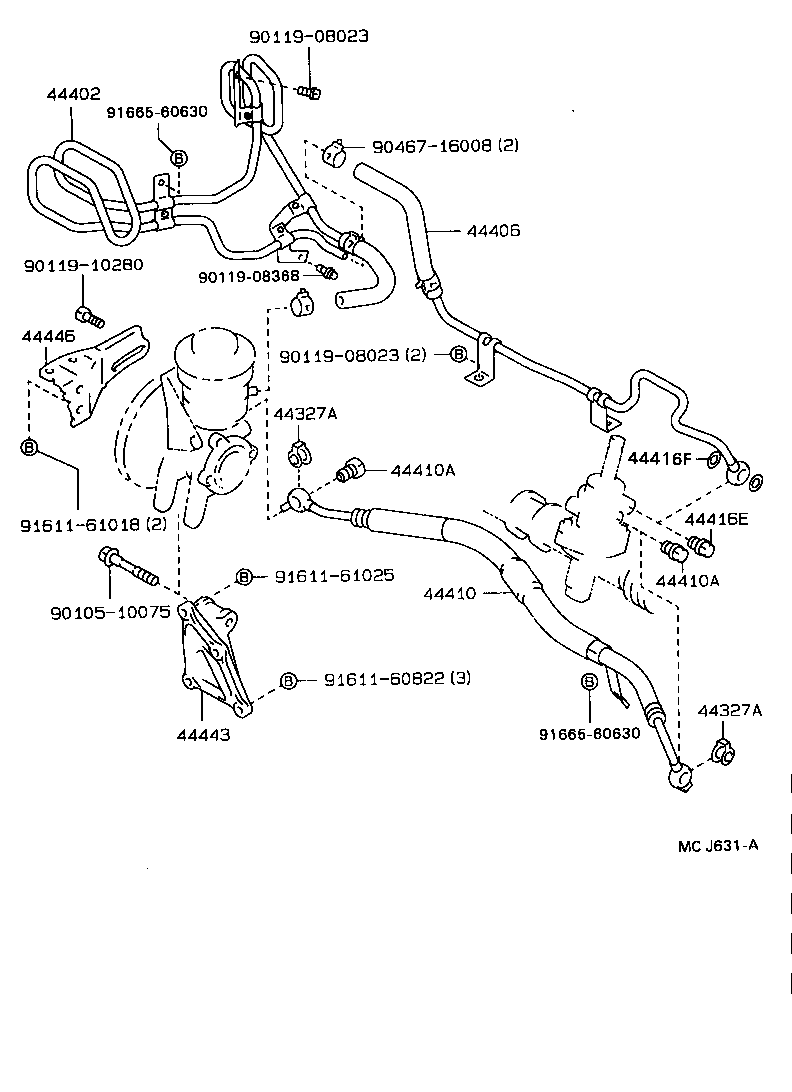

Click highlighted areas on diagram

diagram 44327A 44327A 44402 44406 44410 44410A 44410A 44416E 44416F 44443 44446 9010510075 9011908023 9011908023 9011908368 9011910280 9046716008 9161160822 9161161018 9161161025 9166560630 9166560630
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT171,CT170,ST171..LHD

 2
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT171,CT170,ST171..LHD

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20240

AT171..LHD..GL

 1
44402-20241

AT171..LHD..GL

 1
44402-20250

AT171..LHD..GL..CBR

W(*66 & 13INCHES DISC WHEEL)

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20110

AT171..LHD

 1
44406-20111

AT171..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20390

AT171..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16013

AT171..LHD

GEAR SIDE

 1
90401-16008

AT171..LHD

VANE PUMP SIDE

 1
90401-16008

AT171..LHD;AT171..RHD..SED

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16013

AT171..LHD

GEAR SIDE

 1
90401-16008

AT171..LHD

VANE PUMP SIDE

 1
90401-16008

AT171..LHD;AT171..RHD..SED

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-17002

AT171,ST171..LHD

 1
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT171..LHD

 2
44443 - BRACKET, PUMP
44443-12050

AT171

 1
44446 - STRUT, ADJUSTING
44446-12040

AT171

 1
Common parts
90105-10075
90119-08023
90119-08368
90119-10280
90467-16008
91611-60822
91611-61018
91611-61025
91665-60630
