AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8712- )5F

Click highlighted areas on diagram

diagram 33503F 33504F 33506F 33509 33534C 33534C 33534D 33534K 33534P 33534Q 33534R 33539 33548F 33548F 33556B 33556F 33556J 33575 33575A 33575B 33695B 9017908054 9165140610 9166540830
Part # Description Qty Price
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20400

AT171,CT170,ST171..LHD..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2008003

AT171,ST171..5F..GL

LEATHER,GRAY,TRIM1#

 1
33504-2008006

AT171,ST171..(LB,SED)..5F..GL

LEATHER,SABLE,TRIM4#

 1
33504-2010004

AT171,CT170,ST171..5F

BLUE,TRIM8#

 1
33504-2010006

AT171,CT170,ST171..(LB,SED)..5F

SABLE,TRIM4#

 1
33504-2008004

AT171,ST171..5F..GL

LEATHER,BLUE,TRIM8#

 1
33504-2010003

AT171,CT170,ST171..5F

GRAY,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-20220

AT171,CT170,ST171..5F

 1
33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1
33509-12060

AT171,CT170,ST171..5F

 1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12034

AT171,CT170,ST171..5F

 2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12034

AT171,CT170,ST171..5F

 2
33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
90508-20084

AT171,CT170,ST171..5F

 1
33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1)
90206-12003

AT171,CT170,ST171..5F

 1
33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
90201-12052

AT171,CT170,ST171..5F

 1
33534Q - RING, E (FOR SELECTING BELLCRANK NO.1)
96160-00900

AT171,CT170,ST171..5F

 1
33534R - CUSHION (FOR SELECTING BELLCRANK NO.1)
90540-04005

AT171,CT170,ST171..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

AT171,CT170,ST171..5F

 2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

AT171,CT170,ST171..5F

 2
33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90385-34001

AT171,CT170,ST171..5F

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20020

AT171,CT170,ST171..5F

 1
33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)
90520-34002

AT171,CT170,ST171..5F

 1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-16040

AT171,CT170,ST171..5F

 1
33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
90389-08031

AT171,CT170,ST171..5F

 4
33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
90389-10020

AT171,CT170,ST171..5F

 4
33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT)
33695-20010

AT171,CT170,ST171..5F

 1
Common parts
90179-08054
91651-40610
91665-40830

ILLUST NO. 2 OF 2(8712- )AT171..5F

Click highlighted areas on diagram

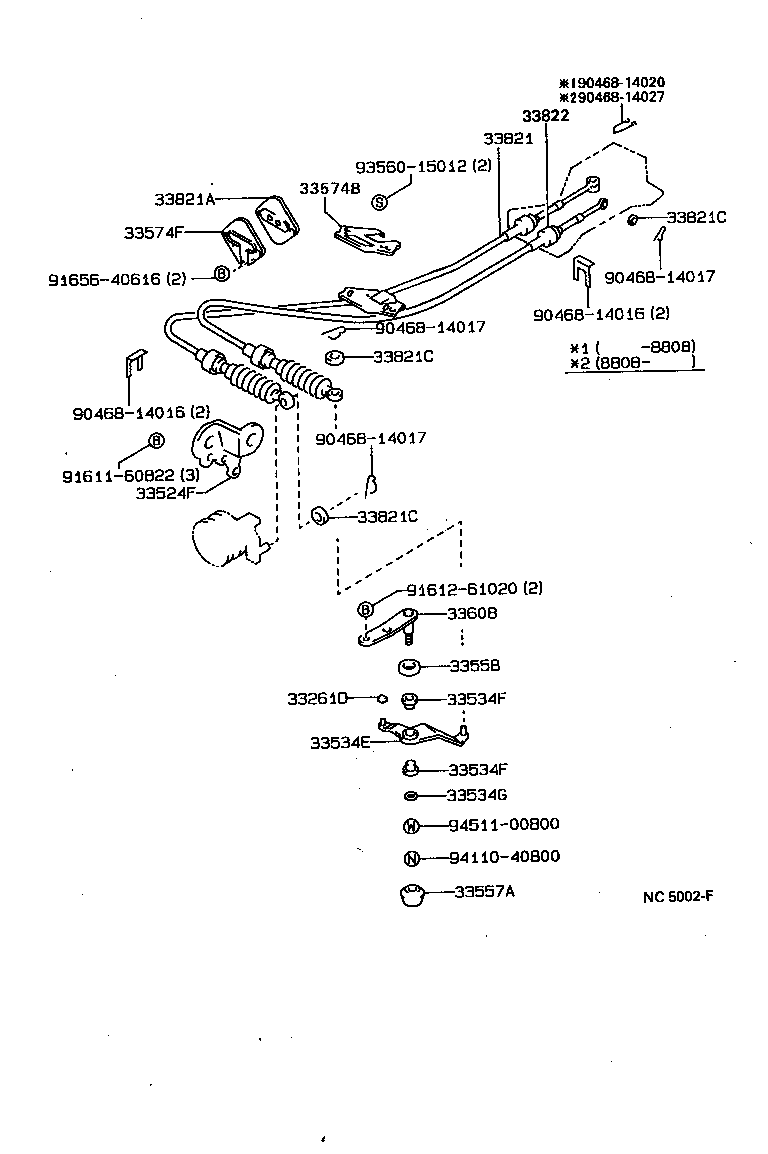

diagram 33261D 33524F 33534E 33534F 33534F 33534G 33557A 33558 33574B 33574F 33608 33821 33821A 33821C 33821C 33821C 33822 9046814016 9046814016 9046814017 9046814017 9046814017 9046814020 9046814027 9161160822 9161261020 9165640616 9356015012 9411040800 9451100800
Part # Description Qty Price
33261D - BUSH (FOR SHIFT & SELECT LEVER)
90389-10009

AT171..5F

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-12010

AT171..5F

 1
33534E - CRANK, SELECTING BELL, NO.2
33534-10030

AT171..5F

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT171,CT170,ST171..5F

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT171,CT170,ST171..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

AT171,CT170,ST171..5F

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

AT171,CT170,ST171..5F

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

AT171..5F

 1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-20210

AT171,CT170,ST171..5F

 1
33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33574-20280

AT171,CT170,ST171..5F

 1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-12021

AT171..5F

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-20400

AT171..5F

 2
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01459

AT171,CT170,ST171..5F

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

AT171,CT170,ST171..5F

OD=28,TRANSAXLE SIDE

 2
90201-10042

AT171,CT170,ST171..5F

SHIFT LEVER SIDE

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

AT171,CT170,ST171..5F

OD=28,TRANSAXLE SIDE

 2
90201-10042

AT171,CT170,ST171..5F

SHIFT LEVER SIDE

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

AT171,CT170,ST171..5F

OD=28,TRANSAXLE SIDE

 2
90201-10042

AT171,CT170,ST171..5F

SHIFT LEVER SIDE

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-20180

AT171..5F

 2
Common parts
90468-14016
90468-14017
90468-14020
90468-14027
91611-60822
91612-61020
91656-40616
93560-15012
94110-40800
94511-00800
