AT171L-ALMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..5F

Click highlighted areas on diagram

C52

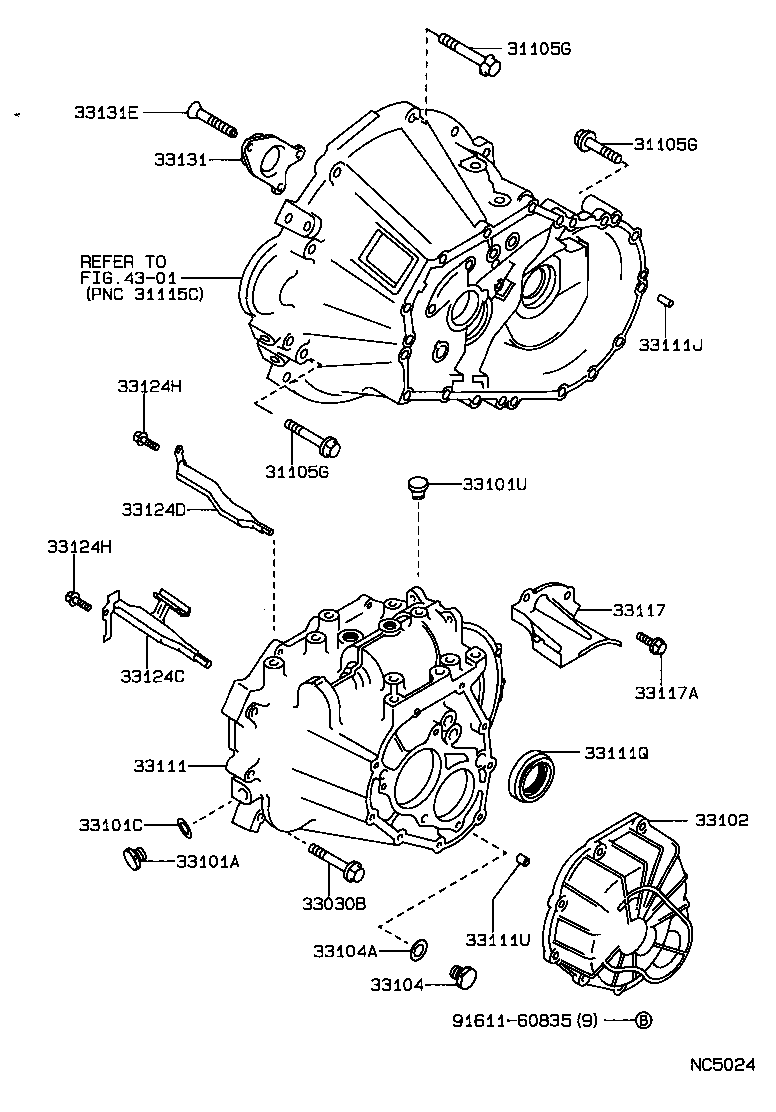

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33124C 33124D 33124H 33124H 33131 33131E 4301 9161160835
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT171,CT170,ST171..5F

*10-1.25PX43-26

 1
90119-12168

AT171..5F

*12-1.25PX55-30

 2
91611-61025

AT171..5F

*10-1.25PX25-25

 3
90119-12042

AT171..5F

*12-1.25PX75-30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT171,CT170,ST171..5F

*10-1.25PX43-26

 1
90119-12168

AT171..5F

*12-1.25PX55-30

 2
91611-61025

AT171..5F

*10-1.25PX25-25

 3
90119-12042

AT171..5F

*12-1.25PX75-30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT171,CT170,ST171..5F

*10-1.25PX43-26

 1
90119-12168

AT171..5F

*12-1.25PX55-30

 2
91611-61025

AT171..5F

*10-1.25PX25-25

 3
90119-12042

AT171..5F

*12-1.25PX75-30

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

AT171..5F

*8-1.25PX51-28

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AT171..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AT171,CT170,ST171..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080

AT171,CT170,ST171..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12020

AT171..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AT171,CT170,ST171..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AT171,CT170,ST171..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16040

AT171..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT171..5F

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

AT171..5F

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AT171..5F

L=11,OD=11

 2
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-12011

AT171..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AT171,CT170,ST171..5F

 2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12010

AT171..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12020

AT171..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT171..5F

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT171..5F

 2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12071

AT171..5F

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AT171..5F

 3
Common parts
91611-60835
Linked diagrams
4301
