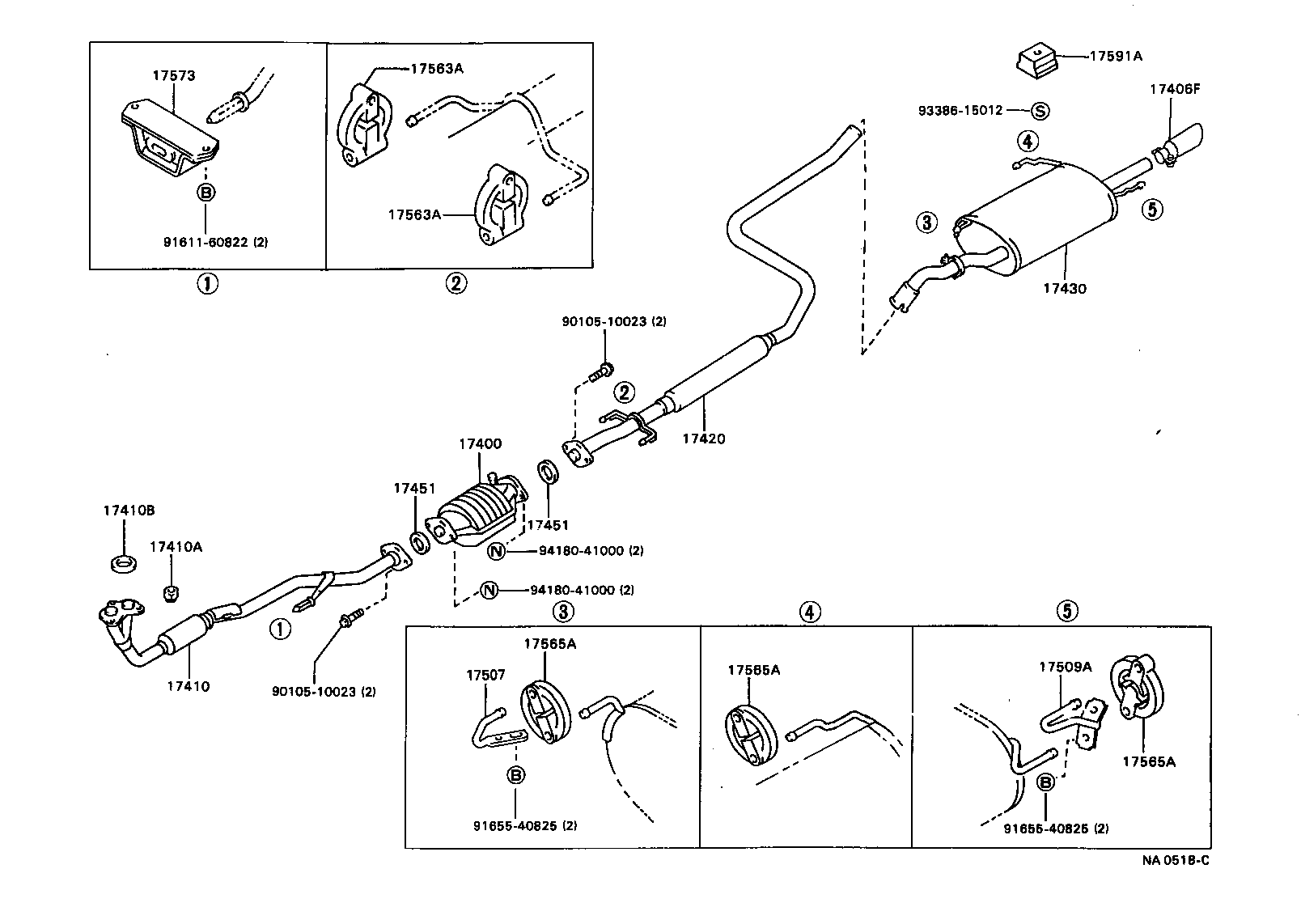

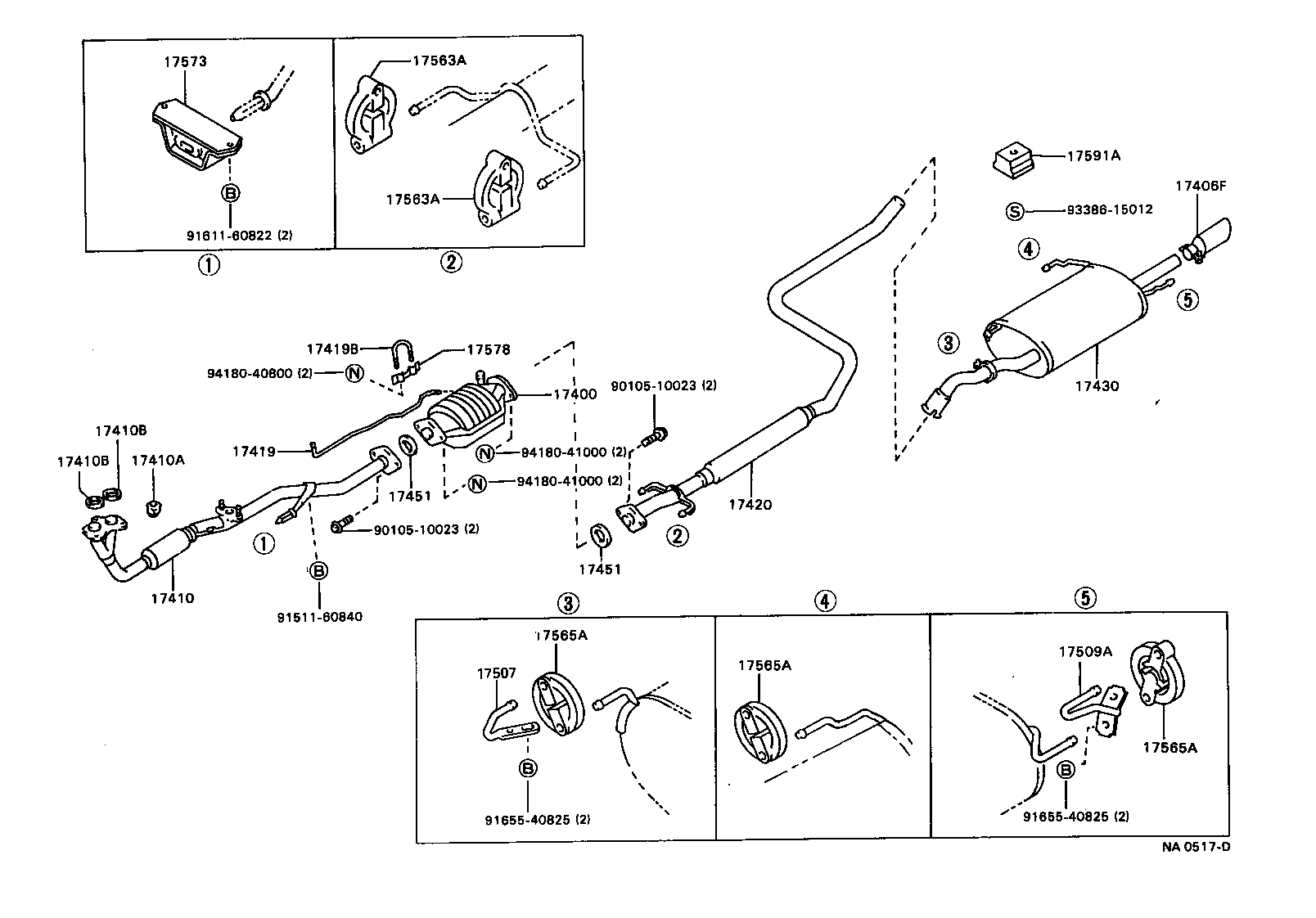

AT171L-ALMNUG (1987)
Toyota Carina 2
(8712- )4AF..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16230 |
4AF..AT171..G ANNEX 25 |
1 | ||
| 18450-16190 |
4AF..AT171..G |
1 | ||
| 18450-16390 |
4AF..AT171..G |
1 | ||
| 17406F - DIFFUSER SUB-ASSY, EXHAUST GAS | ||||
| 17406-74010 |
4AF,3SFE..AT171,ST171..(LB,SED)..G SWITZERLAND SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16590 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17410-16600 |
4AF..AT171..G |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,3SFE..AT171,ST171 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF#..AT171 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF#..AT171 |
2 | ||
| 17419 - PIPE, CONVERTER AIR INLET | ||||
| 17419-16060 |
4AF..AT171..G |
1 | ||
| 17419B - BOLT, U(FOR CONVERTER AIR INLET PIPE) | ||||
| 90117-08022 |
4AF..AT171..G |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16200 |
4AF..AT171..G |
1 | ||
| 17420-16230 |
4AF..AT171..G ANNEX 25 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16590 |
4AF..AT171..(LB,SED)..G |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF#..AT171..G FR |
1 | ||
| 90917-06012 |
4AF#..AT171..G RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF#..AT171..G FR |
1 | ||
| 90917-06012 |
4AF#..AT171..G RR |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17576-74030 |
4AF#,3SFE..AT171,ST171 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-63060 |
4AF#,2C,3SFE..AT171,CT170,ST171 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-74020 |
4AF#,3SFE..AT171,ST171 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-15020 |
4AF..AT171..G |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-36010 |
4AF#,2C,3SFE..AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 91511-60840 | ||||
| 91611-60822 | ||||
| 91655-40825 | ||||
| 93386-15012 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
(8712- )4AF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16230 |
4AF..AT171..G ANNEX 25 |
1 | ||
| 18450-16190 |
4AF..AT171..G |
1 | ||
| 18450-16390 |
4AF..AT171..G |
1 | ||
| 17406F - DIFFUSER SUB-ASSY, EXHAUST GAS | ||||
| 17406-74010 |
4AF,3SFE..AT171,ST171..(LB,SED)..G SWITZERLAND SPEC |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16590 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17410-16600 |
4AF..AT171..G |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,3SFE..AT171,ST171 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF#..AT171 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16200 |
4AF..AT171..G |
1 | ||
| 17420-16230 |
4AF..AT171..G ANNEX 25 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16590 |
4AF..AT171..(LB,SED)..G |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF#..AT171..G FR |
1 | ||
| 90917-06012 |
4AF#..AT171..G RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF#..AT171..G FR |
1 | ||
| 90917-06012 |
4AF#..AT171..G RR |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17576-74030 |
4AF#,3SFE..AT171,ST171 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-63060 |
4AF#,2C,3SFE..AT171,CT170,ST171 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
4AF#,2C,3SFE..AT171,CT170,ST171 RR |
1 | ||
| 17565-63020 |
4AF#,2C,3SFE..AT171,CT170,ST171 FR |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-74020 |
4AF#,3SFE..AT171,ST171 |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-36010 |
4AF#,2C,3SFE..AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 91611-60822 | ||||
| 91655-40825 | ||||
| 93386-15012 | ||||
| 94180-41000 | ||||
