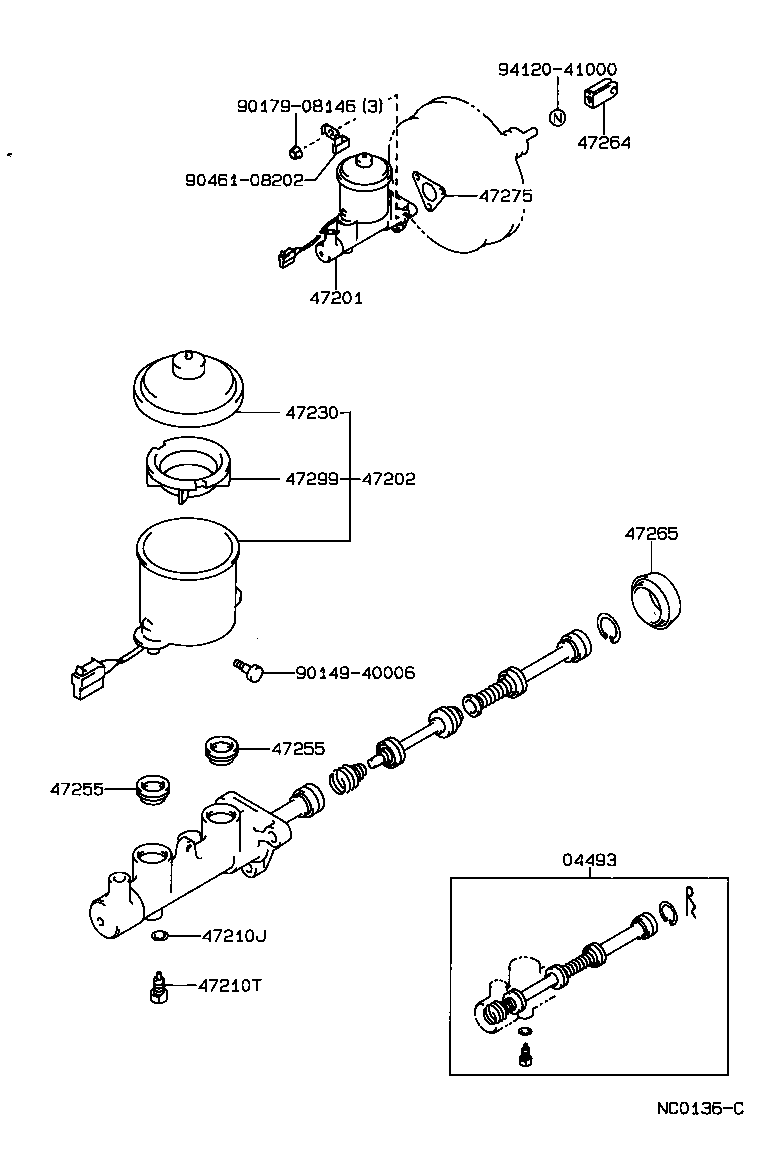

AT171L-ALMNKG (1987)
Toyota Carina 2
(8712- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20170 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 04493-32040 |
AT171,CT170,ST171 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-20610 |
AT171..LHD..GL W(*66) |
1 | ||
| 47201-20550 |
AT171,CT170,ST171..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12060 |
AT171,CT170,ST171..LHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AT171,CT170,ST171 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
AT171,CT170,ST171 |
1 | ||
| 90109-06008 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-16010 |
AT171,CT170,ST171..LHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT171,CT170,ST171 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT171,CT170,ST171 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-20040 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 47264-10080 |
AT171,CT170,ST171 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
AT171,CT170,ST171 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
AT171,CT170,ST171 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-16010 |
AT171,CT170,ST171..LHD |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90461-08202 | ||||
| 94120-41000 | ||||

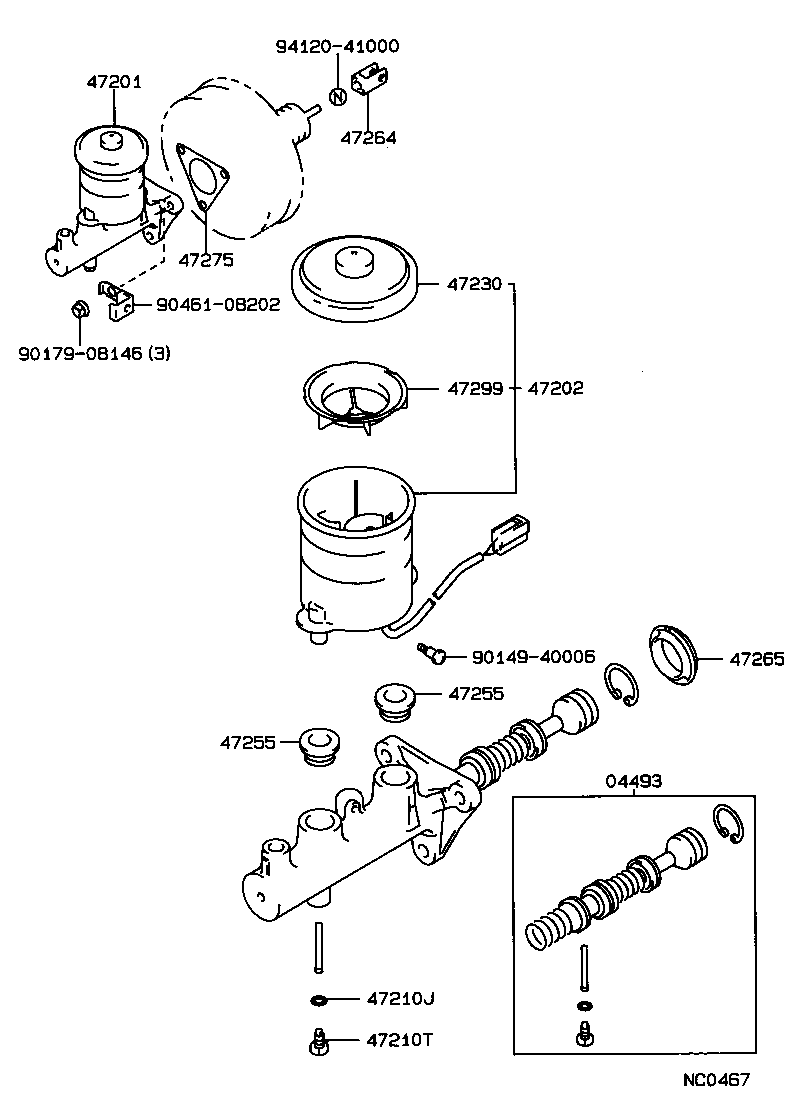

(8712- )ST171..LHD..GL ; (8808- )AT171..LHD..GL
W(ANTI-LOCK BRAKE SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20170 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 04493-32040 |
AT171,CT170,ST171 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-20610 |
AT171..LHD..GL W(*66) |
1 | ||
| 47201-20550 |
AT171,CT170,ST171..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12060 |
AT171,CT170,ST171..LHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AT171,CT170,ST171 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
AT171,CT170,ST171 |
1 | ||
| 90109-06008 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-16010 |
AT171,CT170,ST171..LHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT171,CT170,ST171 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT171,CT170,ST171 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-20040 |
AT171..(LB,SED)..GL W(*66) |
1 | ||
| 47264-10080 |
AT171,CT170,ST171 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
AT171,CT170,ST171 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
AT171,CT170,ST171 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-16010 |
AT171,CT170,ST171..LHD |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90461-08202 | ||||
| 94120-41000 | ||||
