AT171L-ALMDUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

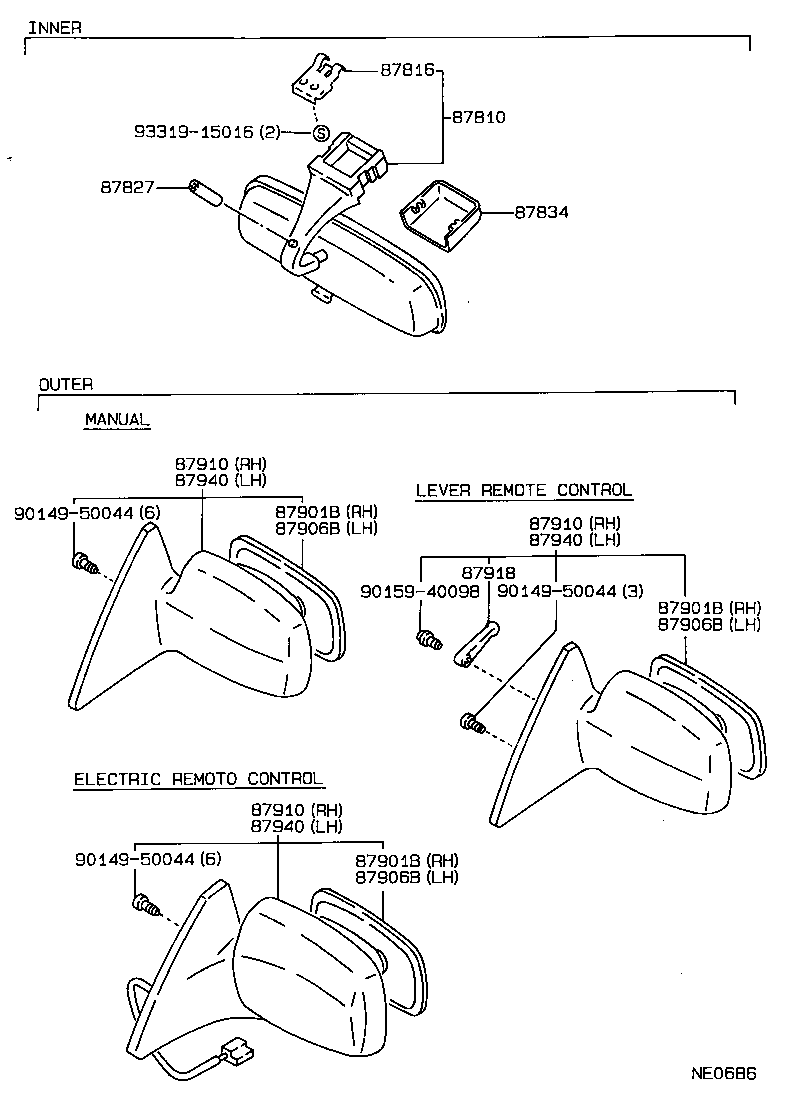

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 87901B 87901B 87901B 87906B 87906B 87906B 87910 87910 87910 87918 87940 87940 87940 9014950044 9014950044 9014950044 9015940098 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2023003

AT171,CT170,ST171

GRAY,TRIM1#

 1
87810-2023004

AT171,CT170,ST171

BLUE,TRIM8#

 1
87810-2023006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AT171,CT170,ST171

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-87005

AT171,CT170,ST171

L=49

 1
87828-92600

AT171,CT170,ST171

L=50

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008034

AT171,CT170,ST171

DEEP BLUE,TRIM8#

 1
87834-2008053

AT171,CT170,ST171

SHADOW GRAY,TRIM1#

 1
87834-2008026

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-1A290

AT171,CT170,ST171..LHD..XL

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-1A290

AT171,CT170,ST171..LHD..XL

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-1A290

AT171,CT170,ST171..LHD..XL

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

AT171,CT170,ST171..LHD

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

AT171,CT170,ST171..LHD

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

AT171,CT170,ST171..LHD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-2B070

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
87910-2B060

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-2B070

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
87910-2B060

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-2B070

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
87910-2B060

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-12020

AT171,CT170,ST171

 1
87918-12020

AT171,CT170,ST171

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-2B120

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87940-2B130

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-2B120

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87940-2B130

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-2B120

AT171,CT170,ST171..LHD

MANUAL MIRROR

 1
87940-2B130

AT171,CT170,ST171..LHD

MANUAL REMOTE CONTROL MIRROR

 1
Common parts
90149-50044
90159-40098
93319-15016
