AT171L-ALMDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171

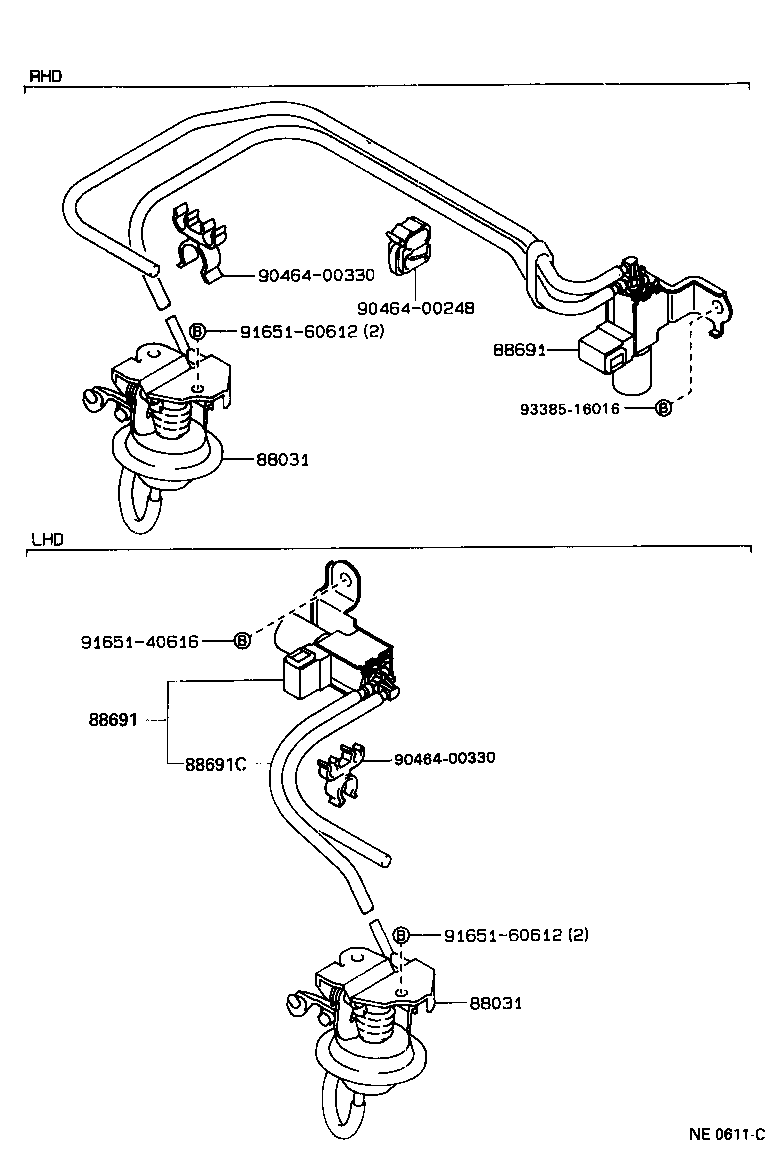

Click highlighted areas on diagram

diagram 88031 88031 88691 88691 88691C 9046400248 9046400330 9046400330 9165140616 9165160612 9165160612 9338516016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AT171..CBR

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AT171..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20880

AT171..LHD..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20880

AT171..LHD..CBR

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

AT171..LHD

L=600

 1
90999-92002

AT171..LHD

*H,L=300

 1
Common parts
90464-00248
90464-00330
91651-40616
91651-60612
93385-16016
