AT171L-ALMDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

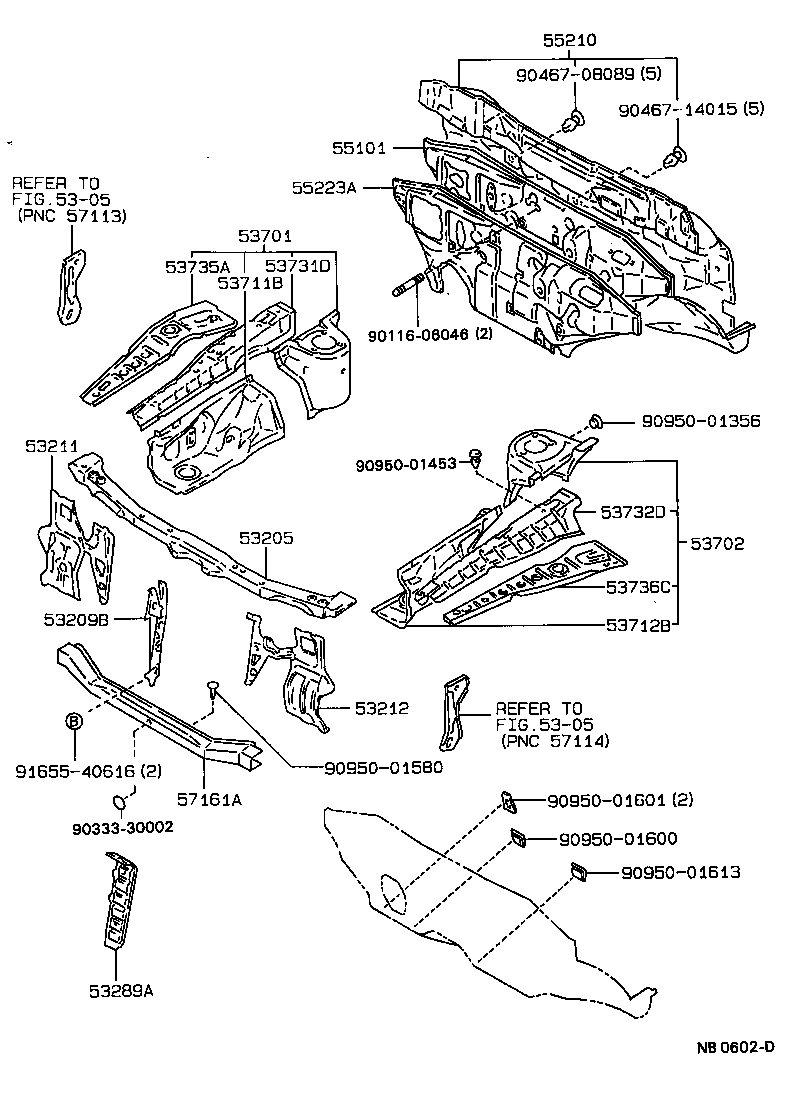

Click highlighted areas on diagram

diagram 5305 5305 53205 53209B 53211 53212 53289A 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 55101 55210 55223A 57161A 9011606046 9033330002 9046708089 9046714015 9095001356 9095001453 9095001580 9095001600 9095001601 9095001613 9165540616
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20900

AT171,CT170,ST171

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20180

AT171

 1
53211 - SUPPORT, RADIATOR, RH
53211-20190

AT171,CT170,ST171

 1
53212 - SUPPORT, RADIATOR, LH
53212-20190

AT171,CT170,ST171

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-20040

AT171..5F

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20650

AT171,CT170,ST171

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20640

AT171,CT170,ST171

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20220

AT171,CT170,ST171

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20250

AT171,CT170,ST171

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20070

AT171,CT170,ST171

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20070

AT171,CT170,ST171

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-20050

AT171,CT170,ST171

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-20060

AT171,CT170,ST171

 1
55101 - PANEL SUB-ASSY, DASH
55101-2B905

ST171..LHD..5F;AT171..LHD..5F..CBR

 1
55101-2B905

ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20180

AT171,CT170,ST171..LHD

 1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57161-20908

AT171,CT170,ST171

 1
Common parts
90116-06046
90333-30002
90467-08089
90467-14015
90950-01356
90950-01453
90950-01580
90950-01600
90950-01601
90950-01613
91655-40616
Linked diagrams
5305
