AT171L-AEPNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..LHD..4FC

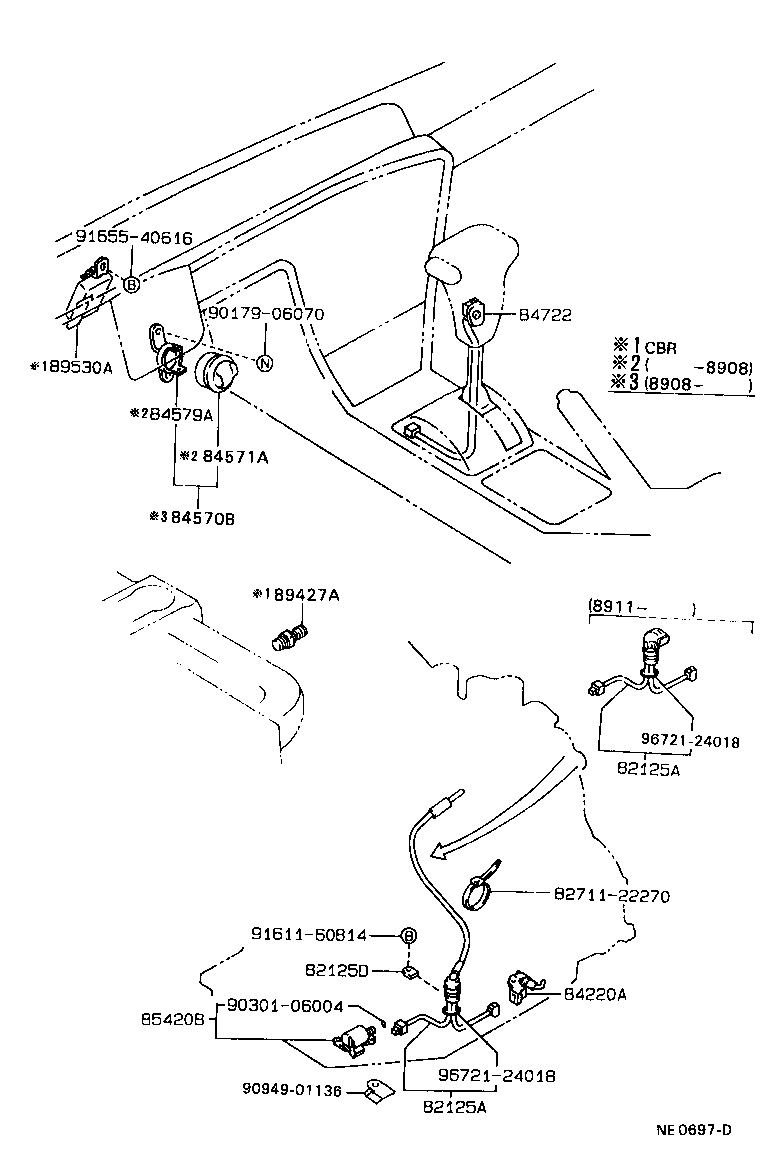

Click highlighted areas on diagram

diagram 82125A 82125A 82125D 8271122270 84220A 84570B 84571A 84579A 84722 85420B 89427A 89530A 9017906070 9030106004 9094901136 9161160814 9165540616 9672124018 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20130

AT171..LHD..4FC

 1
82125A - WIRE, TRANSMISSION
82125-20130

AT171..LHD..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AT171..4FC

 1
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-20100

AT171..LHD..4FC

 1
84570B - SWITCH ASSY, KICK DOWN
84570-20020

AT171..EFI;AT171,ST171..LHD..4FC

 1
84571A - SWITCH, KICK DOWN
84571-20010

AT171..EFI;AT171,ST171..LHD..4FC

 1
84571-20020

AT171..EFI;AT171,ST171..LHD..4FC

 1
84579A - BRACKET, KICK DOWN SWITCH
84579-20020

AT171..EFI;AT171,ST171..LHD..4FC

 1
84579-20010

AT171..EFI;AT171,ST171..LHD..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2007004

ST171..XL;AT171..LHD..4FC;ST171..LHD..4FC..GL

BLUE,TRIM8#

 1
84722-2007003

ST171..XL;AT171..LHD..4FC;ST171..LHD..4FC..GL

GRAY,TRIM1#

 1
84722-2007006

AT171,ST171..LHD..(LB,SED)..4FC

SABLE,TRIM4#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-10010

AT171..4FC

 1
89427A - SWITCH, TEMPERATURE
89427-12090

AT171..4FC..CBR

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-20300

AT171..LHD..4FC

 1
Common parts
82711-22270
90179-06070
90301-06004
90949-01136
91611-60814
91655-40616
96721-24018
