AT171L-AEPNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8911)

Click highlighted areas on diagram

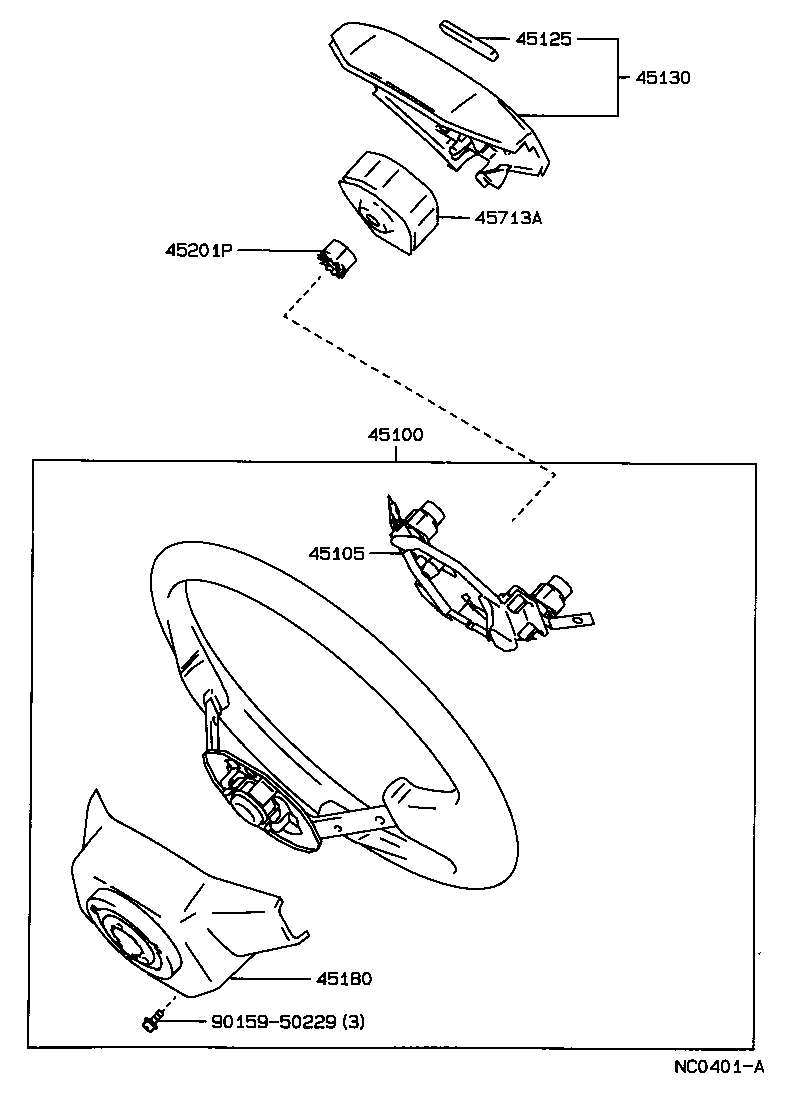

diagram 45100 45105 45125 45130 45180 45201P 45713A 9015950229
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2060001

AT171,ST171..(LB,SED)..GL

LEATHER,BLACK,TRIM1#,4#,8#

 1
45100-2058001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20210

AT171,CT170,ST171

 1
45125 - MARK, STEERING WHEEL PAD
45125-20370

AT171,CT170,ST171

 1
45130 - BUTTON ASSY, HORN
45130-2053001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2007001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
45180-2008001

AT171,ST171..(LB,SED)..GL

LEATHER,BLACK,TRIM1#,4#,8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AT171..LHD;CT170,ST171;AT171..RHD..GL;AT171..RHD..WG..XL

 1
Common parts
90159-50229

(8712-8911)AT171,ST171..GL ; (8806-8911) ; (8905-8907)

Click highlighted areas on diagram

8806-8911SINGAPORE/8905-0789CAMPAIG

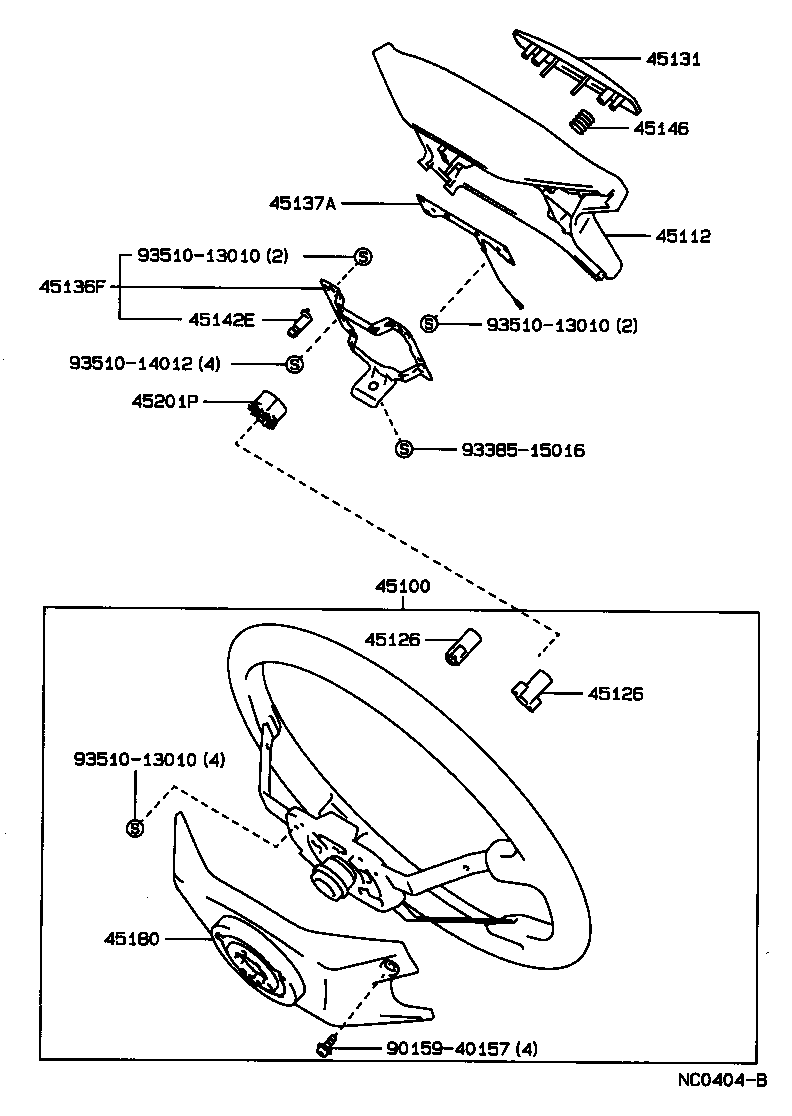

diagram 45100 45112 45126 45126 45131 45136F 45137A 45142E 45146 45180 45201P 9015940157 9338515016 9351013010 9351013010 9351013010 9351014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2060001

AT171,ST171..(LB,SED)..GL

LEATHER,BLACK,TRIM1#,4#,8#

 1
45100-2058001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
45112 - PAD, STEERING WHEEL
45112-2041001

ST171..GL;AT171..LB..GL;AT171..LHD..SED..GL

BLACK,TRIM1#,4#,8#

 1
45112-2041001

AT171,ST171..(LB,SED)..GL

BLACK,TRIM1#,4#,8#

 1
45126 - PLATE, STEERING WHEEL PAD SET
45126-20090

AT171,ST171..GL

 2
45126 - PLATE, STEERING WHEEL PAD SET
45126-20090

AT171,ST171..GL

 2
45131 - BUTTON, HORN, NO.1
45131-2022001

AT171,ST171..(LB,SED)..GL

BLACK,TRIM1#,4#,8#

 1
45131-2022001

ST171..GL;AT171..LB..GL;AT171..LHD..SED..GL

BLACK,TRIM1#,4#,8#

 1
45136F - PLATE, HORN BUTTON CONTACT, NO.1
45136-20210

AT171,ST171..GL

 1
45136-20210

ST171..GL;AT171..(LB,WG)..GL;AT171..LHD..SED..GL

 1
45137A - PLATE, HORN BUTTON CONTACT, NO.2
45137-20050

ST171..GL;AT171..(LB,WG)..GL;AT171..LHD..SED..GL

 1
45137-20050

AT171,ST171..GL

 1
45142E - PIECE, HORN CONTACT
45142-20060

AT171,ST171..GL

 2
45142-20060

ST171..GL;AT171..(LB,WG)..GL;AT171..LHD..SED..GL

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20180

ST171..GL;AT171..(LB,WG)..GL;AT171..LHD..SED..GL

 2
45146-20180

AT171,ST171..GL

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2007001

AT171,CT170,ST171..LB,SED

BLACK,TRIM1#,4#,8#

 1
45180-2008001

AT171,ST171..(LB,SED)..GL

LEATHER,BLACK,TRIM1#,4#,8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AT171..LHD;CT170,ST171;AT171..RHD..GL;AT171..RHD..WG..XL

 1
Common parts
90159-40157
93385-15016
93510-13010
93510-14012
