AT171L-AEPDUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

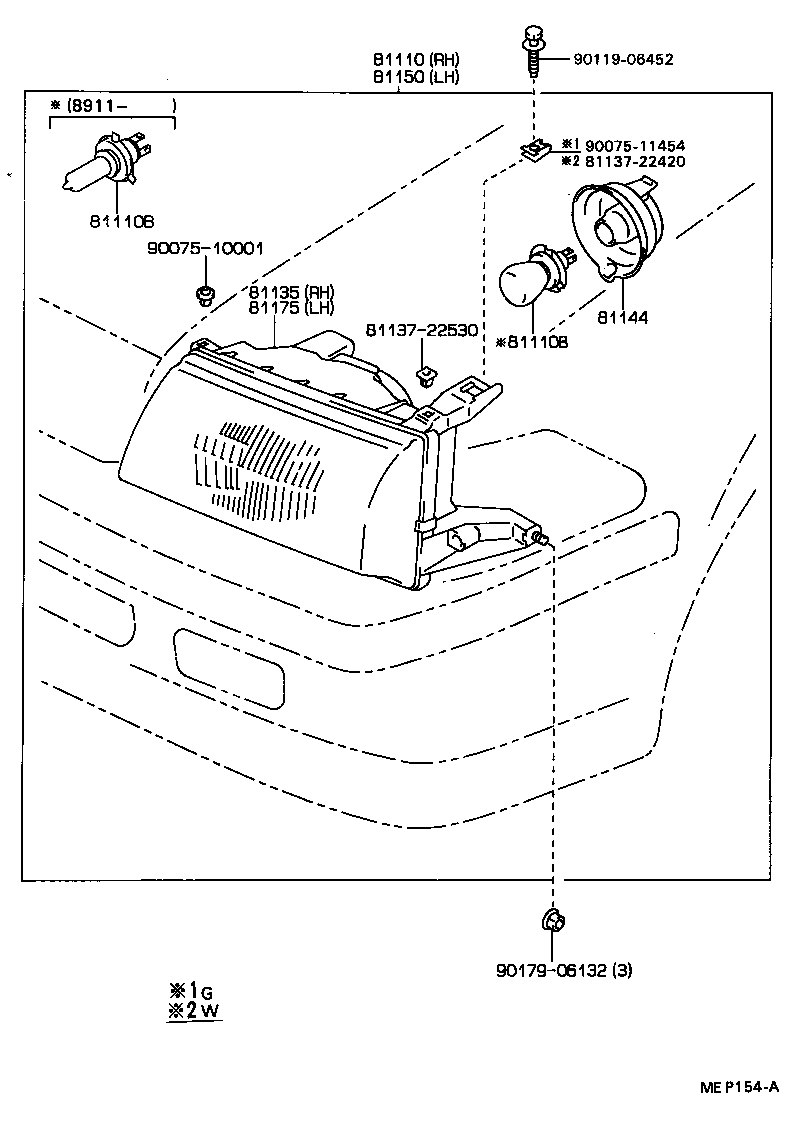

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722420 8113722530 81144 81150 81175 9007510001 9007511454 9011906452 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B250

AT171..WG..W;CT170,ST171..RHD;AT171..RHD..(LB,SED);AT171..(LB,SED)..XL..W

HALOGEN,RH TRAFFIC

 1
81110-2B240

AT171,CT170,ST171..LHD..XL

 1
81110-2B250

CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED)

HALOGEN,RH TRAFFIC

 1
81110-2B260

AT171,ST171..LHD..W

HALOGEN YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT171,CT170,ST171..LHD..XL

12V 60/55W,*HAL *WH

 2
90981-13013

AT171,CT170,ST171..XL

12V 45/40W,WHITE

 2
90981-13015

AT171..LHD..XL..W

12V 60/55W,*HAL *WH

 2
90981-13016

AT171,ST171..LHD..W

12V 60/55W,*HAL *YE

 2
90981-13015

AT171..LHD..XL..W

12V 60/55W,*HAL *WH

 2
90981-13013

AT171,CT170,ST171..LHD..XL

12V 45/40W,WHITE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT171,CT170,ST171..LHD..XL

12V 60/55W,*HAL *WH

 2
90981-13013

AT171,CT170,ST171..XL

12V 45/40W,WHITE

 2
90981-13015

AT171..LHD..XL..W

12V 60/55W,*HAL *WH

 2
90981-13016

AT171,ST171..LHD..W

12V 60/55W,*HAL *YE

 2
90981-13015

AT171..LHD..XL..W

12V 60/55W,*HAL *WH

 2
90981-13013

AT171,CT170,ST171..LHD..XL

12V 45/40W,WHITE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B250

AT171..LHD..XL..W

HALOGEN

 1
81130-2B240

AT171,CT170,ST171..LHD..XL

 1
81130-2B250

CT170..LHD;AT171..LHD..XL..W

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AT171,CT170,ST171

 2
81150 - HEADLAMP ASSY, LH
81150-2B210

AT171..WG..W;CT170,ST171..RHD;AT171..RHD..(LB,SED);AT171..(LB,SED)..XL..W

HALOGEN,RH TRAFFIC

 1
81150-2B200

AT171,CT170,ST171..LHD..XL

 1
81150-2B220

AT171,ST171..LHD..W

HALOGEN YELLOW

 1
81150-2B210

CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED)

HALOGEN,RH TRAFFIC

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B210

AT171..LHD..XL..W

HALOGEN

 1
81170-2B210

CT170..LHD;AT171..LHD..XL..W

HALOGEN

 1
81170-2B200

AT171,CT170,ST171..LHD..XL

 1
Common parts
81137-22420
81137-22530
90075-10001
90075-11454
90119-06452
90179-06132
