AT171L-AEPDUW (1987)
Toyota Carina 2

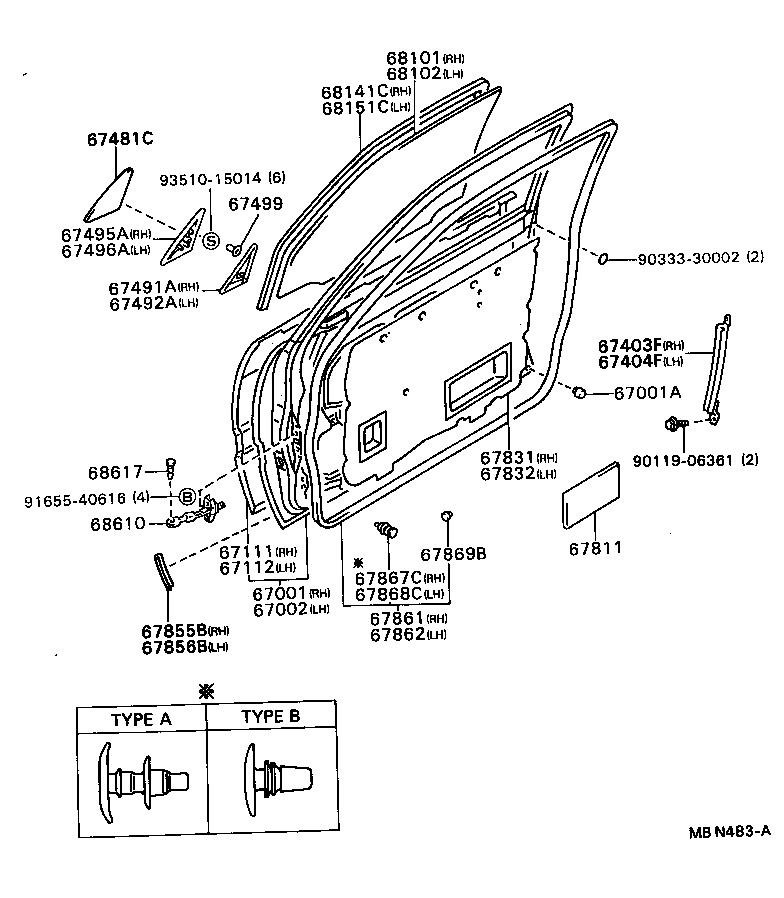

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20740 |
AT171,CT170,ST171..XL W(*PW) OR W(*EL) |
1 | ||
| 67001-20750 |
AT171,CT170,ST171 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09064 |
AT171,CT170,ST171 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20700 |
AT171,CT170,ST171..XL W(*PW) OR W(*EL) |
1 | ||
| 67002-20710 |
AT171,CT170,ST171 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20270 |
AT171,CT170,ST171 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20300 |
AT171,CT170,ST171 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20040 |
AT171,CT170,ST171 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20040 |
AT171,CT170,ST171 |
1 | ||
| 67481C - SEAL, FRONT DOOR FRONT LOWER FRAME | ||||
| 67481-20100 |
AT171,CT170,ST171 |
1 | ||
| 67481-20100 |
AT171,CT170,ST171..XL W(DOOR MIRROR) |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20130 |
AT171,CT170,ST171 |
1 | ||
| 67491-20140 |
AT171,CT170,ST171..LHD W(*DM) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20150 |
AT171,CT170,ST171 |
1 | ||
| 67492-20160 |
AT171,CT170,ST171..LHD W(*DM) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20070 |
AT171,CT170,ST171..LHD |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AT171,CT170,ST171 |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
AT171,CT170,ST171 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20250 |
AT171,CT170,ST171 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-20250 |
AT171,CT170,ST171 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-20010 |
AT171,CT170,ST171 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-20010 |
AT171,CT170,ST171 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20290 |
AT171,CT170,ST171 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20290 |
AT171,CT170,ST171 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20040 |
AT171,CT170,ST171 |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20040 |
AT171,CT170,ST171 TYPE A |
18 | ||
| 67868-30040 |
AT171,CT170,ST171 TYPE B |
1 | ||
| 67868-20040 |
AT171,CT170,ST171 |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20020 |
AT171,CT170,ST171 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20440 |
AT171,CT170,ST171 *TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20360 |
AT171,CT170,ST171 *TT,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20150 |
AT171,CT170,ST171 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20030 |
AT171,CT170,ST171 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89102 |
AT171,CT170,ST171 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
AT171,CT170,ST171 |
2 | ||
| Common parts | ||||
| 90119-06361 | ||||
| 90333-30002 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||

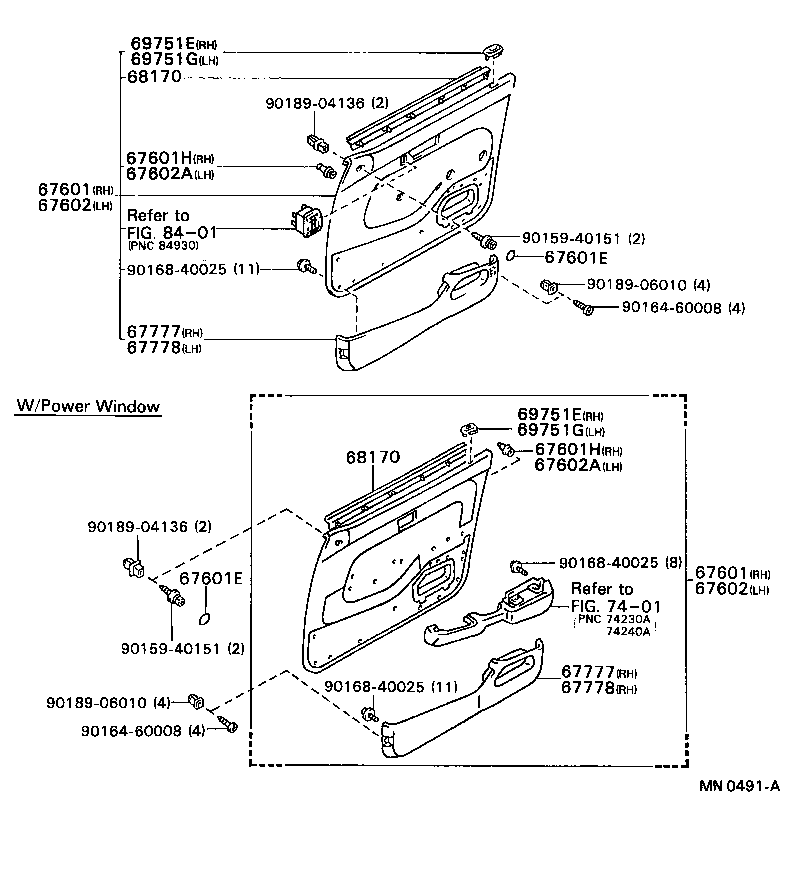

ILLUST NO. 2 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D11006 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67610-2D11004 |
AT171,CT170,ST171..XL BLUE,TRIM8# |
1 | ||
| 67610-2D11003 |
AT171,CT170..LHD..XL..(CBR,DSL) GRAY,TRIM1# |
1 | ||
| 67650-2B81003 |
AT171,CT170..SED..XL W(*PW & *EL),GRAY,TRIM1# |
1 | ||
| 67610-2D11103 |
AT171,CT170..XL GRAY,TRIM1# |
1 | ||
| 67650-2B81106 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67610-2D11104 |
AT171,CT170..XL DARK BLUE,TRIM8# |
1 | ||
| 67650-2B81004 |
AT171,CT170..SED..XL W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67610-2D11106 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67650-2B81103 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67650-2B81006 |
AT171,CT170..SED..XL W(*PW & *EL),SABLE,TRIM4# |
1 | ||
| 67650-2B81104 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D11206 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67650-2B81203 |
AT171..SED..XL;CT170..LHD..SED W(*EL),GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2B81206 |
AT171..SED..XL;CT170..LHD..SED W(*EL),SABLE,SABLE,TRIM4# |
1 | ||
| 67650-2B81204 |
AT171..SED..XL;CT170..LHD..SED W(*EL),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D11006 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67610-2D11004 |
AT171,CT170,ST171..XL BLUE,TRIM8# |
1 | ||
| 67610-2D11003 |
AT171,CT170..LHD..XL..(CBR,DSL) GRAY,TRIM1# |
1 | ||
| 67650-2B81003 |
AT171,CT170..SED..XL W(*PW & *EL),GRAY,TRIM1# |
1 | ||
| 67610-2D11103 |
AT171,CT170..XL GRAY,TRIM1# |
1 | ||
| 67650-2B81106 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67610-2D11104 |
AT171,CT170..XL DARK BLUE,TRIM8# |
1 | ||
| 67650-2B81004 |
AT171,CT170..SED..XL W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67610-2D11106 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67650-2B81103 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67650-2B81006 |
AT171,CT170..SED..XL W(*PW & *EL),SABLE,TRIM4# |
1 | ||
| 67650-2B81104 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D11206 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67650-2B81203 |
AT171..SED..XL;CT170..LHD..SED W(*EL),GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2B81206 |
AT171..SED..XL;CT170..LHD..SED W(*EL),SABLE,SABLE,TRIM4# |
1 | ||
| 67650-2B81204 |
AT171..SED..XL;CT170..LHD..SED W(*EL),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000506 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 90339-1000503 |
AT171,CT170,ST171 GRAY,TRIM1# |
2 | ||
| 90339-1000514 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
2 | ||
| 90339-1000504 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000506 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 90339-1000503 |
AT171,CT170,ST171 GRAY,TRIM1# |
2 | ||
| 90339-1000514 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
2 | ||
| 90339-1000504 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-16080 |
AT171,CT170,ST171 |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-16080 |
AT171,CT170,ST171 |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G14004 |
AT171,CT170..SED..XL W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67620-2G14003 |
AT171,CT170..SED..XL W(*PW & *EL),GRAY,TRIM1# |
1 | ||
| 67620-2G32006 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G32003 |
AT171,CT170,ST171..XL GRAY,TRIM1# |
1 | ||
| 67620-2G34004 |
AT171,CT170,ST171..LHD..XL W(*EL),BLUE,TRIM8# |
1 | ||
| 67620-2G34003 |
AT171,CT170,ST171..LHD..XL W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G34006 |
AT171,CT170..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G32004 |
AT171,CT170,ST171..XL BLUE,TRIM8# |
1 | ||
| 67620-2G14006 |
AT171,CT170..SED..XL W(*PW & *EL),SABLE,TRIM4# |
1 | ||
| 67620-2G14103 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G14104 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G32103 |
AT171,CT170..XL GRAY,TRIM1# |
1 | ||
| 67620-2G14106 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G34104 |
AT171..LHD..XL;CT170..LHD..(LB,SED) W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G32106 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G34103 |
AT171..LHD..XL;CT170..LHD..(LB,SED) W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G34106 |
AT171,CT170..LHD..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G32104 |
AT171,CT170..XL DARK BLUE,TRIM8# |
1 | ||
| 67620-2G14204 |
AT171..SED..XL;CT170..LHD..SED W(*EL),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-2G14203 |
AT171..SED..XL;CT170..LHD..SED W(*EL),GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2G14206 |
AT171..SED..XL;CT170..LHD..SED W(*EL),SABLE,SABLE,TRIM4# |
1 | ||
| 67620-2G32206 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G34206 |
AT171,CT170..LHD..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G14004 |
AT171,CT170..SED..XL W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67620-2G14003 |
AT171,CT170..SED..XL W(*PW & *EL),GRAY,TRIM1# |
1 | ||
| 67620-2G32006 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G32003 |
AT171,CT170,ST171..XL GRAY,TRIM1# |
1 | ||
| 67620-2G34004 |
AT171,CT170,ST171..LHD..XL W(*EL),BLUE,TRIM8# |
1 | ||
| 67620-2G34003 |
AT171,CT170,ST171..LHD..XL W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G34006 |
AT171,CT170..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G32004 |
AT171,CT170,ST171..XL BLUE,TRIM8# |
1 | ||
| 67620-2G14006 |
AT171,CT170..SED..XL W(*PW & *EL),SABLE,TRIM4# |
1 | ||
| 67620-2G14103 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G14104 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G32103 |
AT171,CT170..XL GRAY,TRIM1# |
1 | ||
| 67620-2G14106 |
AT171..SED..XL;CT170..LHD..SED W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G34104 |
AT171..LHD..XL;CT170..LHD..(LB,SED) W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G32106 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G34103 |
AT171..LHD..XL;CT170..LHD..(LB,SED) W(*EL),GRAY,TRIM1# |
1 | ||
| 67620-2G34106 |
AT171,CT170..LHD..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67620-2G32104 |
AT171,CT170..XL DARK BLUE,TRIM8# |
1 | ||
| 67620-2G14204 |
AT171..SED..XL;CT170..LHD..SED W(*EL),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-2G14203 |
AT171..SED..XL;CT170..LHD..SED W(*EL),GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2G14206 |
AT171..SED..XL;CT170..LHD..SED W(*EL),SABLE,SABLE,TRIM4# |
1 | ||
| 67620-2G32206 |
AT171,CT170..(LB,SED)..XL SABLE,TRIM4# |
1 | ||
| 67620-2G34206 |
AT171,CT170..LHD..(LB,SED)..XL W(*EL),SABLE,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16080 |
AT171,CT170..SED..XL W(ELECTROMAGNETIC LOCK & SPLIT REAR SEAT) |
10 | ||
| 67771-16080 |
AT171..GL;CT170,ST171..LB,SED;AT171..(LB,SED)..XL |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16080 |
AT171,CT170..SED..XL W(ELECTROMAGNETIC LOCK & SPLIT REAR SEAT) |
10 | ||
| 67771-16080 |
AT171..GL;CT170,ST171..LB,SED;AT171..(LB,SED)..XL |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67771-12050 |
AT171..SED..XL;CT170..LHD..SED W(POWER WINDOW & ELECTROMAGNETIC LOCK) |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2011006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 67777-2011004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 67777-2011003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2011006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 67777-2011004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 67777-2011003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2005006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 67778-2005004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 67778-2005003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2005006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 67778-2005004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 67778-2005003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20330 |
AT171,CT170,ST171 |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20330 |
AT171,CT170,ST171 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40151 | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90189-04136 | ||||
| 90189-06010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
