AT171L-AEPDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..LHD

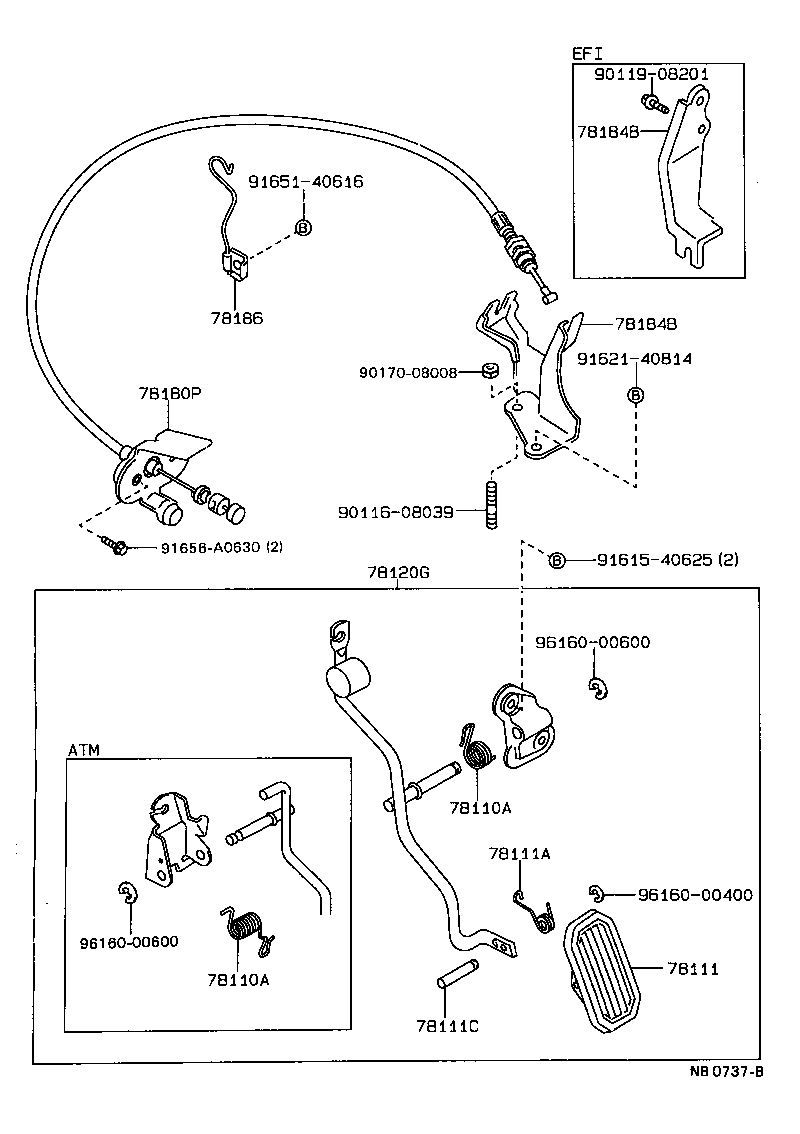

Click highlighted areas on diagram

diagram 78110A 78110A 78111 78111A 78111C 78120G 78180P 78184B 78184B 78186 9011608039 9011908201 9017008008 9161540625 9162140814 9165140616 91656A0630 9616000400 9616000600 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29021

AT171..EFI;AT171,ST171..LHD..4FC

WD=2.9,CW=9.81

 1
90508-18072

AT171,ST171..LHD..4FC

WD=1.8,CW=5.81

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29021

AT171..EFI;AT171,ST171..LHD..4FC

WD=2.9,CW=9.81

 1
90508-18072

AT171,ST171..LHD..4FC

WD=1.8,CW=5.81

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT171,CT170,ST171

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18074

AT171..EFI;AT171,ST171..LHD..4FC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT171,CT170,ST171

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20360

AT171,ST171..LHD..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B140

AT171..LHD..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12230

AT171..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12230

AT171..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12230

AT171..LHD

 1
Common parts
90116-08039
90119-08201
90170-08008
91615-40625
91621-40814
91651-40616
91656-A0630
96160-00400
96160-00600
