AT171L-AEPDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8911)

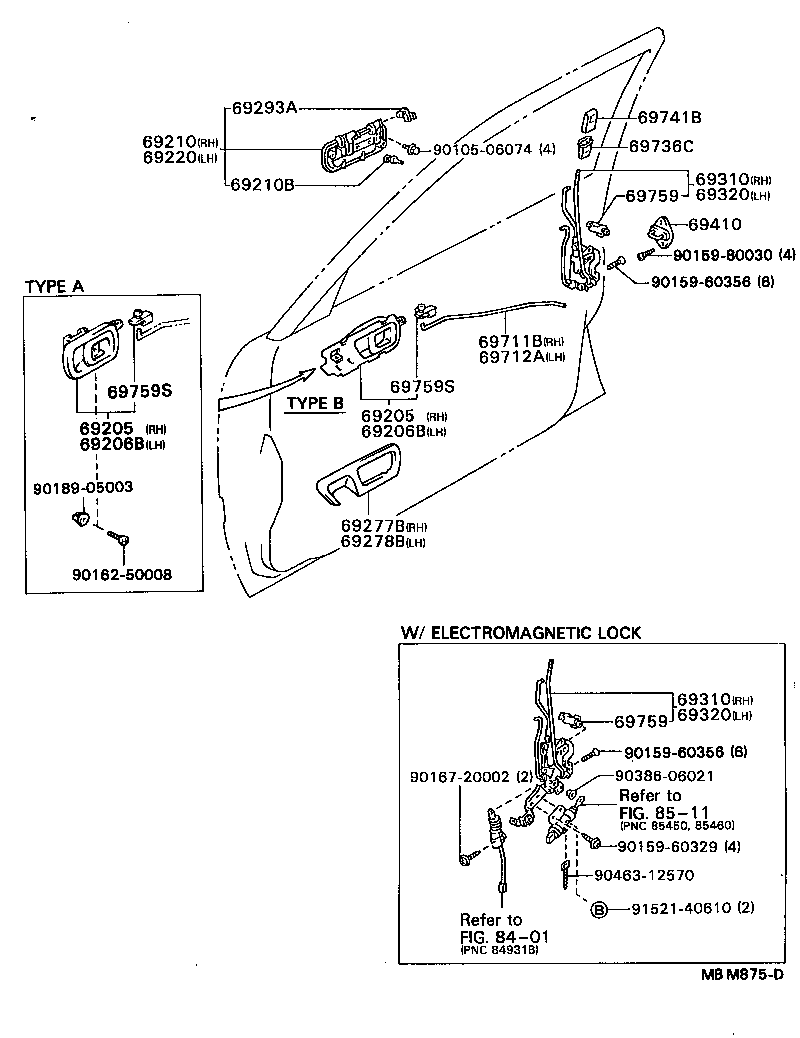

Click highlighted areas on diagram

diagram 69205 69205 69206B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69736C 69741B 69759 69759 69759S 69759S 8401 8511 9010506074 9015960329 9015960356 9015960356 9015980030 9016250008 9016720002 9018905003 9038606021 9046312570 9152140610
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2005004

AT171,CT170,ST171

BLUE,TRIM8#,TYPE B

 1
69205-2005003

AT171,CT170,ST171

GRAY,TRIM1#,TYPE B

 1
69205-2005006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#,TYPE B

 1
69205-2004006

AT171,CT170..SED..XL

SABLE,TRIM4#,TYPE A

 1
69205-2004003

AT171,CT170..SED..XL

GRAY,TRIM1#,TYPE A

 1
69205-2004004

AT171,CT170..SED..XL

BLUE,TRIM8#,TYPE A

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2005004

AT171,CT170,ST171

BLUE,TRIM8#,TYPE B

 1
69205-2005003

AT171,CT170,ST171

GRAY,TRIM1#,TYPE B

 1
69205-2005006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#,TYPE B

 1
69205-2004006

AT171,CT170..SED..XL

SABLE,TRIM4#,TYPE A

 1
69205-2004003

AT171,CT170..SED..XL

GRAY,TRIM1#,TYPE A

 1
69205-2004004

AT171,CT170..SED..XL

BLUE,TRIM8#,TYPE A

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2005003

AT171,CT170,ST171

GRAY,TRIM1#,TYPE B

 1
69206-2004004

AT171,CT170..SED..XL

BLUE,TRIM8#,TYPE A

 1
69206-2005006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#,TYPE B

 1
69206-2005004

AT171,CT170,ST171

BLUE,TRIM8#,TYPE B

 1
69206-2004003

AT171,CT170..SED..XL

GRAY,TRIM1#,TYPE A

 1
69206-2004006

AT171,CT170..SED..XL

SABLE,TRIM4#,TYPE A

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2005003

AT171,CT170,ST171

GRAY,TRIM1#,TYPE B

 1
69206-2004004

AT171,CT170..SED..XL

BLUE,TRIM8#,TYPE A

 1
69206-2005006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#,TYPE B

 1
69206-2005004

AT171,CT170,ST171

BLUE,TRIM8#,TYPE B

 1
69206-2004003

AT171,CT170..SED..XL

GRAY,TRIM1#,TYPE A

 1
69206-2004006

AT171,CT170..SED..XL

SABLE,TRIM4#,TYPE A

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20150

AT171,CT170,ST171

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

AT171,CT170,ST171

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20150

AT171,CT170,ST171

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-2007006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
69277-2007004

AT171,CT170,ST171

BLUE,TRIM8#

 1
69277-2007003

AT171,CT170,ST171

GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-2008006

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 1
69278-2008004

AT171,CT170,ST171

BLUE,TRIM8#

 1
69278-2008003

AT171,CT170,ST171

GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AT171,CT170,ST171

RH

 1
69293-12040

AT171,CT170,ST171

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20450

AT171,CT170,ST171

 1
69310-20490

AT171,CT170,ST171..LHD

W(ELECTROMAGNETIC LOCK)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20450

AT171,CT170,ST171

 1
69310-20490

AT171,CT170,ST171..LHD

W(ELECTROMAGNETIC LOCK)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20450

AT171,CT170,ST171

 1
69320-20490

AT171,CT170,ST171..LHD

W(ELECTROMAGNETIC LOCK)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20450

AT171,CT170,ST171

 1
69320-20490

AT171,CT170,ST171..LHD

W(ELECTROMAGNETIC LOCK)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20070

AT171,CT170,ST171

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-20110

AT171,CT170,ST171

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-20110

AT171,CT170,ST171

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12030

AT171,CT170,ST171

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-90K0003

AT171,CT170,ST171

SHADOW GRAY,TRIM1#

 2
69741-90K00J0

AT171,CT170,ST171

DARK BLUE,TRIM8#

 2
69741-90K0034

AT171,CT170,ST171

BLUE,TRIM8#

 2
69741-90K0036

AT171,CT170,ST171..LB,SED

SABLE,TRIM4#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AT171,CT170,ST171

LH

 1
69759-24060

AT171,CT170,ST171

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AT171,CT170,ST171

LH

 1
69759-24060

AT171,CT170,ST171

RH

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

AT171,CT170,ST171

LH

 1
69759-24070

AT171,CT170,ST171

RH

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

AT171,CT170,ST171

LH

 1
69759-24070

AT171,CT170,ST171

RH

 1
Common parts
90105-06074
90159-60329
90159-60356
90159-80030
90162-50008
90167-20002
90189-05003
90386-06021
90463-12570
91521-40610
Linked diagrams
8401
8511
