AT171L-AEPDKG (1989)

Toyota Carina 2

Production Nov 1989 - Mar 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

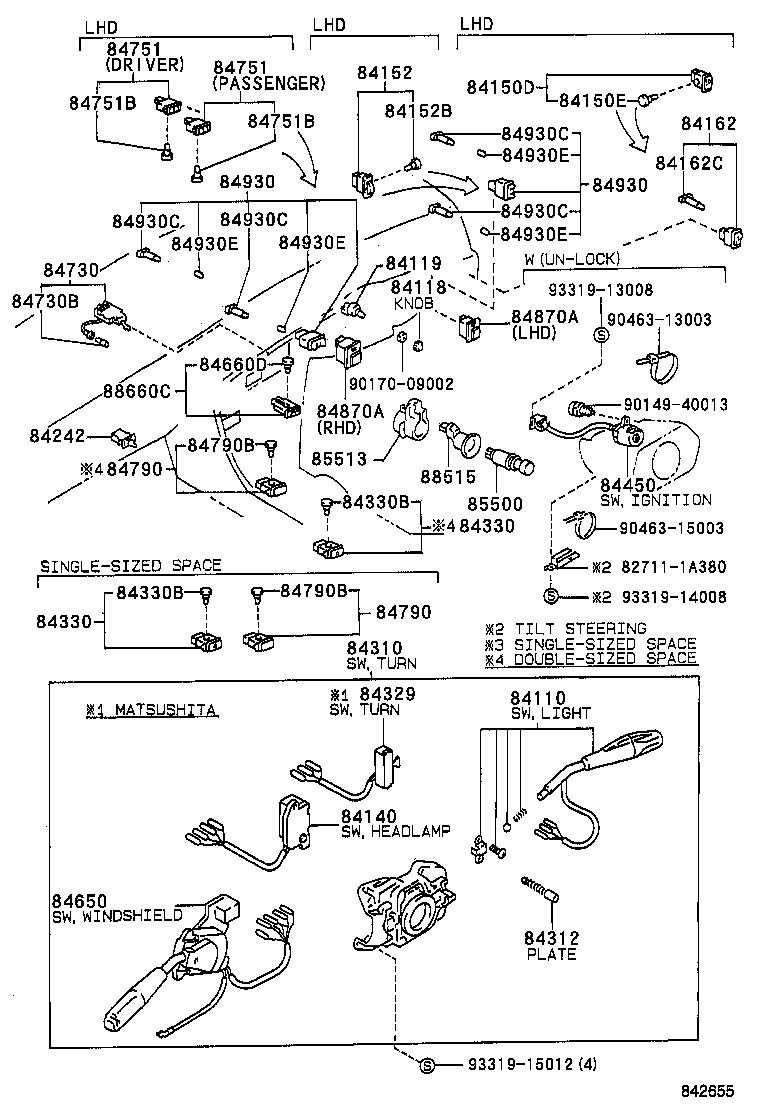

Click highlighted areas on diagram

diagram 827111A380 84110 84118 84119 84140 84150D 84150E 84152 84152B 84162 84162C 84242 84310 84312 84329 84330 84330 84330B 84330B 84450 84650 84660D 84730 84730B 84751 84751 84751B 84751B 84790 84790 84790B 84790B 84870A 84870A 84930 84930 84930C 84930C 84930C 84930C 84930E 84930E 84930E 84930E 85500 85513 88515 88660C 9014940013 9017009002 9046313003 9046315003 9331913008 9331914008 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80001

AT171,CT170,ST171..LHD

MATSUSHITA

 1
84112-80002

AT171,CT170,ST171..LHD

TOKAIRIKA

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20011

AT171,CT170,ST171

 1
84118-20011

AT171,CT170,ST171

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-20082

AT171,CT170,ST171

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-12250

AT171,CT170,ST171..LHD

MATSUSHITA

 1
84140-12260

AT171,CT170,ST171..LHD

TOKAIRIKA

 1
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-20020

AT171,CT170,ST171..LHD

 1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
84999-10130

AT171,CT170,ST171

12V 0.56W

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-2G760

AT171,CT170,ST171..LHD..SED

 1
84310-2D730

AT171,CT170,ST171..LHD..(SED,WG)

W(*VIW)

 1
84310-2G750

AT171,CT170,ST171..LHD..(SED,WG)

 1
84310-2G760

AT171,CT170,ST171..LHD..(SED,WG)

W(*VIW)

 1
84310-2D710

AT171,CT170,ST171..LHD..(SED,WG)

 1
84312 - PLATE, HORN CONTACT
84312-12040

AT171,CT170,ST171

TOKAIRIKA

 1
84312-12050

AT171,CT170,ST171

MATSUSHITA

 1
84329 - SWITCH, TURN SIGNAL
84329-12030

AT171,CT170,ST171..LHD

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20210

AT171,CT170,ST171

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20210

AT171,CT170,ST171

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12160

AT171

W(TILT STEERING) OR W(*EL)

 1
84450-12150

AT171,CT170,ST171

 1
84450-12150

AT171

W(POWER STEERING & TILT STEERING)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2B820

AT171,CT170,ST171..LHD..(SED,WG)

TOKAIRIKA

 1
84652-2B840

AT171,CT170,ST171..LHD..(SED,WG)

W(*VIW),TOKAIRIKA

 1
84652-2B850

AT171,CT170,ST171..LHD..(SED,WG)

W(*VIW),MATSUSHITA

 1
84652-2B830

AT171,CT170,ST171..LHD..(SED,WG)

MATSUSHITA

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-20210

AT171,CT170,ST171

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

AT171,CT170,ST171

14V 1.4W

 1
84751 - SWITCH, SEAT HEATER
84751-20070

AT171,CT170,ST171..LHD

DOUBLE-SIZED SPACE

 2
84751-20060

AT171,CT170,ST171..LHD

SINGLE-SIZED SPACE

 2
84751 - SWITCH, SEAT HEATER
84751-20070

AT171,CT170,ST171..LHD

DOUBLE-SIZED SPACE

 2
84751-20060

AT171,CT170,ST171..LHD

SINGLE-SIZED SPACE

 2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-20240

AT171,CT170,ST171

 1
84790-20320

AT171,CT170..LHD

W(TIMER)

 1
84790-20250

AT171..EFI;AT171,CT170..RHD

W(TIMER)

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-20240

AT171,CT170,ST171

 1
84790-20320

AT171,CT170..LHD

W(TIMER)

 1
84790-20250

AT171..EFI;AT171,CT170..RHD

W(TIMER)

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-1601003

AT171,CT170,ST171..LB,SED

SHADOW GRAY,TRIM1#

 1
84930-1601024

AT171,CT170,ST171..LB,SED

DARK BLUE,TRIM8#

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-1601003

AT171,CT170,ST171..LB,SED

SHADOW GRAY,TRIM1#

 1
84930-1601024

AT171,CT170,ST171..LB,SED

DARK BLUE,TRIM8#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-12250

AT171,CT170,ST171

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

AT171,ST171

 1
88660C - SWITCH ASSY, COOLER CONTROL
84660-20130

AT171,CT170,ST171..LHD

 1
Common parts
82711-1A380
90149-40013
90170-09002
90463-13003
90463-15003
93319-13008
93319-14008
93319-15012
