AT171L-AEMNUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LHD

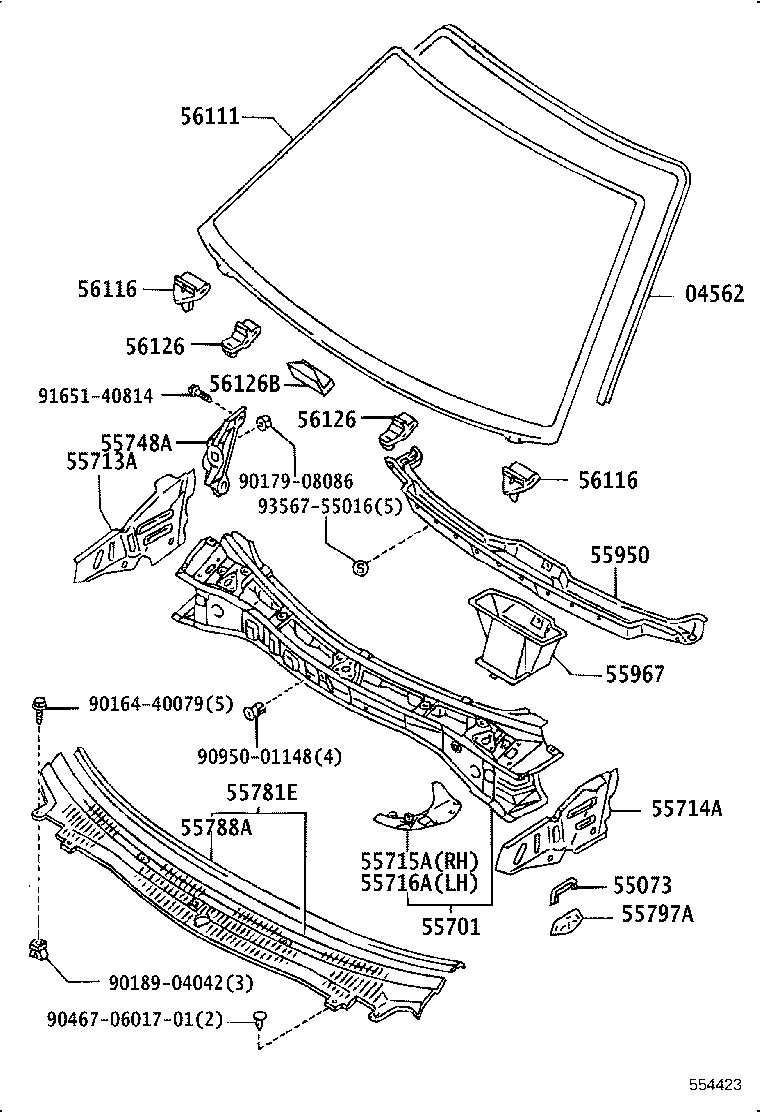

Click highlighted areas on diagram

diagram 04562 55073 55701 55713A 55714A 55715A 55716A 55748A 55781E 55788A 55797A 55950 55967 56111 56116 56116 56126 56126 56126B 9016440079 9017908086 9018904042 904670601701 9095001148 9165140814 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-20020

AT171,CT170,ST171

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20020

AT171,CT170,ST171

 2
55701 - PANEL SUB-ASSY, COWL
55700-20670

AT171,CT170,ST171..LHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-20100

AT171,CT170,ST171

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-20100

AT171,CT170,ST171

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-20090

AT171,CT170,ST171

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-20060

AT171,CT170,ST171

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-20110

AT171,CT170,ST171..LHD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-20090

AT171,CT170,ST171..LHD

COLD SPEC

 1
55708-20050

AT171,CT170,ST171..LHD

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-20080

AT171,CT170,ST171

 1
55797A - SEAL, COWL WATER EXTRACT
55797-20030

AT171,CT170,ST171

 2
55950 - NOZZLE ASSY, DEFROSTER
55951-20130

AT171,CT170,ST171..LHD

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-20030

AT171,CT170,ST171..LHD

 1
56111 - GLASS, WINDSHIELD
56111-20580

AT171,CT170,ST171

*TL,T=5.3,BLUE,W(TOP SHADE)

 1
56111-20560

AT171,CT170,ST171

*TT,T=5.0,BLUE

 1
56111-20710

AT171..LHD..CBR;CT170,ST171..LHD

*EHTL,T=5.3,BLUE,W(TOP SHADE)

 1
56111-20570

AT171,CT170,ST171

*TL,T=5.3,BLUE

 1
56116 - SPACER, WINDSHIELD GLASS
56116-20080

AT171,CT170,ST171

BLACK

 2
56116-20050

AT171,CT170,ST171

WHITE

 2
56116-20090

AT171,CT170,ST171

RED

 2
56116-20080

AT171,CT170,ST171..LHD

YELLOW

 2
56116 - SPACER, WINDSHIELD GLASS
56116-20080

AT171,CT170,ST171

BLACK

 2
56116-20050

AT171,CT170,ST171

WHITE

 2
56116-20090

AT171,CT170,ST171

RED

 2
56116-20080

AT171,CT170,ST171..LHD

YELLOW

 2
56126 - SPACER, WINDSHIELD GLASS, NO.2
56126-20010

AT171,CT170,ST171

 2
56126 - SPACER, WINDSHIELD GLASS, NO.2
56126-20010

AT171,CT170,ST171

 2
56126B - SPACER, WINDSHIELD GLASS, NO.2
56126-20020

AT171,CT170,ST171

 1
Common parts
90164-40079
90179-08086
90189-04042
90467-0601701
90950-01148
91651-40814
93567-55016
