AT171L-AEMNUG (1987)
Toyota Carina 2

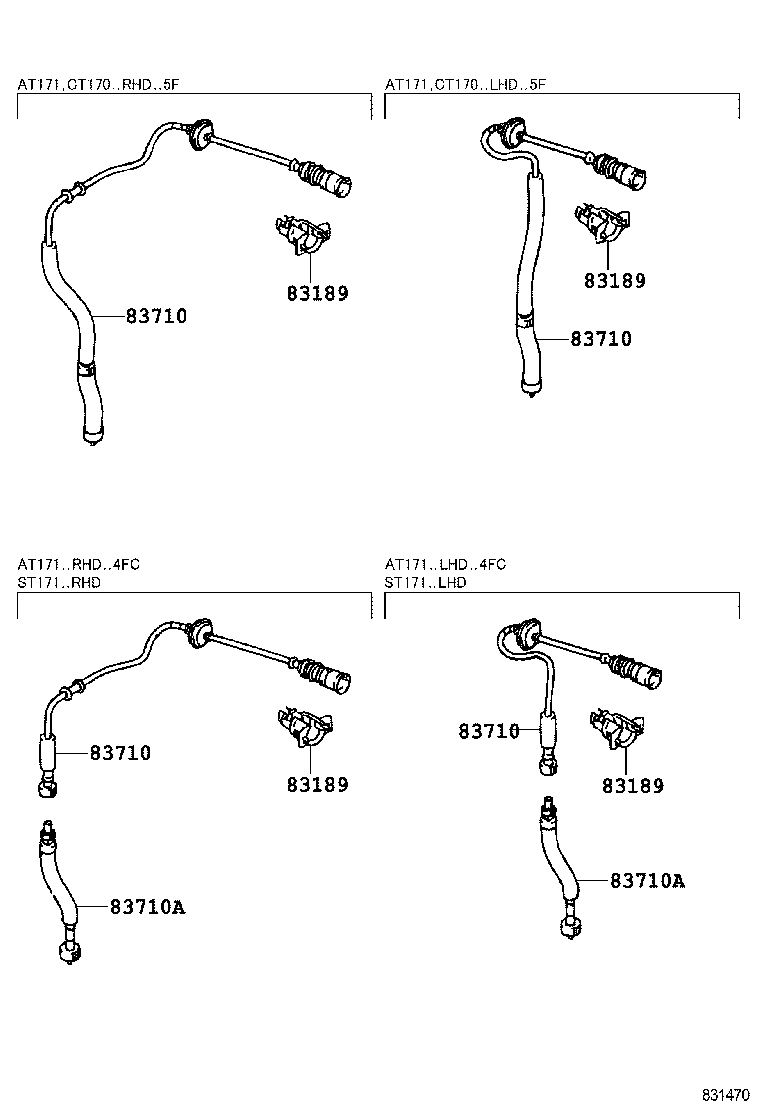

ILLUST NO. 3 OF 4(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT171,CT170,ST171 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT171,CT170,ST171 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT171,CT170,ST171 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT171,CT170,ST171 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20650 |
AT171,CT170..LHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20650 |
AT171,CT170..LHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20650 |
AT171,CT170..LHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20650 |
AT171,CT170..LHD..5F |
1 | ||

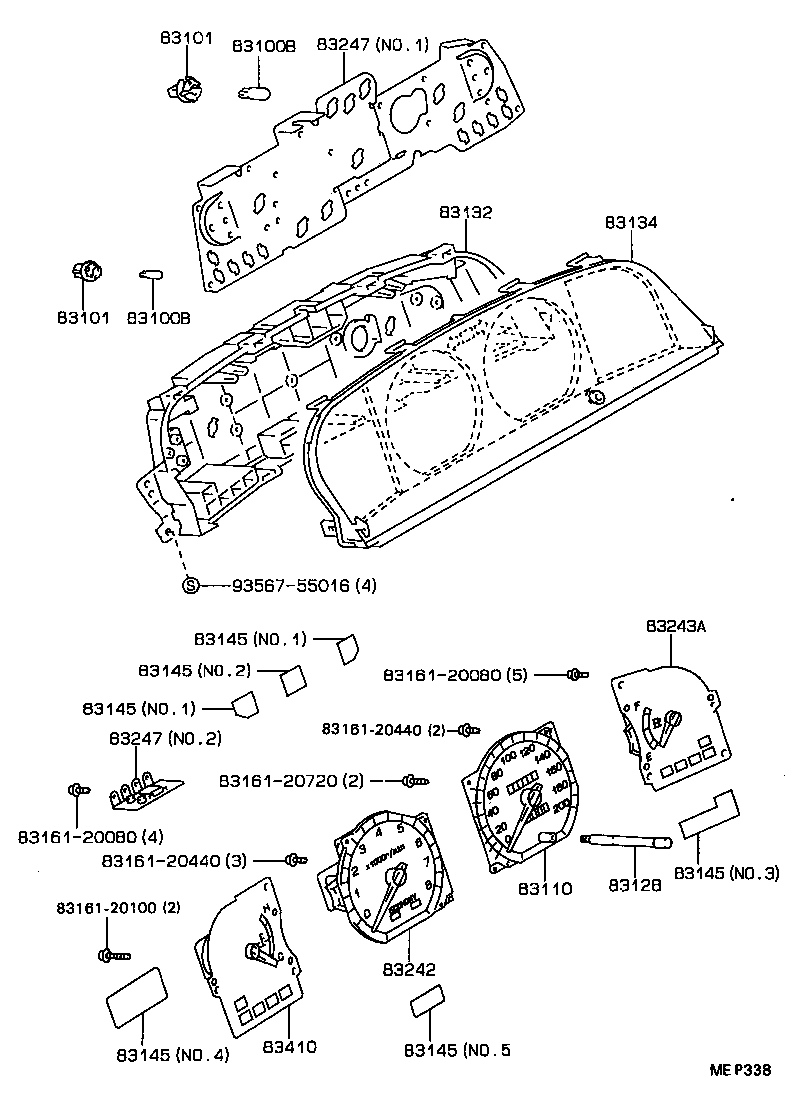

ILLUST NO. 1 OF 4(8712- )LHD
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST171;AT171..LHD;CT170..LB,SED;AT171..RHD..GL;CT170..LHD..WG 12V 1.2W W/O SOCKET |
18 | ||
| 99132-12034 |
AT171,CT170,ST171 12V 3.4W |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST171;AT171..LHD;CT170..LB,SED;AT171..RHD..GL;CT170..LHD..WG 12V 1.2W W/O SOCKET |
18 | ||
| 99132-12034 |
AT171,CT170,ST171 12V 3.4W |
17 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL 12V 3.4W BULB |
17 | ||
| 83101-14040 |
ST171;AT171..LHD;CT170..LB,SED;AT171..RHD..GL;CT170..LHD..WG 12V 1.4W BULB |
18 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL 12V 3.4W BULB |
17 | ||
| 83101-14040 |
ST171;AT171..LHD;CT170..LB,SED;AT171..RHD..GL;CT170..LHD..WG 12V 1.4W BULB |
18 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B770 |
AT171,ST171..LHD..GL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20710 |
AT171,CT170,ST171 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B440 |
AT171,ST171..LHD..GL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2B420 |
AT171,CT170,ST171..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-2B020 |
AT171,CT170,ST171..LHD NO.4 |
1 | ||
| 83145-2B980 |
AT171,CT170,ST171..LHD NO.3 |
1 | ||
| 83146-2B040 |
AT171,ST171..LHD NO.5 |
1 | ||
| 83145-2B460 |
AT171,CT170,ST171 NO.1 |
2 | ||
| 83145-2B480 |
AT171,CT170,ST171 NO.2 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2B240 |
AT171..LHD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-2B360 |
AT171,ST171..LHD..GL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-20640 |
AT171,ST171..LHD..GL NO.2 |
1 | ||
| 83247-2B740 |
AT171,ST171..LHD..GL NO.1 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-20640 |
AT171,ST171..LHD..GL NO.2 |
1 | ||
| 83247-2B740 |
AT171,ST171..LHD..GL NO.1 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2B240 |
AT171..LHD..CBR |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||

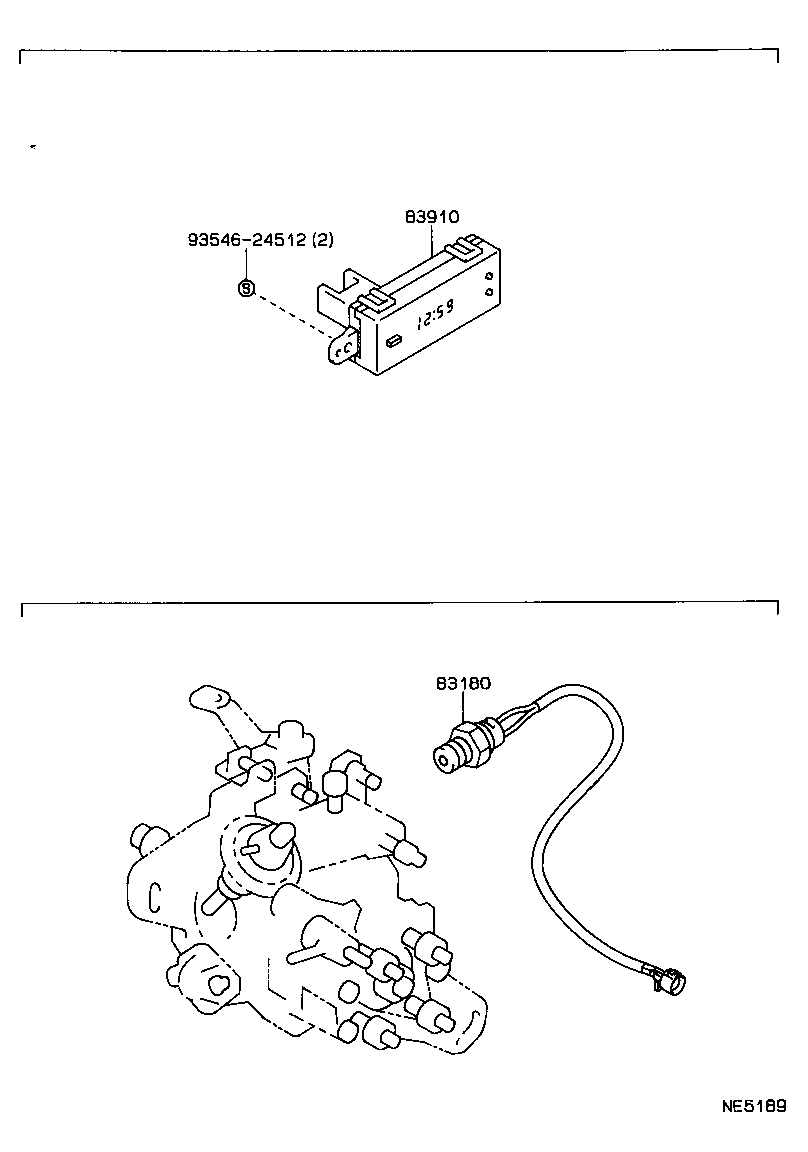

ILLUST NO. 2 OF 4(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20420 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 93546-24512 | ||||

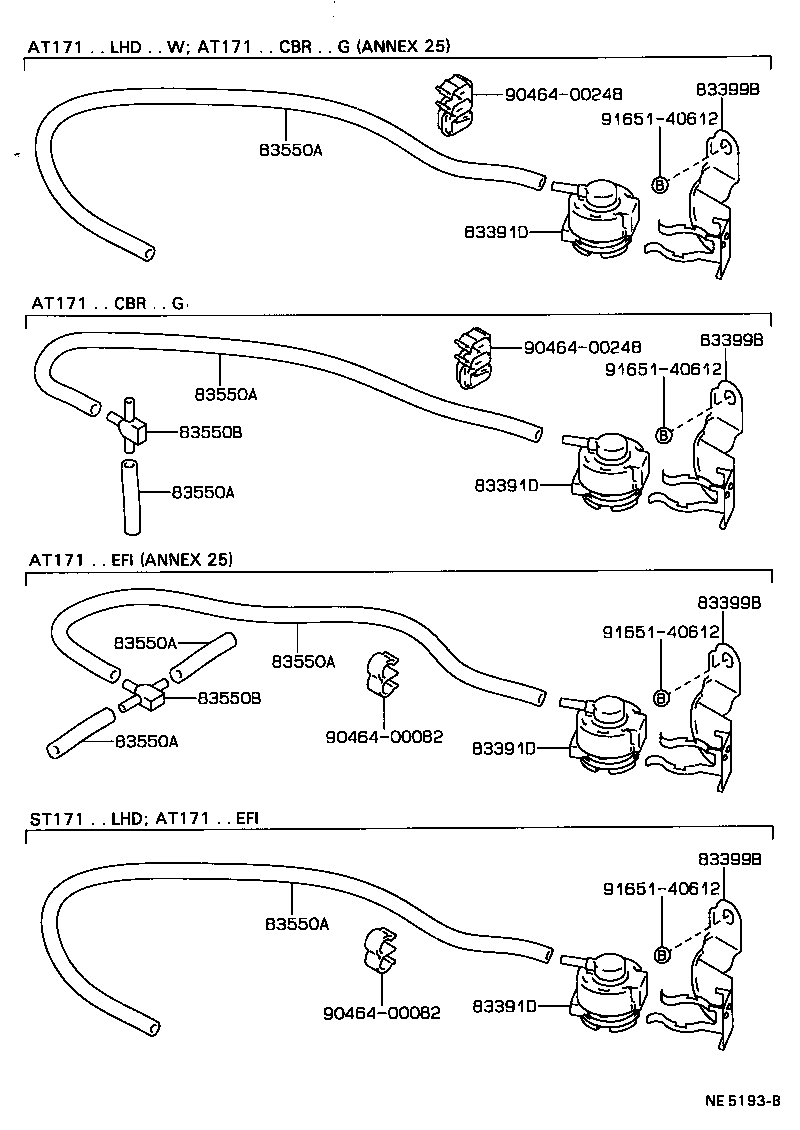

ILLUST NO. 4 OF 4(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171,ST171..LHD |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171,ST171..LHD |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171,ST171..LHD |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-20060 |
AT171,ST171..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-20160 |
AT171,ST171..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-20160 |
AT171,ST171..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-20160 |
AT171,ST171..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-20160 |
AT171,ST171..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 95411-10060 |
AT171..G..CBR *H,L=600,MARK=#0,ANNEX 25 |
1 | ||
| 90999-92004 |
AT171..G..CBR L=950 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90413-04005 |
AT171..G..CBR;AT171..5F..EFI |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90413-04005 |
AT171..G..CBR;AT171..5F..EFI |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 91651-40612 | ||||
