AT171L-AEMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )SED

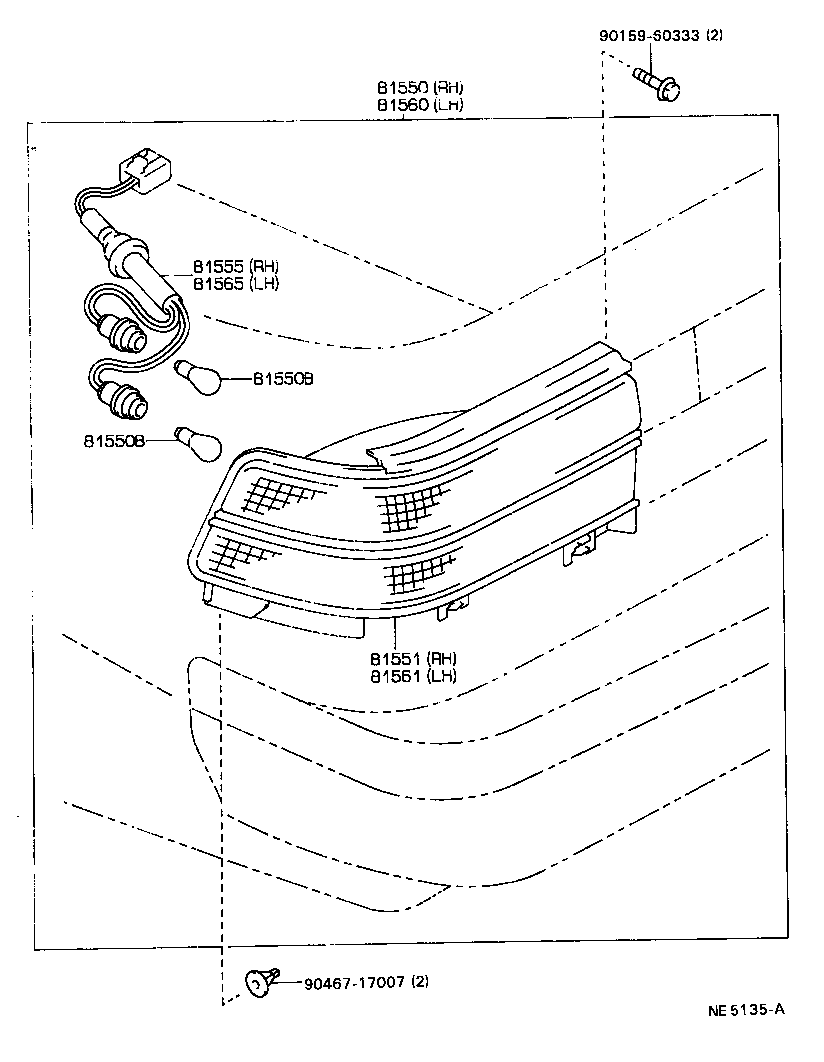

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81555 81560 81561 81565 9015960333 9046717007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-20860

AT171,CT170,ST171..SED

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT171,CT170,ST171

12V 21/5W

 2
99132-11210

AT171,CT170,ST171..LB,SED

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT171,CT170,ST171

12V 21/5W

 2
99132-11210

AT171,CT170,ST171..LB,SED

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20860

AT171,CT170,ST171..SED

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20840

AT171,CT170,ST171..SED

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-20790

AT171,CT170,ST171..SED

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20790

AT171,CT170,ST171..SED

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-20840

AT171,CT170,ST171..SED

 1
Common parts
90159-60333
90467-17007
