AT171L-AEMNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

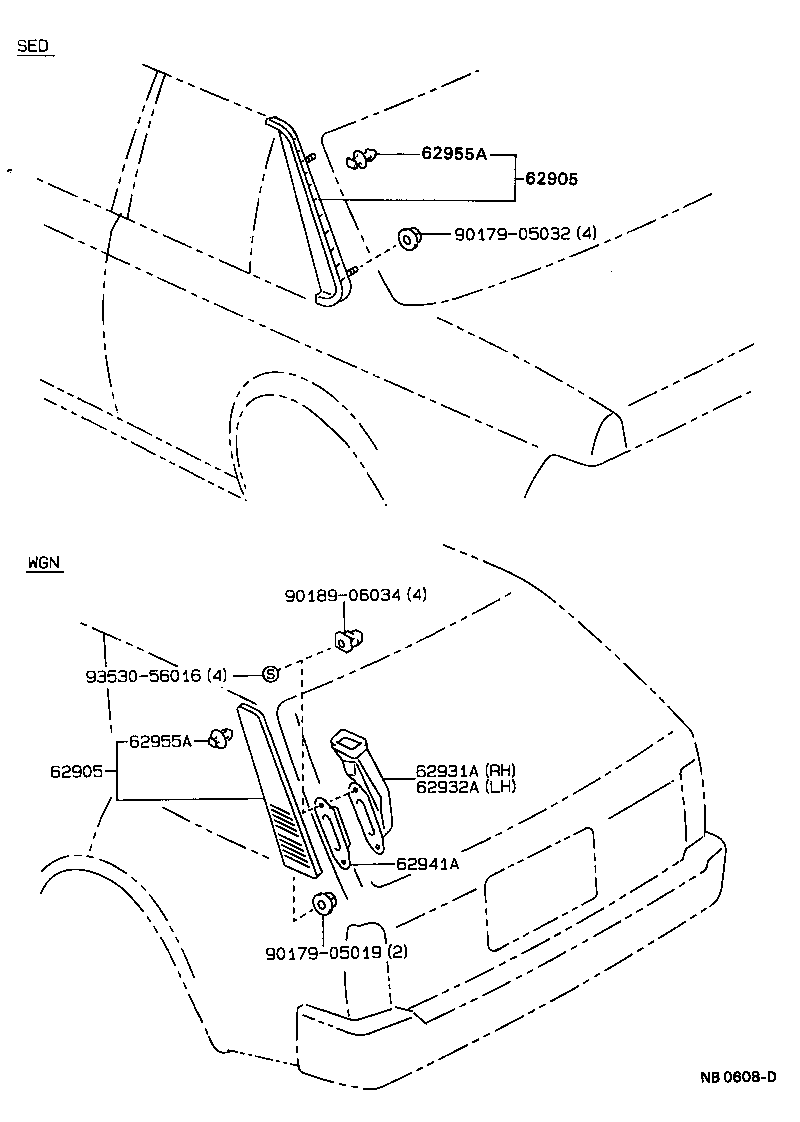

Click highlighted areas on diagram

diagram 62905 62905 62931A 62932A 62941A 62955A 62955A 9017905019 9017905032 9018906034 9353056016
Part # Description Qty Price
62905 - LOUVER, QUARTER VENTILATION
62905-20100

AT171,CT170,ST171..SED

RH

 1
62906-20100

AT171,CT170,ST171..SED

LH

 1
62905 - LOUVER, QUARTER VENTILATION
62905-20100

AT171,CT170,ST171..SED

RH

 1
62906-20100

AT171,CT170,ST171..SED

LH

 1
62955A - RETAINER, QUARTER VENT LOUVER
62955-89101

AT171,CT170,ST171..SED

 2
62955A - RETAINER, QUARTER VENT LOUVER
62955-89101

AT171,CT170,ST171..SED

 2
Common parts
90179-05019
90179-05032
90189-06034
93530-56016
