AT171L-AEMNKG (1987)
Toyota Carina 2

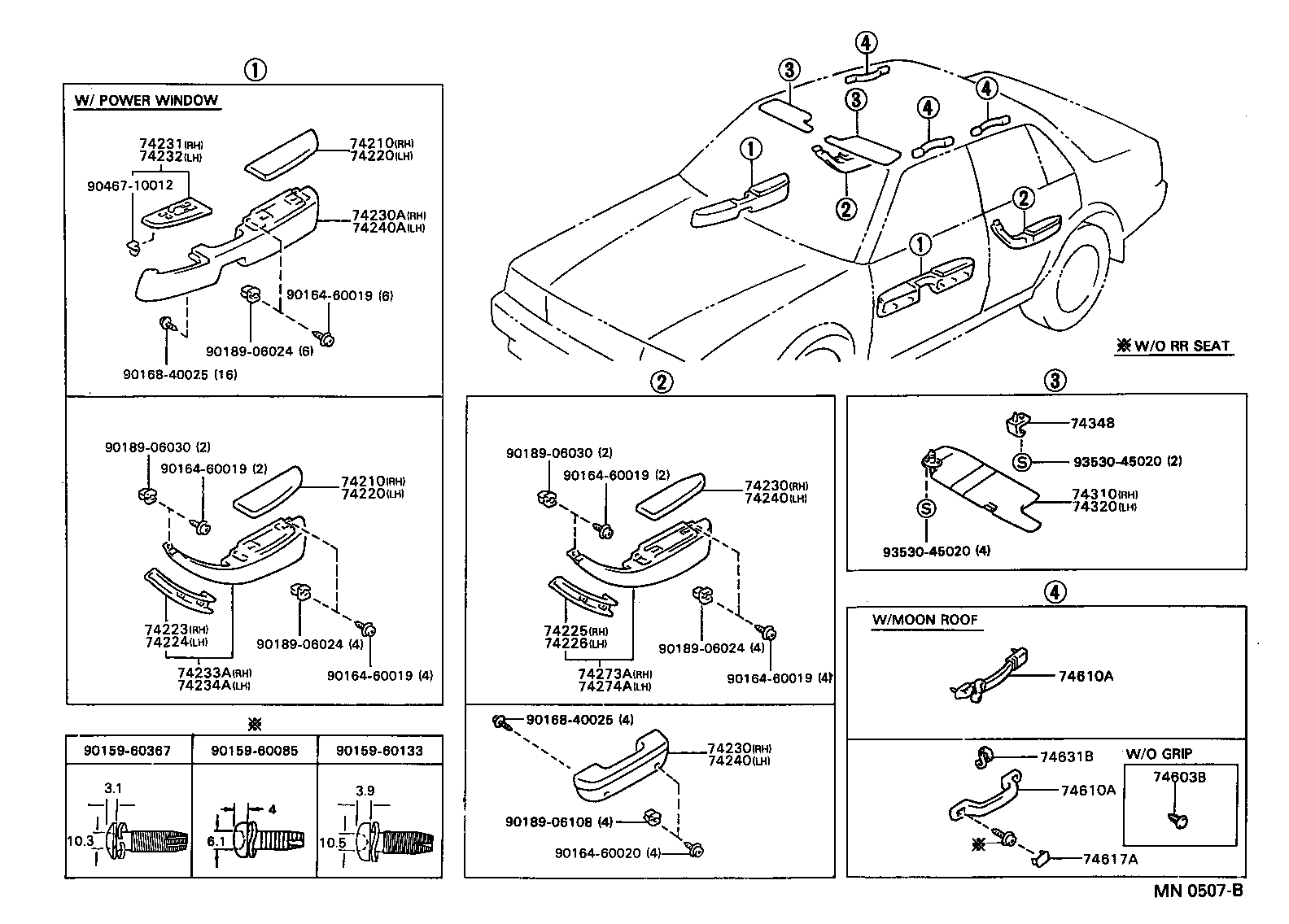

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2015003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74210-2015004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74210-2015004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74210-2015003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74210-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2015003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74210-2015004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74210-2015004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74210-2015003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74210-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-2015003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74220-2015004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74220-2015003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74220-2015004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74220-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-2015003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74220-2015004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74220-2015003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74220-2015004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74220-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 74223-2004004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
1 | ||
| 74223-2004003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
1 | ||
| 74223-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-2004003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
1 | ||
| 74224-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74224-2004004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74225-2003004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
1 | ||
| 74225-2003003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
1 | ||
| 74225-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74225-2003006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74225-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74226-2002003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
1 | ||
| 74226-2002006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74226-2002006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74226-2002006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74226-2002004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-2006003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL GRAY,TRIM1# |
1 | ||
| 74250-2006014 |
ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG) DARK BLUE,TRIM8# |
1 | ||
| 74250-2006004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL BLUE,TRIM8# |
1 | ||
| 74250-2006006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-2006003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL GRAY,TRIM1# |
1 | ||
| 74250-2006014 |
ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG) DARK BLUE,TRIM8# |
1 | ||
| 74250-2006004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL BLUE,TRIM8# |
1 | ||
| 74250-2006006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-2001003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 74230-2001004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 74230-2001006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74230-2001106 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74230-2001106 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74230-2001106 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-2019004 |
AT171,CT170,ST171..LHD BLUE,TRIM8# |
1 | ||
| 74231-2019003 |
AT171,CT170,ST171..LHD GRAY,TRIM1# |
1 | ||
| 74231-2019006 |
AT171,CT170,ST171..LHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 74231-2025006 |
AT171,CT170,ST171..LHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-2018006 |
AT171,CT170,ST171..LHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 74232-2018004 |
AT171,CT170,ST171..LHD BLUE,TRIM8# |
1 | ||
| 74232-2021006 |
AT171,CT170,ST171..LHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 74232-2018003 |
AT171,CT170,ST171..LHD GRAY,TRIM1# |
1 | ||
| 74233A - PANEL, FRONT DOOR ARMREST BASE, LOWER RH | ||||
| 74233-2006003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74233-2006004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74233-2006003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74233-2006004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74233-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74234A - PANEL, FRONT DOOR ARMREST BASE, LOWER LH | ||||
| 74234-2006003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 74234-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 74234-2006004 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 74234-2006003 |
ST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI) GRAY,TRIM1# |
1 | ||
| 74234-2006004 |
AT171,CT170,ST171..LB,SED BLUE,TRIM8# |
1 | ||
| 74234-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-2005014 |
ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG) DARK BLUE,TRIM8# |
1 | ||
| 74260-2005003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL GRAY,TRIM1# |
1 | ||
| 74260-2005004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL BLUE,TRIM8# |
1 | ||
| 74260-2005006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-2005014 |
ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG) DARK BLUE,TRIM8# |
1 | ||
| 74260-2005003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL GRAY,TRIM1# |
1 | ||
| 74260-2005004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL BLUE,TRIM8# |
1 | ||
| 74260-2005006 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-2001106 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 74240-2001003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 74240-2001106 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74240-2001114 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 74240-2001106 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74240-2001004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 74240-2001006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74240-2001114 |
CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..GL DARK BLUE,TRIM8# |
1 | ||
| 74273A - PANEL, REAR DOOR ARMREST BASE, LOWER RH | ||||
| 74273-2003003 |
AT171..(LB,SED)..EFI GRAY,TRIM1# |
1 | ||
| 74273-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74273-2003004 |
AT171..(LB,SED)..EFI BLUE,TRIM8# |
1 | ||
| 74273-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74274A - PANEL, REAR DOOR ARMREST BASE, LOWER LH | ||||
| 74274-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74274-2003003 |
AT171..(LB,SED)..EFI GRAY,TRIM1# |
1 | ||
| 74274-2003004 |
AT171..(LB,SED)..EFI BLUE,TRIM8# |
1 | ||
| 74274-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-2069004 |
AT171,ST171..LHD..GL BLUE,TRIM8# |
1 | ||
| 74310-2069006 |
AT171,ST171..LHD..GL SABLE,TRIM4# |
1 | ||
| 74310-2069003 |
AT171,ST171..LHD..GL GRAY,TRIM1# |
1 | ||
| 74310-2069014 |
AT171,ST171..LHD..GL DARK BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-2066003 |
AT171,ST171..LHD..GL GRAY,TRIM1# |
1 | ||
| 74320-2066004 |
AT171,ST171..LHD..GL BLUE,TRIM8# |
1 | ||
| 74320-2066006 |
AT171,ST171..LHD..GL SABLE,TRIM4# |
1 | ||
| 74320-2066014 |
AT171,ST171..LHD..GL DARK BLUE,TRIM8# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202003 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED LIGHT GRAY,TRIM1# |
2 | ||
| 74348-1202006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 74348-1202004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED LIGHT BLUE,TRIM8# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3201024 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
3 | ||
| 74610-3201043 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
3 | ||
| 74610-1403036 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),SABLE,TRIM4# |
3 | ||
| 74610-1403033 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),SHADOW GRAY,TRIM1# |
3 | ||
| 74610-1403024 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),DEEP BLUE,TRIM8# |
3 | ||
| 74610-1403044 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),DARK BLUE,TRIM8# |
3 | ||
| 74610-3201016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3201024 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
3 | ||
| 74610-3201043 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
3 | ||
| 74610-1403036 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),SABLE,TRIM4# |
3 | ||
| 74610-1403033 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),SHADOW GRAY,TRIM1# |
3 | ||
| 74610-1403024 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),DEEP BLUE,TRIM8# |
3 | ||
| 74610-1403044 |
AT171,CT170,ST171..LB,SED W(MOON ROOF),DARK BLUE,TRIM8# |
3 | ||
| 74610-3201016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-1601024 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED DEEP BLUE,TRIM8# |
6 | ||
| 74617-1601053 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED LIGHT GRAY,TRIM1# |
6 | ||
| 74617-1601046 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
6 | ||
| 74631B - HOOK, COAT | ||||
| 74631-2004013 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED GRAY,TRIM1# |
1 | ||
| 74631-2004004 |
ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED BLUE,TRIM8# |
1 | ||
| 74631-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 74631-2007006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-60085 | ||||
| 90159-60133 | ||||
| 90159-60367 | ||||
| 90164-60019 | ||||
| 90164-60020 | ||||
| 90168-40025 | ||||
| 90189-06024 | ||||
| 90189-06030 | ||||
| 90189-06108 | ||||
| 90467-10012 | ||||
| 93530-45020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
