AT171L-AEMDUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB,SED

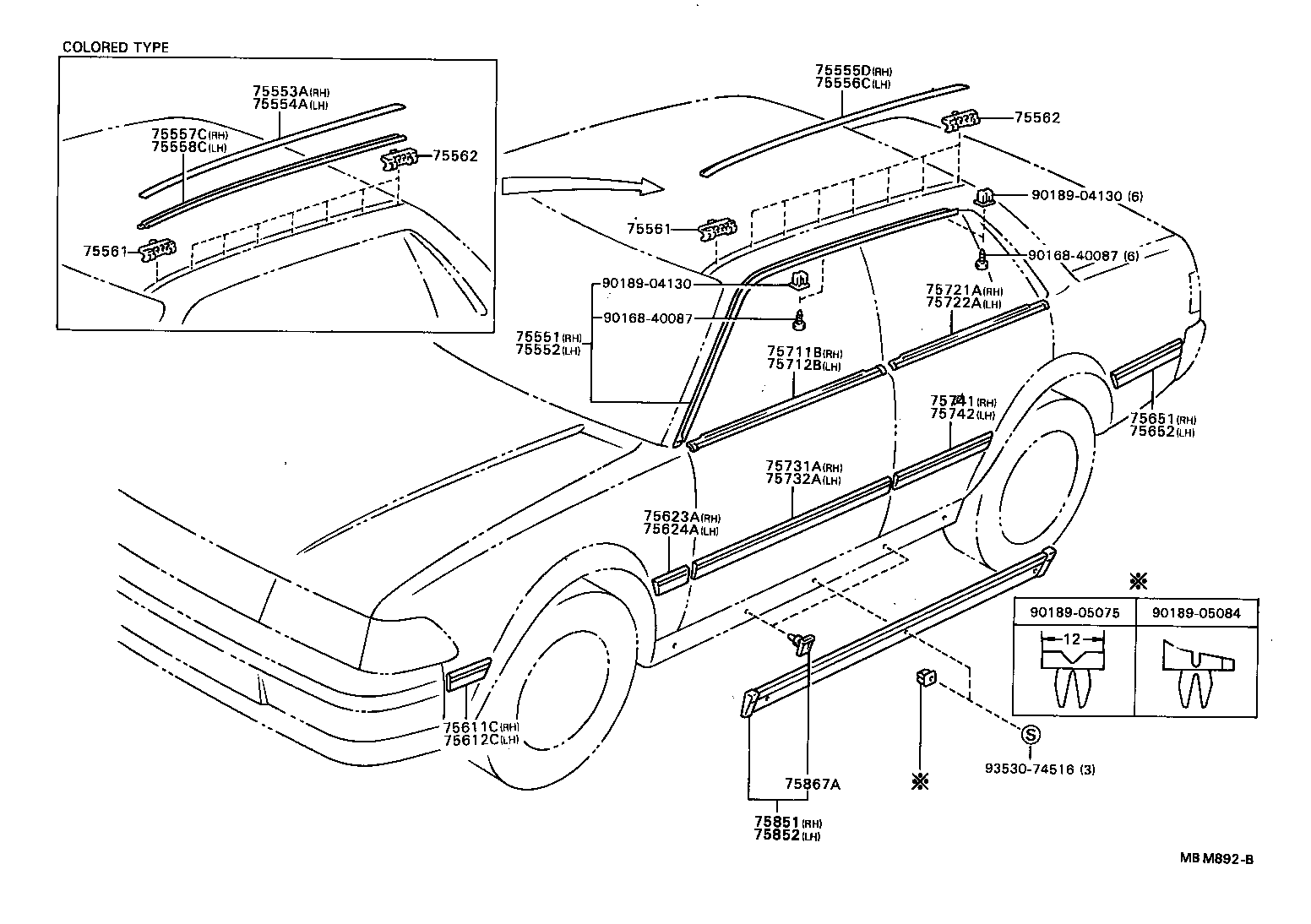

Click highlighted areas on diagram

diagram 75551 75552 75553A 75554A 75555D 75556C 75557C 75558C 75561 75561 75562 75562 75611C 75612C 75623A 75624A 75651 75652 75711B 75712B 75721A 75722A 75731A 75732A 75741 75742 75851 75852 75867A 9016840087 9016840087 9018904130 9018904130 9018905075 9018905084 9353074516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20280

AT171,CT170,ST171..SED

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20280

AT171,CT170,ST171..SED

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-20130

AT171,CT170,ST171..SED

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-20110

AT171,CT170,ST171..SED

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-20030

AT171,CT170..SED..XL

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-20030

AT171,CT170..SED..XL

 1
75557C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
75557-20050

AT171,CT170,ST171..SED

 1
75558C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
75558-20060

AT171,CT170,ST171..SED

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-20040

AT171,CT170,ST171

BROWN

 2
75561-20050

AT171,CT170,ST171

BLUE

 1
75561-20080

AT171,CT170,ST171

RED

 1
75561-20060

AT171,CT170,ST171

GREEN

 1
75561-20070

AT171,CT170,ST171

GRAY

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-20040

AT171,CT170,ST171

BROWN

 2
75561-20050

AT171,CT170,ST171

BLUE

 1
75561-20080

AT171,CT170,ST171

RED

 1
75561-20060

AT171,CT170,ST171

GREEN

 1
75561-20070

AT171,CT170,ST171

GRAY

 1
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-20020

AT171,CT170,ST171..LB,SED

NATURAL

 18
75562-20060

AT171,CT170,ST171

ORANGE

 1
75562-20030

AT171,CT170,ST171

BLACK

 1
75562-20040

AT171,CT170,ST171

YELLOW

 1
75562-20050

AT171,CT170,ST171

VIOLET

 1
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-20020

AT171,CT170,ST171..LB,SED

NATURAL

 18
75562-20060

AT171,CT170,ST171

ORANGE

 1
75562-20030

AT171,CT170,ST171

BLACK

 1
75562-20040

AT171,CT170,ST171

YELLOW

 1
75562-20050

AT171,CT170,ST171

VIOLET

 1
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-20461

AT171,CT170,ST171

 1
75611-20530

AT171,CT170,ST171

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-20431

AT171,CT170,ST171

 1
75612-20500

AT171,CT170,ST171

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20250

AT171,CT170,ST171

 1
75623-20161

AT171,CT170,ST171

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20161

AT171,CT170,ST171

 1
75624-20250

AT171,CT170,ST171

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-20370

AT171,CT170,ST171..LB,SED

 1
75651-20251

AT171,CT170,ST171..LB,SED

W(PLATING MOULDING)

 1
75651-20261

AT171,CT170..(LB,SED)..XL

 1
75651-20261

AT171,CT170,ST171..LB,SED

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-20340

AT171,CT170,ST171..LB,SED

 1
75652-20231

AT171,CT170,ST171..LB,SED

 1
75652-20161

AT171,CT170,ST171..LB,SED

W(PLATING MOULDING)

 1
75652-20231

AT171,CT170..(LB,SED)..XL

 1
75711B - MOULDING, FRONT DOOR BELT, RH
75711-20230

AT171,CT170,ST171

 1
75712B - MOULDING, FRONT DOOR BELT, LH
75712-20160

AT171,CT170,ST171

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-20180

AT171,CT170,ST171..SED,WG

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-20180

AT171,CT170,ST171..SED,WG

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20490

AT171,CT170,ST171

 1
75731-20401

AT171,CT170,ST171

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20401

AT171,CT170,ST171

 1
75732-20490

AT171,CT170,ST171

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20590

AT171,CT170,ST171

 1
75741-20521

AT171,CT170,ST171

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20501

AT171,CT170,ST171

 1
75742-20570

AT171,CT170,ST171

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29215

AT171,CT170,ST171

 1
75850-20160

AT171,CT170,ST171

 2
75850-29216

AT171,CT170,ST171

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-29215

AT171,CT170,ST171

 1
75850-29216

AT171,CT170,ST171

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-20030

AT171,CT170,ST171

 4
Common parts
90168-40087
90189-04130
90189-05075
90189-05084
93530-74516
