AT171L-AEMDKG (1988)
Toyota Carina 2

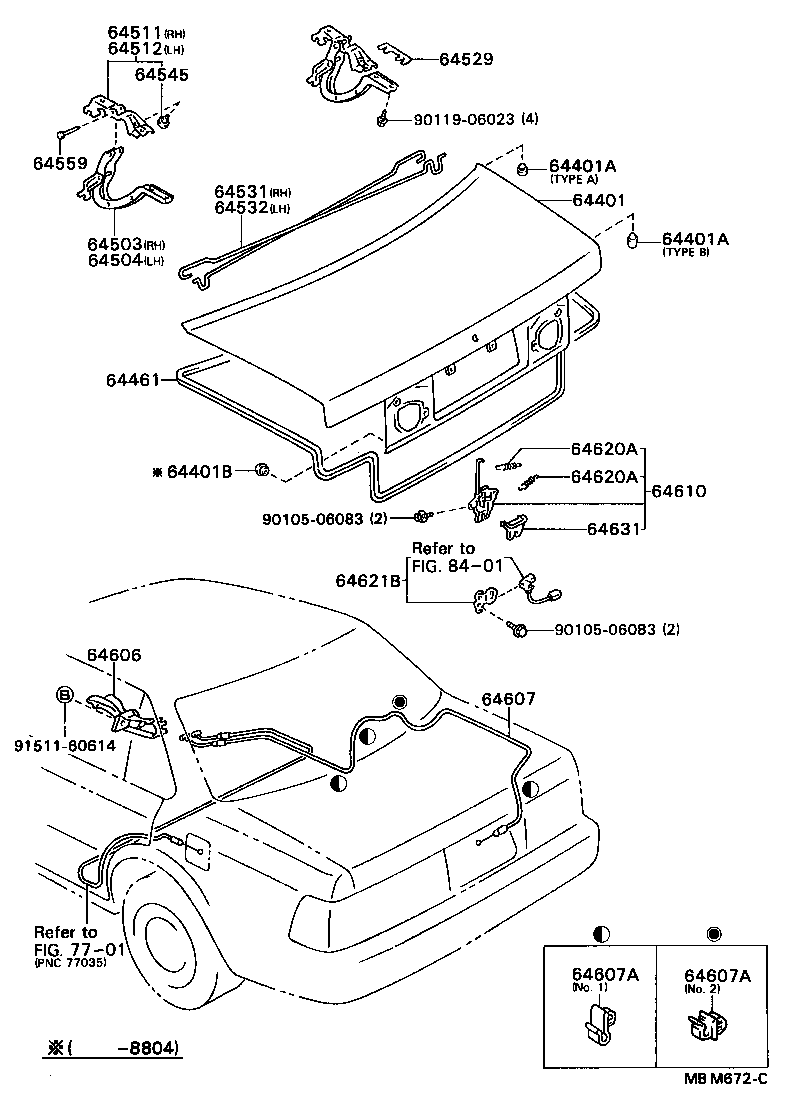

(8712-8911)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-2B330 |
AT171,ST171..SED..G W(LICENSE PLATE(360 X 175)) |
1 | ||
| 64401-2B340 |
AT171,CT170,ST171..SED |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AT171,CT170,ST171..SED TYPE A |
2 | ||
| 90541-09043 |
AT171,CT170,ST171..SED TYPE B |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AT171,CT170,ST171..SED TYPE A |
2 | ||
| 90541-09043 |
AT171,CT170,ST171..SED TYPE B |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01036 |
AT171,CT170,ST171..SED |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20290 |
AT171,CT170,ST171..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-20030 |
AT171,CT170,ST171..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-20030 |
AT171,CT170,ST171..SED |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-20130 |
AT171,CT170,ST171..SED |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-20130 |
AT171,CT170,ST171..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AT171,CT170,ST171..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20260 |
AT171,CT170..SED..XL COLD SPEC & W(SPLIT REAR SEAT) |
1 | ||
| 64531-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 64531-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64531-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20260 |
AT171,CT170..SED..XL COLD SPEC & W(SPLIT REAR SEAT) |
1 | ||
| 64532-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64532-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 64532-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AT171,CT170,ST171..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-20040 |
AT171,CT170,ST171..SED |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-20090 |
AT171,CT170,ST171..LHD..SED |
1 | ||
| 64606-20090 |
AT171,CT170,ST171..LHD..(LB,SED) |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-20390 |
AT171,CT170,ST171..SED |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AT171,CT170,ST171..SED NO.1 |
1 | ||
| 90467-08043 |
AT171,CT170,ST171..SED NO.2 |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AT171,CT170,ST171..SED NO.1 |
1 | ||
| 90467-08043 |
AT171,CT170,ST171..SED NO.2 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20160 |
AT171,CT170,ST171..SED |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
AT171,CT170,ST171..SED YELLOW |
1 | ||
| 90506-05002 |
AT171,CT170,ST171..SED WHITE |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
AT171,CT170,ST171..SED YELLOW |
1 | ||
| 90506-05002 |
AT171,CT170,ST171..SED WHITE |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-20050 |
AT171,CT170,ST171..SED |
1 | ||
| 64621-12060 |
AT171,CT170,ST171..SED |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-20010 |
AT171,CT170,ST171..SED |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90119-06023 | ||||
| 91511-60614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||

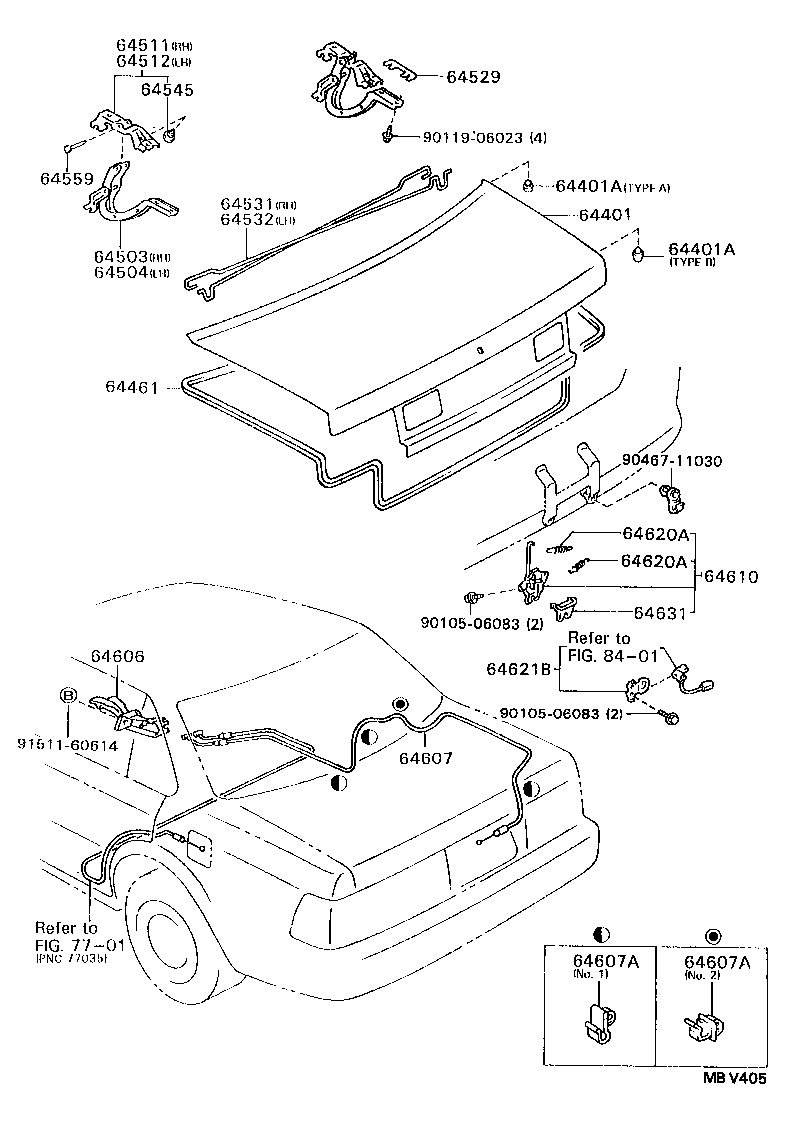

(8911- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-2B330 |
AT171,ST171..SED..G W(LICENSE PLATE(360 X 175)) |
1 | ||
| 64401-2B340 |
AT171,CT170,ST171..SED |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AT171,CT170,ST171..SED TYPE A |
2 | ||
| 90541-09043 |
AT171,CT170,ST171..SED TYPE B |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AT171,CT170,ST171..SED TYPE A |
2 | ||
| 90541-09043 |
AT171,CT170,ST171..SED TYPE B |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20290 |
AT171,CT170,ST171..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-20030 |
AT171,CT170,ST171..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-20030 |
AT171,CT170,ST171..SED |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-20130 |
AT171,CT170,ST171..SED |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-20130 |
AT171,CT170,ST171..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AT171,CT170,ST171..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20260 |
AT171,CT170..SED..XL COLD SPEC & W(SPLIT REAR SEAT) |
1 | ||
| 64531-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 64531-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64531-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20260 |
AT171,CT170..SED..XL COLD SPEC & W(SPLIT REAR SEAT) |
1 | ||
| 64532-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64532-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 64532-20260 |
AT171,CT170..LHD..SED..XL W(SPLIT REAR SEAT) |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AT171,CT170,ST171..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-20040 |
AT171,CT170,ST171..SED |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-20090 |
AT171,CT170,ST171..LHD..SED |
1 | ||
| 64606-20090 |
AT171,CT170,ST171..LHD..(LB,SED) |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-20390 |
AT171,CT170,ST171..SED |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AT171,CT170,ST171..SED NO.1 |
1 | ||
| 90467-08043 |
AT171,CT170,ST171..SED NO.2 |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AT171,CT170,ST171..SED NO.1 |
1 | ||
| 90467-08043 |
AT171,CT170,ST171..SED NO.2 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20160 |
AT171,CT170,ST171..SED |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
AT171,CT170,ST171..SED YELLOW |
1 | ||
| 90506-05002 |
AT171,CT170,ST171..SED WHITE |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
AT171,CT170,ST171..SED YELLOW |
1 | ||
| 90506-05002 |
AT171,CT170,ST171..SED WHITE |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-20050 |
AT171,CT170,ST171..SED |
1 | ||
| 64621-12060 |
AT171,CT170,ST171..SED |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-20010 |
AT171,CT170,ST171..SED |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90119-06023 | ||||
| 90467-11030 | ||||
| 91511-60614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
