TA62LG-AWMDCC (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 3TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

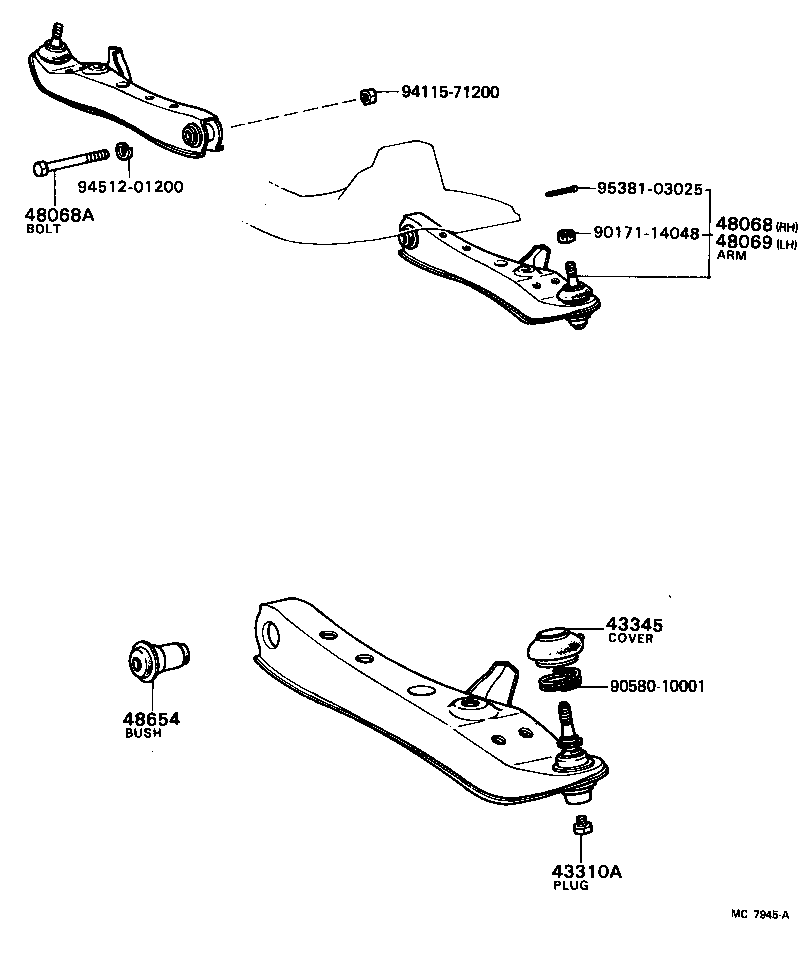

Click highlighted areas on diagram

diagram 43310A 43345 48068 48068A 48069 48654 9017114048 9058010001 9411571200 9451201200 9538103025
Part # Description Qty Price
43310A - PLUG (FOR BALL JOINT)
90345-06014

CA60,TA6#

 2
43345 - COVER, LOWER BALL JOINT DUST
43345-14020

CA60,TA6#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19115

TA62..SDN,SDZ

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-12291

CA60,TA6#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19095

TA62..SDN,SDZ

 1
Common parts
90171-14048
90580-10001
94115-71200
94512-01200
95381-03025
