TA62L-AEMNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED

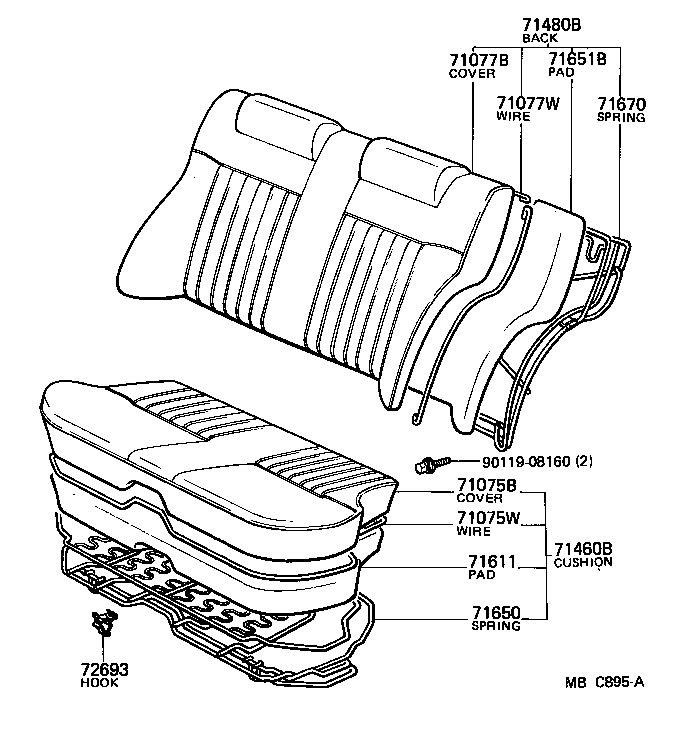

Click highlighted areas on diagram

diagram 71075B 71075W 71077B 71077W 71460B 71480B 71611 71650 71651B 71670 72693 9011908160
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1B39001

TA6#..GL

FB,BLACK,BLACK,TRIM2#

 1
71075-1B39005

TA6#..GL

FB,BEIGE,BEIGE,TRIM4#

 1
71075-1B39004

TA6#..GL

FB,BLUE,BLUE,TRIM8#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20116

CA60,TA6#..SED

L=960

 1
90580-20168

CA60,TA6#..SED

L=1300

 1
90580-20125

CA60,TA6#..SED

L=370

 2
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1B32005

TA6#..GL

FB,BEIGE,BEIGE,TRIM4#

 1
71077-1B32004

TA6#..GL

FB,BLUE,BLUE,TRIM8#

 1
71077-1B32001

TA6#..GL

FB,BLACK,BLACK,TRIM2#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20007

CA60,TA6#..SED

L=1200

 1
90580-20033

CA60,TA6#..SED

L=670

 2
90580-20161

CA60,TA6#..SED

L=180

 2
90580-20131

CA60,TA6#..SED

L=990

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1B42005

TA6#..GL

FB,BEIGE,BEIGE,TRIM4#

 1
71460-1B42001

TA6#..GL

FB,BLACK,BLACK,TRIM2#

 1
71460-1B42004

TA6#..GL

FB,BLUE,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1B38004

TA6#..GL

FB,BLUE,BLUE,TRIM8#

 1
71480-1B38001

TA6#..GL

FB,BLACK,BLACK,TRIM2#

 1
71480-1B38005

TA6#..GL

FB,BEIGE,BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-14120

CA60,TA6#..SED

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-14050

CA60,TA6#..SED

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-14040

TA6#..GL

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-14080

CA60,TA6#..SED

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14030

CA60,TA6#

 2
Common parts
90119-08160
