TA62L-AEMNSW (1981)
Toyota Carina
Production
Aug 1981
-
Aug 1982
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )SED

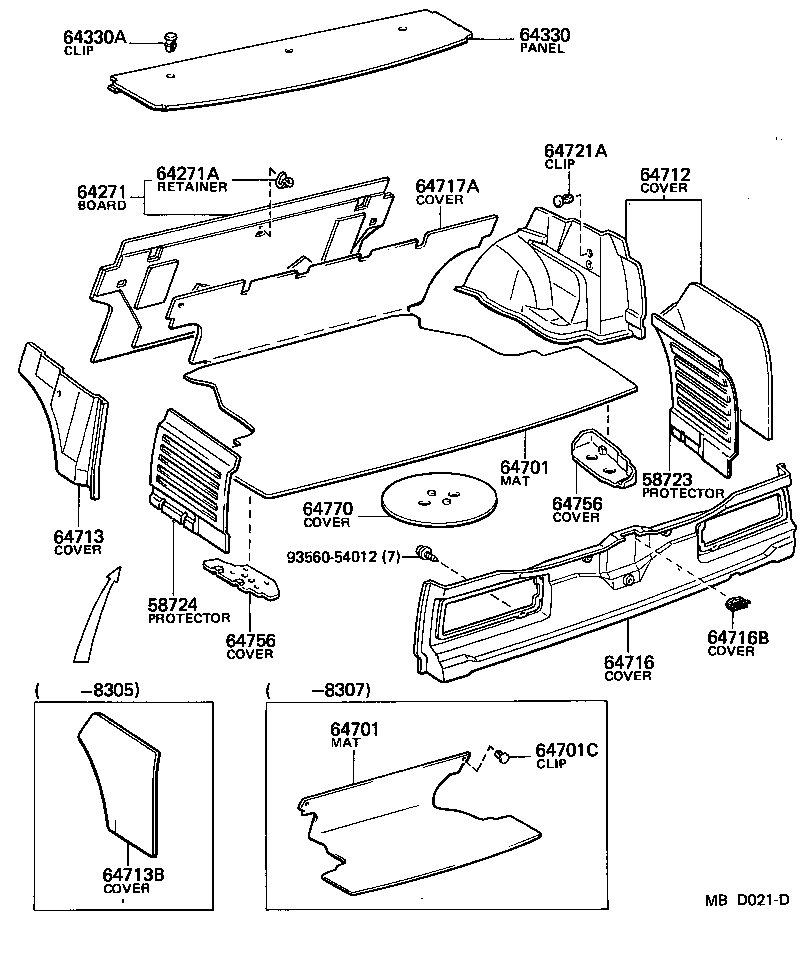

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64271 - BOARD, ROOM PARTITION, NO.1 | ||||
| 64270-14060 |
TA6#..SED |
1 | ||
| 64271A - RETAINER, ROOM PARTITION BOARD | ||||
| 62598-14020 |
CA60,TA6#..SED |
2 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-1429004 |
TA62..GL BLUE,BLUE,TRIM8# |
1 | ||
| 64330-1429006 |
TA62..GL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 64330-1429001 |
TA62..GL BLACK,BLACK,TRIM2# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0914401 |
CA60,TA6#..SED BLACK,BLACK,TRIM2# |
5 | ||
| 90467-0914416 |
CA60,TA6#..SED DARK BROWN,BROWN,TRIM4# |
5 | ||
| 90467-0914414 |
CA60,TA6#..SED BLUE,BLUE,TRIM8# |
5 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-14140 |
TA62..GL |
1 | ||
| 64701-14141 |
TA62..GL |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-14140 |
TA62..GL |
1 | ||
| 64701-14141 |
TA62..GL |
1 | ||
| 64701C - CLIP(FOR LUGGAGE COMPARTMENT MAT) | ||||
| 90467-0715803 |
CA60,TA6#..SED GRAY,GRAY |
2 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64071-14010 |
CA60,TA6#..SED |
1 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-14080 |
CA60,TA6#..SED |
1 | ||
| 64713B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-14090 |
CA60,TA6#..SED |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-14070 |
TA62..GL |
1 | ||
| 64716B - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-14030 |
CA60,TA6#..SED |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-07158 |
CA60,TA6#..SED |
4 | ||
| 64756 - COVER, LUGGAGE COMPARTMENT SIDE | ||||
| 58773-14040 |
CA60,TA6#..SED RH |
1 | ||
| 58704-14040 |
TA62..GL;TA60..SED LH,URETHANE BUMPER |
1 | ||
| 58704-14030 |
CA60,TA6#..SED LH |
1 | ||
| 64756 - COVER, LUGGAGE COMPARTMENT SIDE | ||||
| 58773-14040 |
CA60,TA6#..SED RH |
1 | ||
| 58704-14040 |
TA62..GL;TA60..SED LH,URETHANE BUMPER |
1 | ||
| 58704-14030 |
CA60,TA6#..SED LH |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-14010 |
CA60,TA6#..SED |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
