TA62L-AEMNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

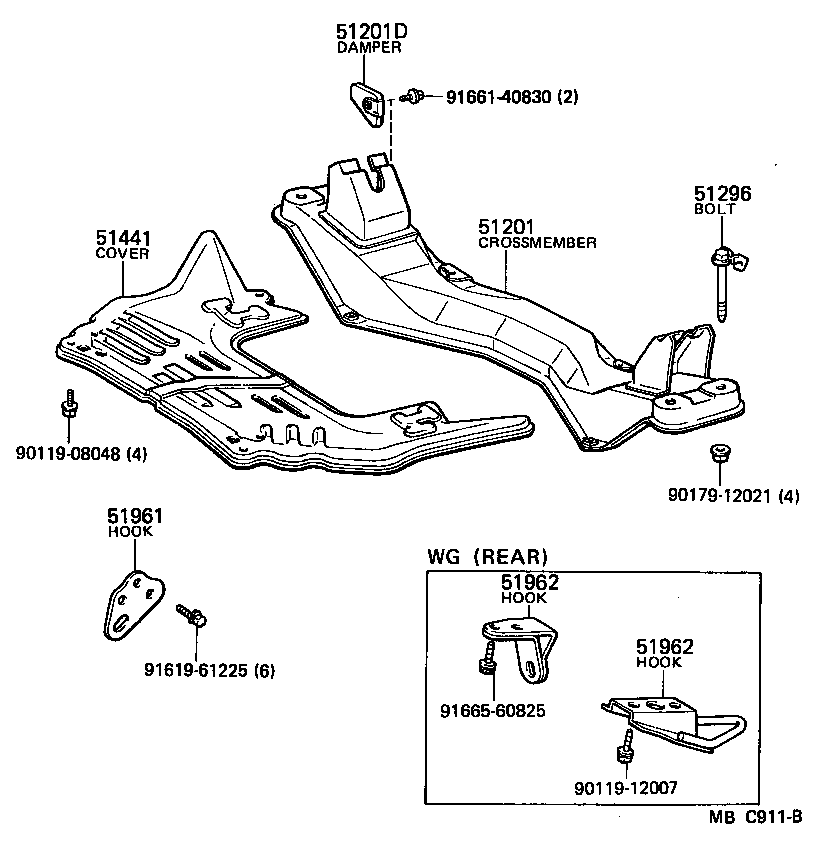

Click highlighted areas on diagram

diagram 51201 51201D 51296 51441 51961 51962 51962 9011908048 9011912007 9017912021 9161961225 9166140830 9166560825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-14250

TA62..LHD..EUG

 1
51201D - DAMPER, FRONT SUSPENSION MEMBER
51204-14010

TA6#..EUR

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

CA60,TA60;TA62..EUG

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14060

TA6#

 1
51961 - HOOK, NO.1
51963-14080

CA60,TA6#

 2
Common parts
90119-08048
90119-12007
90179-12021
91619-61225
91661-40830
91665-60825
