TA62L-AEMDCC (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED,WG

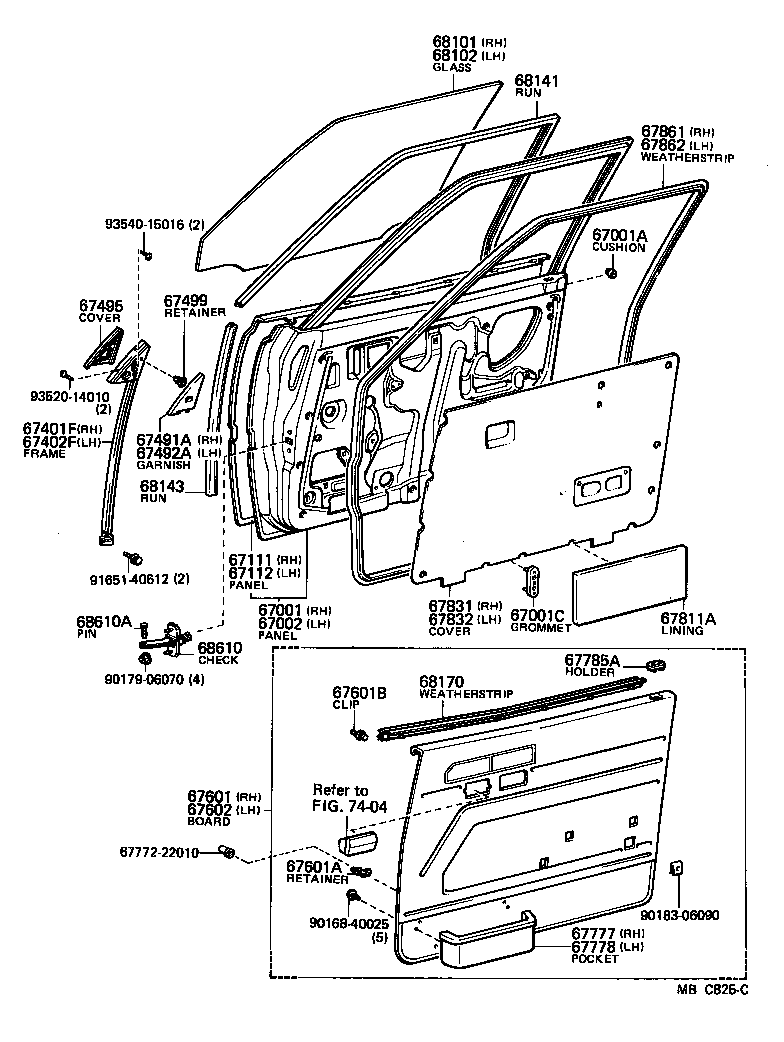

Click highlighted areas on diagram

diagram 67001 67001A 67001C 67002 67111 67112 67401F 67402F 67491A 67492A 67495 67499 67601 67601A 67601B 67602 6777222010 67777 67778 67785A 67811A 67831 67832 67861 67862 68101 68102 68141 68143 68170 68610 68610A 7404 9016840025 9017906070 9018306090 9165140612 9352014010 9354015016
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-14140

CA60,TA6#..SED,WG

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

CA60,TA6#..SED,WG

 4
67001C - GROMMET(FOR FRONT DOOR PANEL)
90541-07011

CA60,TA6#..SED,WG

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-14240

CA60,TA6#..SED,WG

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-14160

CA60,TA6#..SED,WG

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-14170

CA60,TA6#..SED,WG

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-14120

CA60,TA6#..SED,WG

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-14120

CA60,TA6#..SED,WG

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-14040

CA60,TA6#..SED,WG

W/*RCM

 1
67491-14030

CA60,TA6#..SED,WG

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-14040

CA60,TA6#..SED,WG

W/*RCM

 1
67492-14030

CA60,TA6#..SED,WG

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-14030

CA60,TA6#..SED,WG

RH

 1
67496-14030

CA60,TA6#..SED,WG

LH

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

CA60,TA6#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1B49001

CA60,TA6#..(SED,WG)..LHD..DLX

BLACK,BLACK,TRIM2#

 1
67610-1B49006

CA60,TA6#..(SED,WG)..LHD..DLX

DARK BROWN,BROWN,TRIM4#

 1
67610-1B49004

CA60,TA6#..SED..LHD..DLX

BLUE,BLUE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-14010

CA60,TA6#

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67771-12010

CA60,TA6#

 20
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1B18006

CA60,TA6#..(SED,WG)..LHD..DLX

DARK BROWN,BROWN,TRIM4#

 1
67620-1B18004

CA60,TA6#..SED..LHD..DLX

BLUE,BLUE,TRIM8#

 1
67620-1B18001

CA60,TA6#..(SED,WG)..LHD..DLX

BLACK,BLACK,TRIM2#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-2203016

CA60,TA6#..LHD..DLX

DARK BROWN,BROWN,TRIM4#

 1
67778-2203014

CA60,TA6#..(CP,SED)..LHD..DLX

BLUE,BLUE,TRIM8#

 1
67778-2203001

CA60,TA6#..LHD..DLX

BLACK,BLACK,TRIM2#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-20040

CA60,TA6#..SED,WG

 2
67811A - PAD, REAR DOOR SILENCER
67812-20050

CA60,TA6#..SED,WG

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-14110

CA60,TA6#..(SED,WG)..LHD

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-14030

CA60,TA6#..(SED,WG)..LHD

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-14230

CA60,TA6#..SED,WG

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-14230

CA60,TA6#..SED,WG

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-14260

CA60,TA6#..SED,WG

*TT,T=4.0,T=4.0,*TT

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-14270

CA60,TA6#..SED,WG

*TT,T=4.0,T=4.0,*TT

 1
68141 - RUN, FRONT DOOR GLASS
68141-14060

CA60,TA6#..SED

 2
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-20050

CA60,TA6#..SED

L=450

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-14150

CA60,TA6#..SED,WG

RH

 1
68220-14120

CA60,TA6#..SED,WG

LH

 1
68610 - CHECK ASSY, FRONT DOOR
68610-14030

CA60,TA6#..SED,WG

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

CA60,TA6#..SED,WG

 2
Common parts
67772-22010
90168-40025
90179-06070
90183-06090
91651-40612
93520-14010
93540-15016
Linked diagrams
7404
