TA62L-AEMDCC (1981)
Toyota Carina
Production
Aug 1981
-
Aug 1982
Engine
3TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )SDN,SDZ

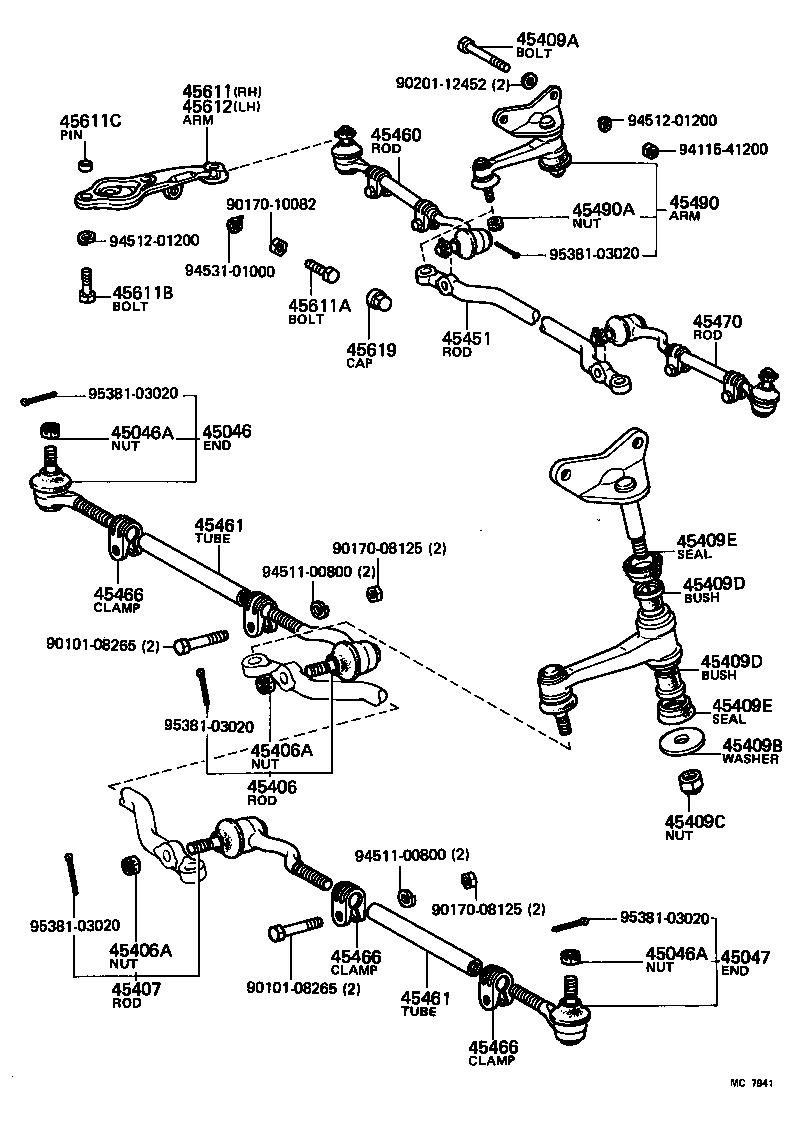

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29075 |
TA62..SDN,SDZ |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CA60,TA6# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CA60,TA6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29075 |
TA62..SDN,SDZ |
2 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-19016 |
TA62..SDN,SDZ |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
TA62..SDN,SDZ |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
TA62..SDN,SDZ |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-19075 |
TA62..SDN,SDZ |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12017 |
TA62..SDN,SDZ |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
TA62..SDN,SDZ |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
TA62..SDN,SDZ |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
TA62..SDN,SDZ |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
TA62..SDN,SDZ |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
TA62..SDN,SDZ |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
TA62..SDN,SDZ |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-14070 |
TA62..SDN,SDZ |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19175 |
TA62..SDN,SDZ |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
TA62..SDN,SDZ |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
TA62..SDN,SDZ |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CA60,TA6# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CA60,TA6# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CA60,TA6# |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19025 |
TA62..SDN,SDZ |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-19265 |
TA62..SDN,SDZ |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
TA62..SDN,SDZ |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14060 |
TA62..SDN,SDZ |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
CA60,TA6# L=34 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
CA60,TA6# L=42 |
4 | ||
| 90101-12295 |
CA60,TA6# L=35 |
4 | ||
| 90101-12379 |
CA60,TA6# L=39 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
CA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14060 |
TA62..SDN,SDZ |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
CA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90201-12452 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
