TA62L-ACMESW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

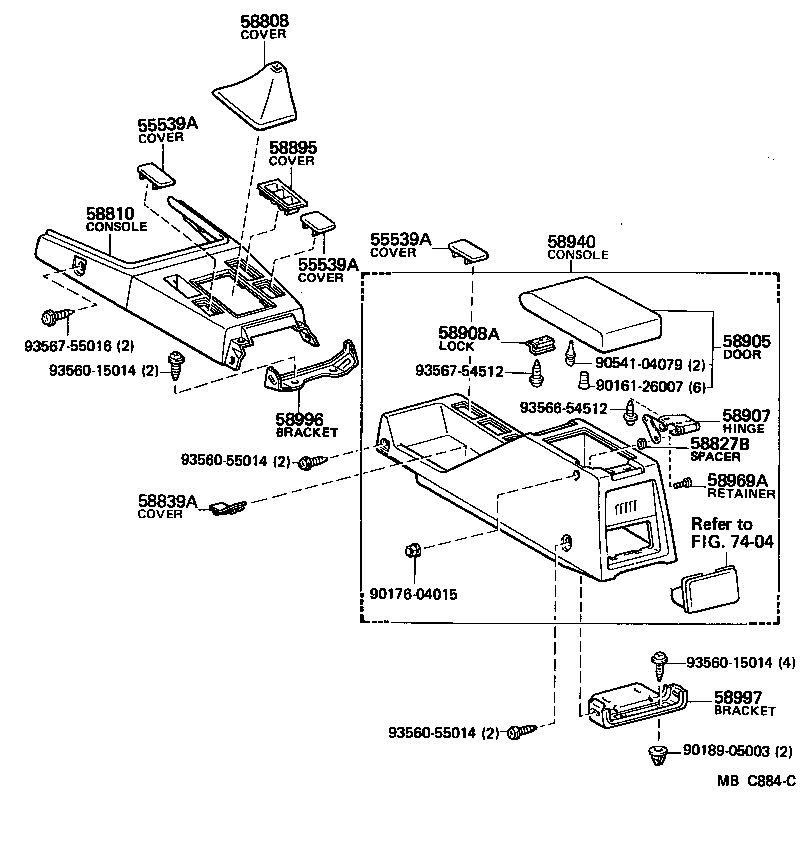

Click highlighted areas on diagram

diagram 55539A 55539A 55539A 58808 58810 58827B 58839A 58895 58905 58907 58908A 58940 58969A 58996 58997 7404 9016126007 9017604015 9018905003 9054104079 9356015014 9356015014 9356055014 9356055014 9356654512 9356754512 9356755016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2401006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 4
55539-2401001

CA60,TA6#

BLACK,BLACK,TRIM2#

 4
55539-2401004

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 4
55539A - COVER, SPARE SWITCH HOLE
55539-2401006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 4
55539-2401001

CA60,TA6#

BLACK,BLACK,TRIM2#

 4
55539-2401004

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 4
55539A - COVER, SPARE SWITCH HOLE
55539-2401006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 4
55539-2401001

CA60,TA6#

BLACK,BLACK,TRIM2#

 4
55539-2401004

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 4
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1412004

TA6#..MTM

BLUE,BLUE,TRIM8#

 1
58808-1412016

TA6#..MTM

DARK BROWN,BROWN,TRIM4#

 1
58808-1412001

TA6#..MTM

BLACK,BLACK,TRIM2#

 1
58810 - CONSOLE ASSY
58811-1419006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 1
58811-1419004

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 1
58811-1419001

CA60,TA6#

BLACK,BLACK,TRIM2#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

TA6#..GL,XE

 1
58839A - COVER, CONSOLE BOX HOLE
58839-1401001

CA60,TA6#

BLACK,BLACK,TRIM2#

 1
58839-1401006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 1
58839-1401004

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 1
58895 - COVER, SWITCH HOLE, NO.1
55528-1403006

CA60,TA6#

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

 1
55528-1403004

CA60,TA6#..CP,SED

W/COIN POCKET,BLUE,BLUE,TRIM8#

 1
55528-1403001

CA60,TA6#

W/COIN POCKET,BLACK,BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1404004

TA6#..GL,XE

BLUE,BLUE,TRIM8#

 1
58905-1404001

TA6#..GL,XE

BLACK,BLACK,TRIM2#

 1
58905-1404006

TA6#..GL,XE

DARK BROWN,BROWN,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-14010

TA6#..GL,XE

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22010

TA6#..GL,XE

 1
58940 - CONSOLE ASSY, REAR
58901-1405001

TA6#..GL,XE

BLACK,BLACK,TRIM2#

 1
58901-1405004

TA6#..GL,XE

BLUE,BLUE,TRIM8#

 1
58901-1405006

TA6#..GL,XE

DARK BROWN,BROWN,TRIM4#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

TA6#..GL,XE

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58902-14030

CA60,TA6#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-24010

CA60,TA6#

 1
Common parts
90161-26007
90176-04015
90189-05003
90541-04079
93560-15014
93560-55014
93566-54512
93567-54512
93567-55016
Linked diagrams
7404
