TA62L-ACMESW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )2T,3T#

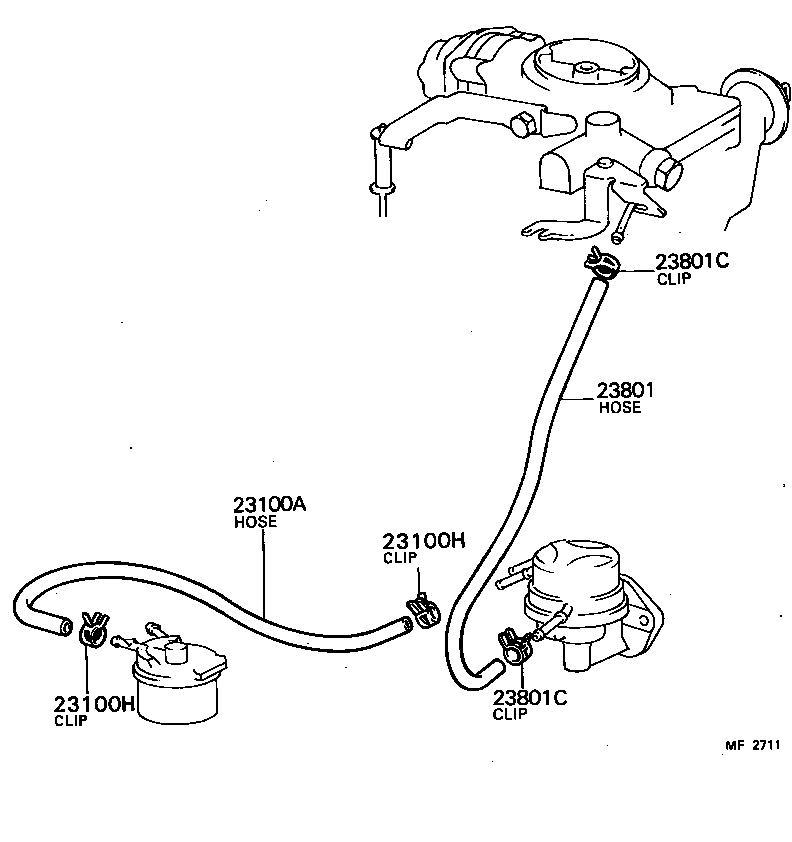

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801C 23801C
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06030

2T,3T..TA6#

*H,L=280

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2T,3T#..TA6#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2T,3T#..TA6#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2T,3T#..TA6#

*H,L=300

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2T,3T#..TA6#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2T,3T#..TA6#

 2
