TA62L-ACMESW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )2T,3T#

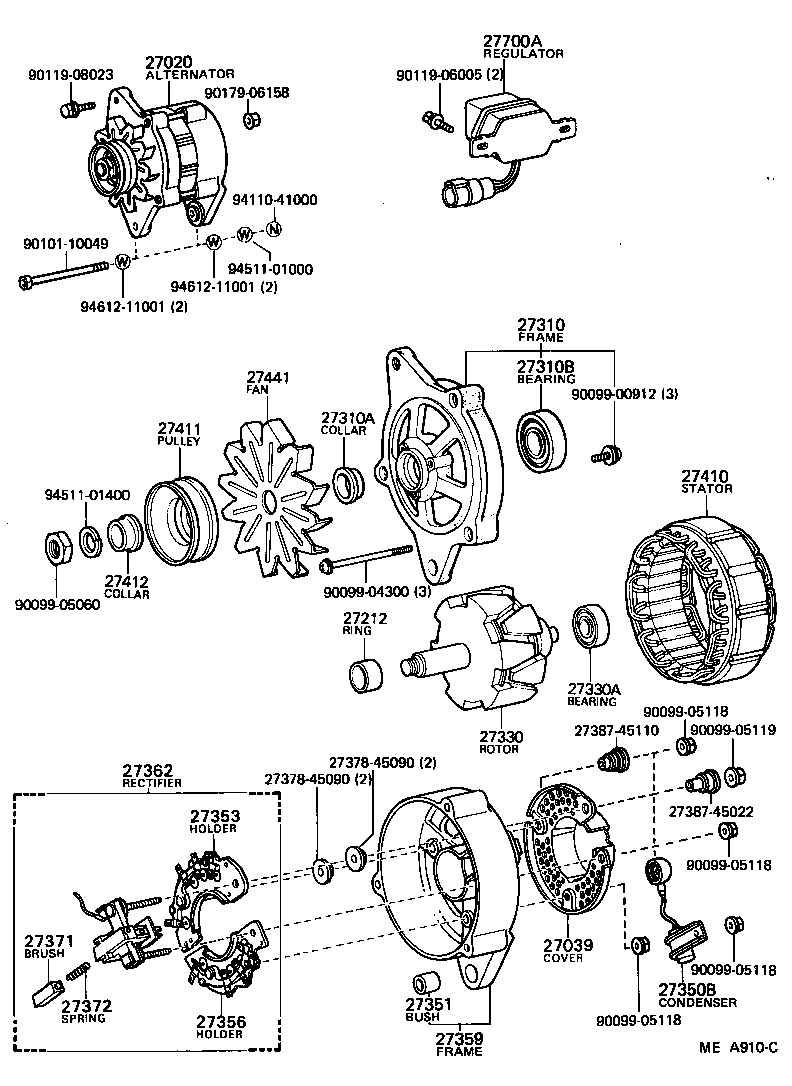

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9011906005 9011908023 9017906158 9411041000 9451101000 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-34021

2T,3T#..TA6#..LHD..EUR

12V 55A,12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

2T,3T#..TA6#..LHD..EUR

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

2T,3T#..TA6#

12V 50A,55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34050

2T,3T#..TA6#

12V 50A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

2T,3T#..TA6#

12V 50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

2T,3T#..TA6#

12V 50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

2T,3T#..TA6#

12V 50A,55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

2T,3T#..TA6#

12V 50A,55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2T,3T#..TA6#

12V 50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2T,3T#..TA6#

12V 50A,55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34021

2T,3T#..TA6#..LHD..EUR

12V 55A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34021

2T,3T#..TA6#..LHD..EUR

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

2T,3T#..TA6#

12V 50A,55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-34021

2T,3T#..TA6#..LHD..EUR

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2T,3T#..TA6#

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2T,3T#..TA6#

12V 50A,55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-45120

2T,3T#..TA6#..LHD..EUR

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

2T,3T#..TA6#

12V 50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

2T,3T#..TA6#

12V 50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

2T,3T#..TA6#

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63010

1C,2T,3T#..CA60,TA6#

12V 50A,55A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-06005
90119-08023
90179-06158
94110-41000
94511-01000
94511-01400
94612-11001
