TA60LG-AWMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

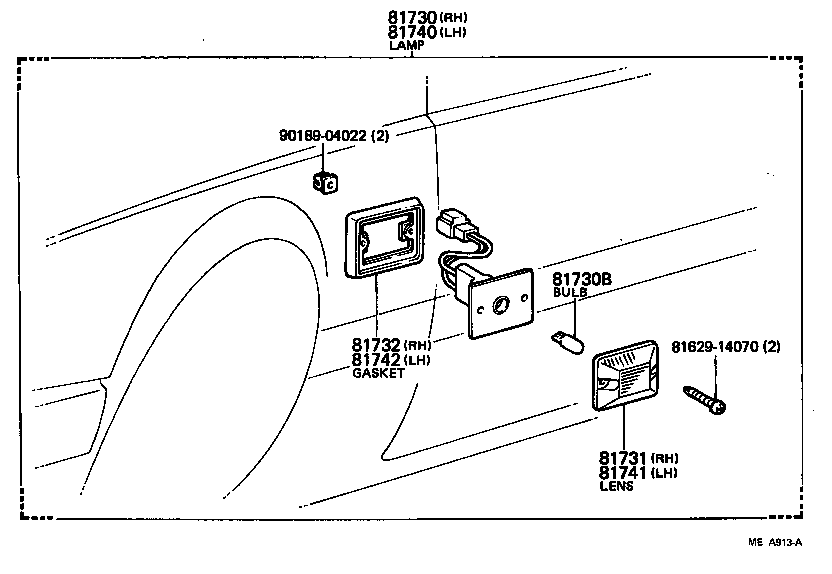

Click highlighted areas on diagram

diagram 8162914070 81730 81730B 81731 81732 81740 81741 81742 9018904022
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19355

CA60,TA6#..EUR

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-11050

CA60,TA6#..EUR

12V 5W,12V 5W

 2
99132-12050

CA60,TA6#..EUR

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14140

CA60,TA6#..EUR

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14140

CA60,TA6#..EUR

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-19355

CA60,TA6#..EUR

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-14140

CA60,TA6#..EUR

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14140

CA60,TA6#..EUR

 1
Common parts
81629-14070
90189-04022
