TA60LG-AWMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

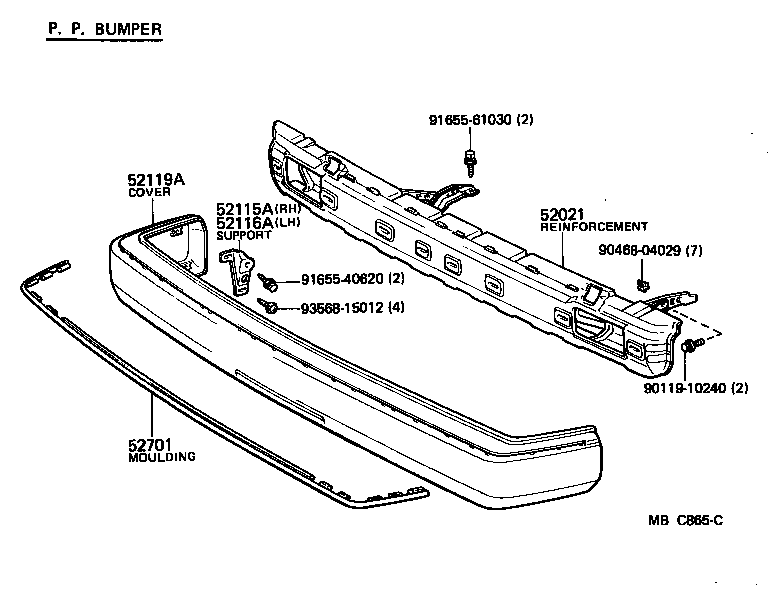

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52701 9011910240 9046804029 9165540620 9165561030 9356815012
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14060

CA60,TA6#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14061

CA60,TA6#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14041

CA60,TA6#

 1
52119A - COVER, FRONT BUMPER
52119-14080

CA60,TA60;TA62..EUG

W/O *HC

 1
52119-14090

CA60,TA6#..EUR

W/*HC

 1
52119-14080

CA60,TA6#

W/O *HC

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52711-14030

CA60,TA6#..DLX,XE

 1
Common parts
90119-10240
90468-04029
91655-40620
91655-61030
93568-15012
