TA60LG-AWMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )2T,3T#

Click highlighted areas on diagram

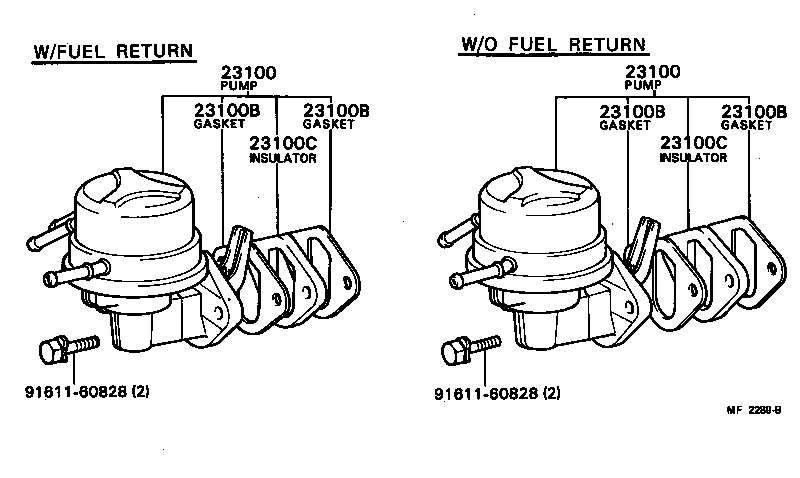

diagram 23100 23100 23100B 23100B 23100B 23100B 23100C 23100C 9161160828 9161160828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19116

2T,3T..TA6#..EUG

 1
23100-19105

2T,3T..TA6#..EUG

 1
23100 - PUMP ASSY, FUEL
23100-19116

2T,3T..TA6#..EUG

 1
23100-19105

2T,3T..TA6#..EUG

 1
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T#..TA6#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T#..TA6#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T#..TA6#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T#..TA6#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2T,3T#..TA6#

 1
23100C - INSULATOR, FUEL PUMP
90923-06001

2T,3T#..TA6#

 1
Common parts
91611-60828
