TA60LG-AWKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

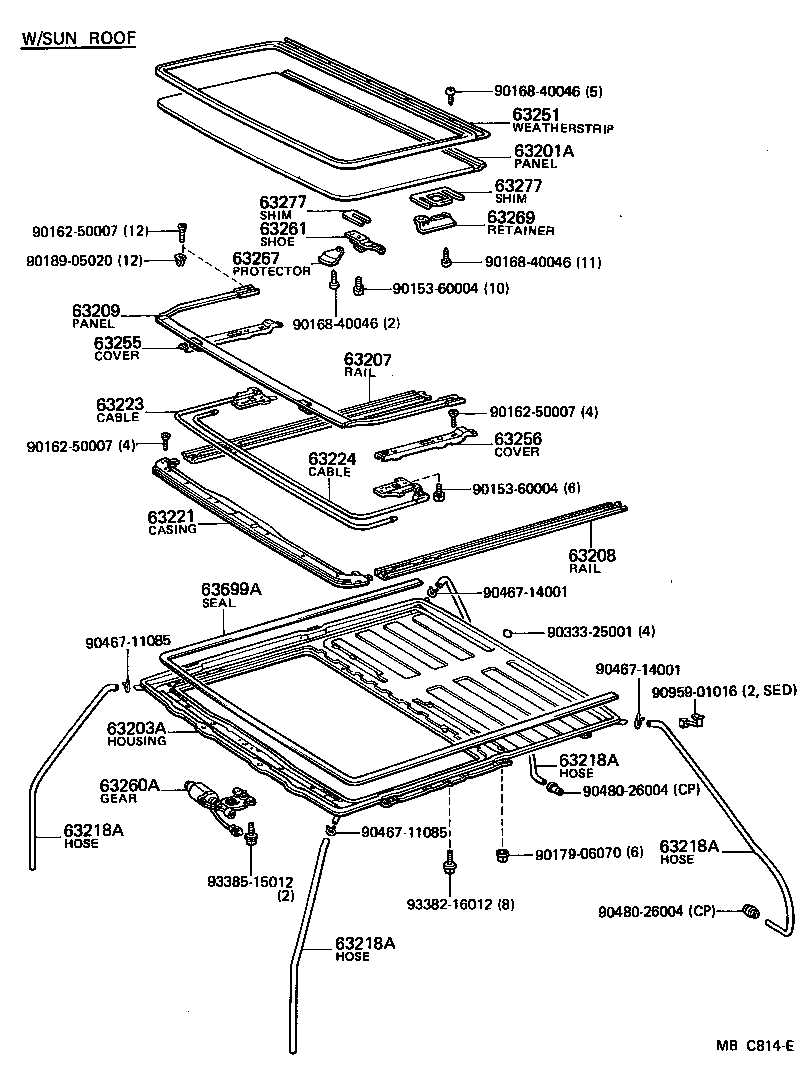

Click highlighted areas on diagram

diagram 63201A 63203A 63207 63208 63209 63218A 63218A 63218A 63218A 63221 63223 63224 63251 63255 63256 63260A 63261 63267 63269 63277 63277 63699A 9015360004 9015360004 9016250007 9016250007 9016250007 9016840046 9016840046 9016840046 9017906070 9018905020 9033325001 9046711085 9046711085 9046714001 9046714001 9048026004 9048026004 9095901016 9338216012 9338515012
Part # Description Qty Price
Common parts
90153-60004
90162-50007
90168-40046
90179-06070
90189-05020
90333-25001
90467-11085
90467-14001
90480-26004
90959-01016
93382-16012
93385-15012

(8108- )WG

Click highlighted areas on diagram

diagram 63104 63105 63111 63132 63133 9015960032 9015960032
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-91C01

CA60,TA6#..WG

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-91C01

CA60,TA6#..WG

 1
63111 - PANEL, ROOF
63111-91C01

CA60,TA6#..WG

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14030

CA60,TA6#..SED,WG

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-91C02

CA60,TA6#..WG

W/RR WIPER

 1
63105-91C01

CA60,TA60..WG

 1
63105-91C01

CA60,TA6#..WG

 1
Common parts
90159-60032
