TA60LG-AWKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8210)2T,3T ; (8210- )2T,3T..EUG ; (8303- )2T..LHD..4F..GEN

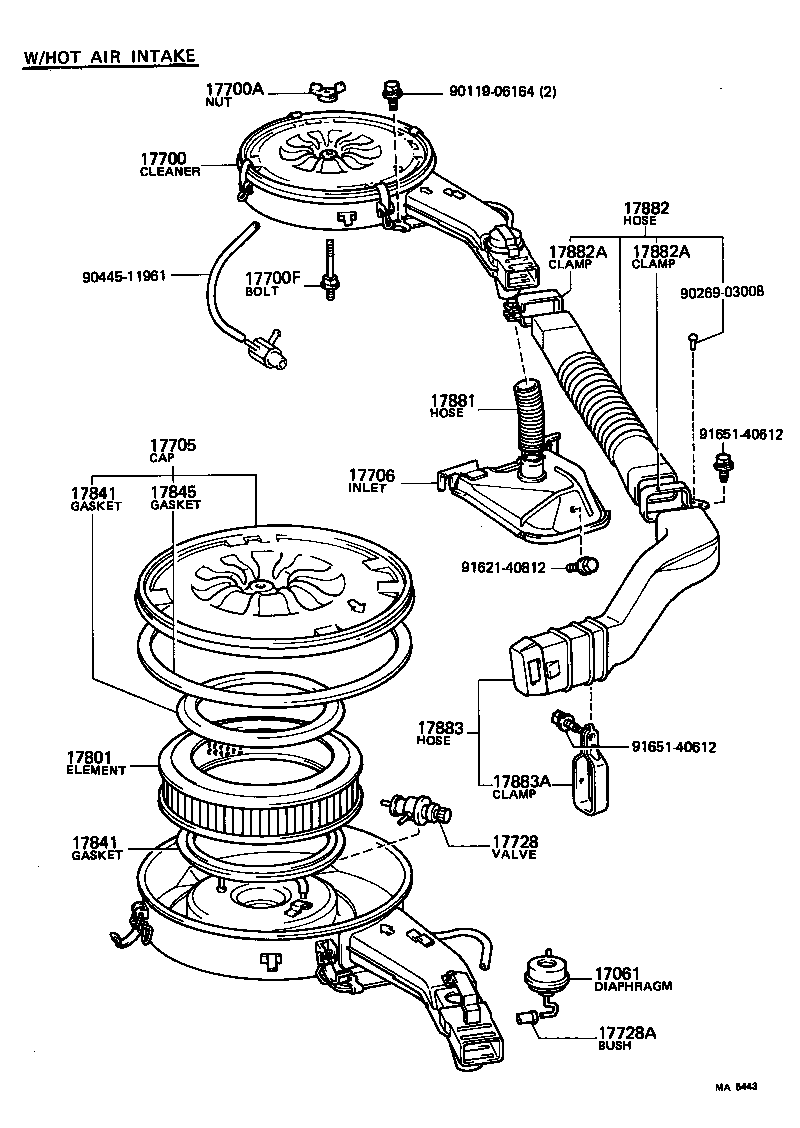

Click highlighted areas on diagram

diagram 17061 17700 17700A 17700F 17705 17706 17728 17728A 17801 17841 17841 17845 17881 17882 17882A 17882A 17883 17883A 9011906164 9026903008 9044511961 9162140812 9165140612 9165140612
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

2T,3T#..TA6#..EUR

 1
17700 - CLEANER ASSY, AIR
17700-26300

2T,3T..TA6#..EUG

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2T,3T#..TA6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

2T,3T#..TA6#

L=78,S=11&28

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-26080

2T,3T..TA6#

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-26020

2T,3T..TA6#..EUG

 1
17728 - VALVE, THERMOSTATIC
17728-26040

2T,3T..TA6#..EUG

 1
17728A - BUSH
90386-03001

2T,3T#..TA6#..EUR

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2T,3T#..TA6#

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2T,3T#..TA6#

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2T,3T#..TA6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-42010

2T,3T#..TA6#

*G,L=990

 1
17845-25010

2T,3T#..TA6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26020

2T,3T#..TA6#..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-14020

2T,3T#..TA6#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01019

2T,3T#..TA6#

HOSE SIDE

 1
90460-01003

2T,3T#..TA6#

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01019

2T,3T#..TA6#

HOSE SIDE

 1
90460-01003

2T,3T#..TA6#

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-14010

2T,3T#..TA6#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01018

2T,3T#..TA6#

 1
Common parts
90119-06164
90269-03008
90445-11961
91621-40812
91651-40612
