TA60LG-AWKDS (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

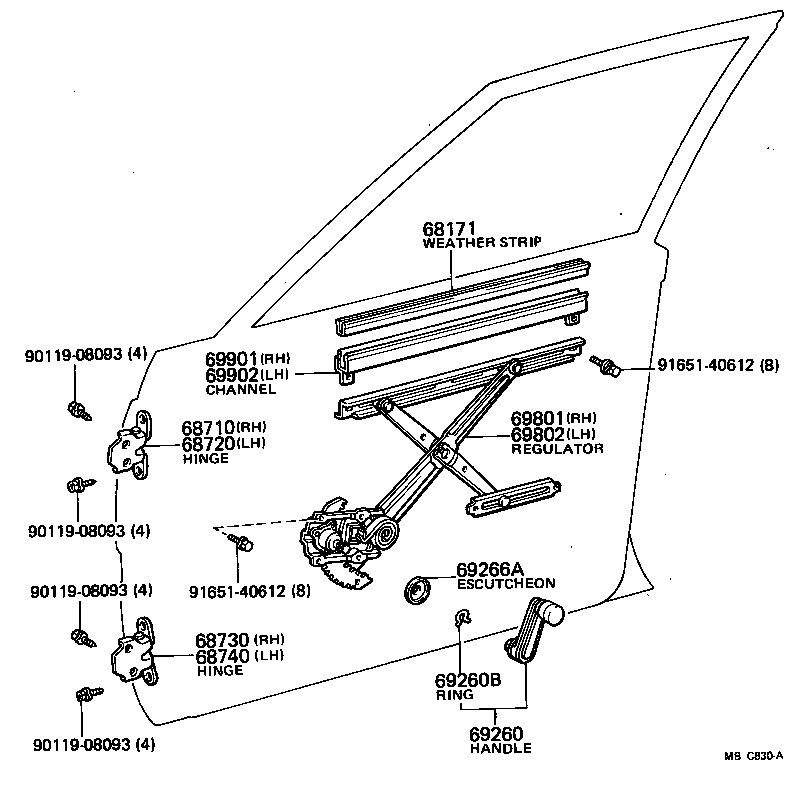

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69901 69902 9011908093 9011908093 9011908093 9011908093 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

CA60,TA6#..SED,WG

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14030

CA60,TA6#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14030

CA60,TA6#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14030

CA60,TA6#..SED,WG

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14030

CA60,TA6#..SED,WG

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402006

TA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ

DARK BROWN,BROWN,TRIM4#

 2
69260-1402004

TA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ

BLUE,BLUE,TRIM8#

 2
69260-1402001

TA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ

BLACK,BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

CA60,TA6#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-22010

CA60,TA6#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14120

CA60,TA6#..SED,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14110

CA60,TA6#..SED,WG

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-14070

CA60,TA6#..SED,WG

 1
69901-12080

CA60,TA6#..SED,WG

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-14070

CA60,TA6#..SED,WG

 1
69901-12080

CA60,TA6#..SED,WG

 1
Common parts
90119-08093
91651-40612
