TA60LG-AWHDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

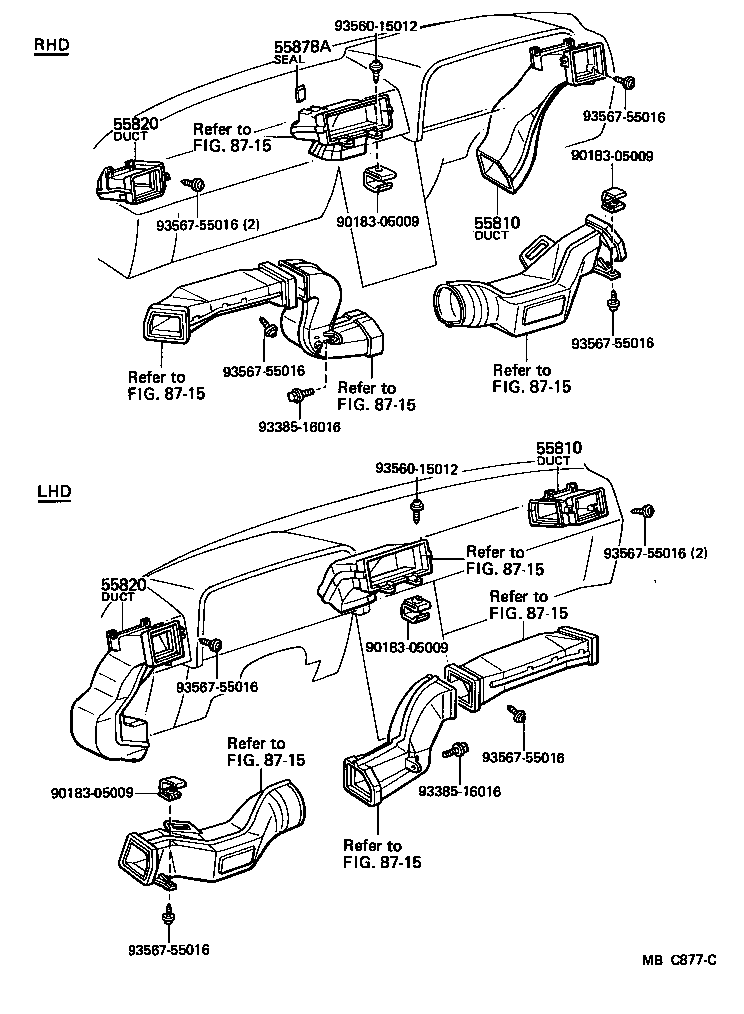

Click highlighted areas on diagram

diagram 55810 55810 55820 55820 55878A 8715 8715 8715 8715 8715 8715 8715 8715 9018305009 9018305009 9018305009 9018305009 9338516016 9338516016 9356015012 9356015012 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55089-14020

CA60,TA6#..LHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55089-14020

CA60,TA6#..LHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55084-14120

CA60,TA6#..LHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55084-14120

CA60,TA6#..LHD

 1
Common parts
90183-05009
93385-16016
93560-15012
93567-55016
Linked diagrams
8715
