TA60L-AEKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

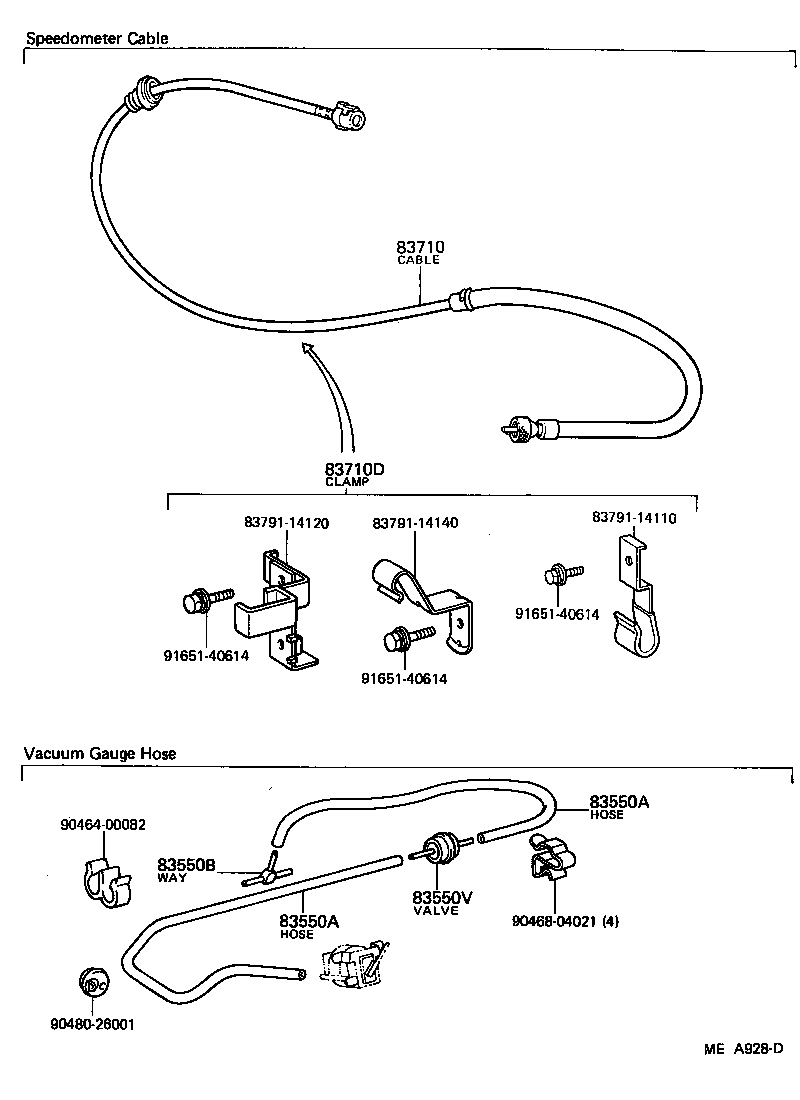

Click highlighted areas on diagram

diagram 83550A 83550A 83550B 83550V 83710 83710D 8379114110 8379114120 8379114140 9046400082 9046804021 9048026001 9165140614 9165140614 9165140614
Part # Description Qty Price
83550A - HOSE, ED MONITOR GAGE
95411-10060

TA6#..LHD..EUR

*H,L=600,MARK=#0

 1
90445-08221

TA6#..LHD..EUR

L=1140

 1
83550A - HOSE, ED MONITOR GAGE
95411-10060

TA6#..LHD..EUR

*H,L=600,MARK=#0

 1
90445-08221

TA6#..LHD..EUR

L=1140

 1
83550V - VALVE, VACUUM TRANSMITTING
90925-01028

TA6#..LHD..EUR

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-14460

TA6#..LHD..MTM

 1
83710-14540

TA6#..LHD

 1
83710-14540

TA60..LHD..(DLX,XE)

 1
83710D - CLAMP (FOR SPEEDOMETER CABLE)
83791-14140

CA60,TA6#..LHD

 1
83791-14120

TA6#

 1
Common parts
83791-14110
83791-14120
83791-14140
90464-00082
90468-04021
90480-26001
91651-40614

(8108- )LHD..EUR

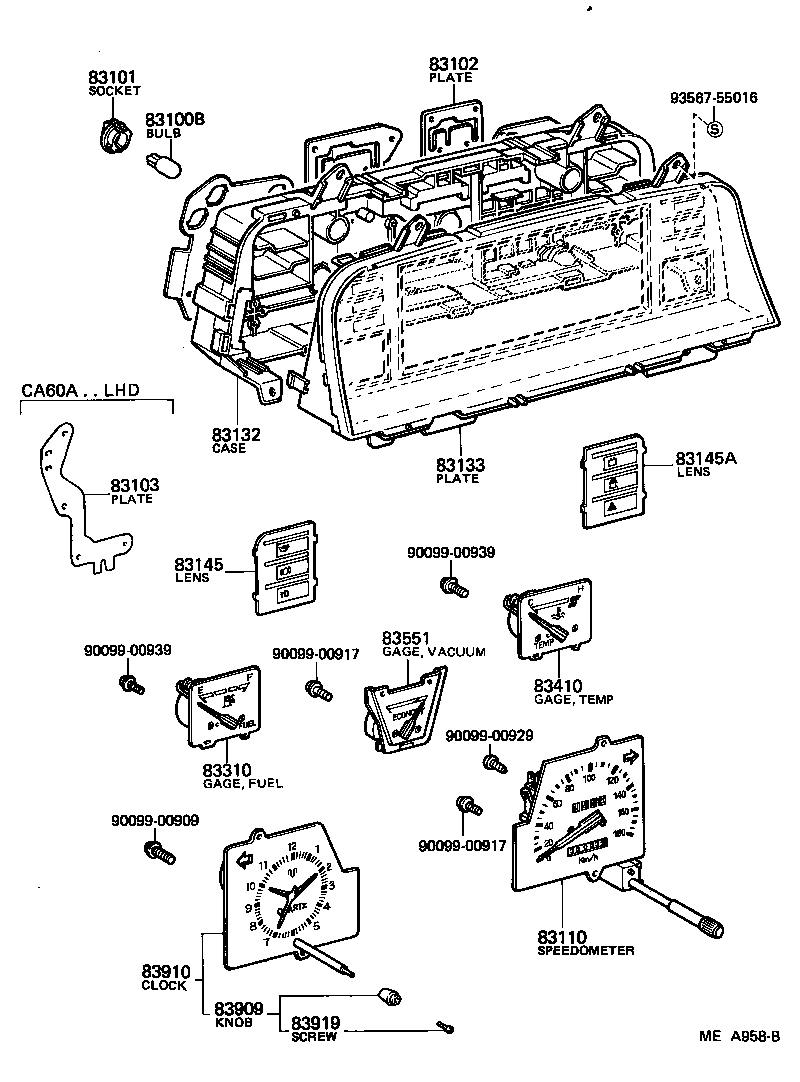

Click highlighted areas on diagram

diagram 83100B 83101 83102 83103 83110 83132 83133 83145 83145A 83310 83410 83551 83909 83910 83919 9009900909 9009900917 9009900917 9009900929 9009900939 9009900939 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CA60,TA6#

12V 3.4W

 14
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

CA60,TA6#

12V 3.4W

 14
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1B090

TA6#..LHD..(DLX,GL)

 1
83110 - SPEEDOMETER ASSY
83110-14570

TA6#..LHD..(DLX,GL)..EUR

KM

 1
83132 - CASE, COMBINATION METER
83132-1B030

TA6#..LHD..(DLX,GL)

 1
83132-1D410

TA6#..LHD..(DLX,GL)

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-14710

CA60,TA6#..LHD..DLX

 1
83133-14730

CA60,TA6#..LHD..(DLX,GL)

W/CLOCK

 1
83145 - LENS, METER, NO.1
83145-14030

CA60,TA6#..DLX,GL

 1
83145A - LENS, METER, NO.2
83145-14130

CA60,TA6#..LHD..(DLX,GL)..EUR

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14550

CA60,TA6#..LHD..(DLX,GL)

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-14870

CA60,TA6#..LHD..(DLX,GL)

 1
83244-14590

TA6#..LHD..(DLX,GL)

 1
83551 - GAGE, VACUUM
83551-14530

TA6#..LHD..(DLX,GL)..EUR

 1
83909 - KNOB, CLOCK
83909-14012

TA62;CA60,TA60..DLX,GL

ANALOGUE

 1
83910 - CLOCK ASSY
83910-14260

TA6#..LHD..(DLX,GL)..EUR

ANALOGUE

 1
83919 - SCREW, CLOCK
83919-14012

TA62;CA60,TA60..DLX,GL

ANALOGUE

 1
Common parts
90099-00909
90099-00917
90099-00929
90099-00939
93567-55016

(8108- )

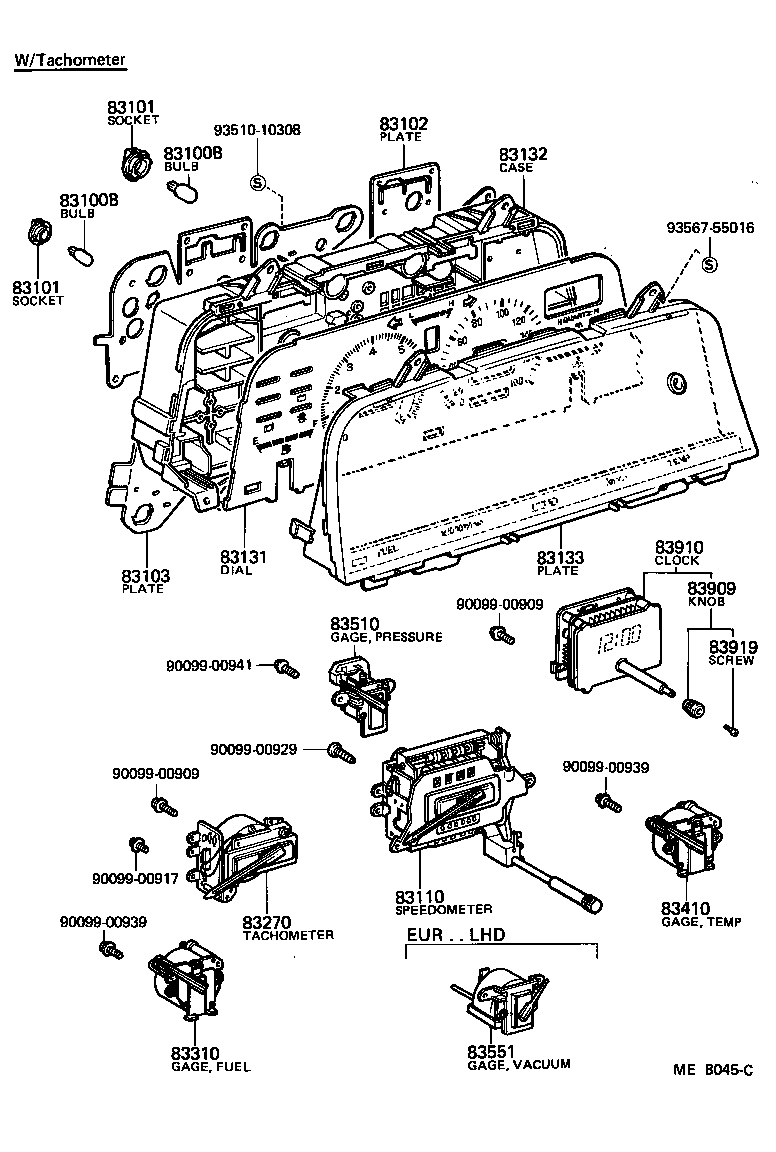

Click highlighted areas on diagram

diagram 83100B 83100B 83101 83101 83102 83103 83110 83131 83132 83133 83270 83310 83410 83510 83551 83909 83910 83919 9009900909 9009900909 9009900917 9009900929 9009900939 9009900939 9009900941 9351010308 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CA60,TA6#

12V 3.4W

 14
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CA60,TA6#

12V 3.4W

 14
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

CA60,TA6#

12V 3.4W

 14
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

CA60,TA6#

12V 3.4W

 14
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1B090

TA6#..LHD..(DLX,GL)

 1
83110 - SPEEDOMETER ASSY
83110-14570

TA6#..LHD..(DLX,GL)..EUR

KM

 1
83132 - CASE, COMBINATION METER
83132-1B030

TA6#..LHD..(DLX,GL)

 1
83132-1D410

TA6#..LHD..(DLX,GL)

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-14710

CA60,TA6#..LHD..DLX

 1
83133-14730

CA60,TA6#..LHD..(DLX,GL)

W/CLOCK

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14550

CA60,TA6#..LHD..(DLX,GL)

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-14870

CA60,TA6#..LHD..(DLX,GL)

 1
83244-14590

TA6#..LHD..(DLX,GL)

 1
83551 - GAGE, VACUUM
83551-14530

TA6#..LHD..(DLX,GL)..EUR

 1
83909 - KNOB, CLOCK
83909-14012

TA62;CA60,TA60..DLX,GL

ANALOGUE

 1
83910 - CLOCK ASSY
83910-14260

TA6#..LHD..(DLX,GL)..EUR

ANALOGUE

 1
83919 - SCREW, CLOCK
83919-14012

TA62;CA60,TA60..DLX,GL

ANALOGUE

 1
Common parts
90099-00909
90099-00917
90099-00929
90099-00939
90099-00941
93510-10308
93567-55016
